FB4 SE manual Version 0.91 Beta
26

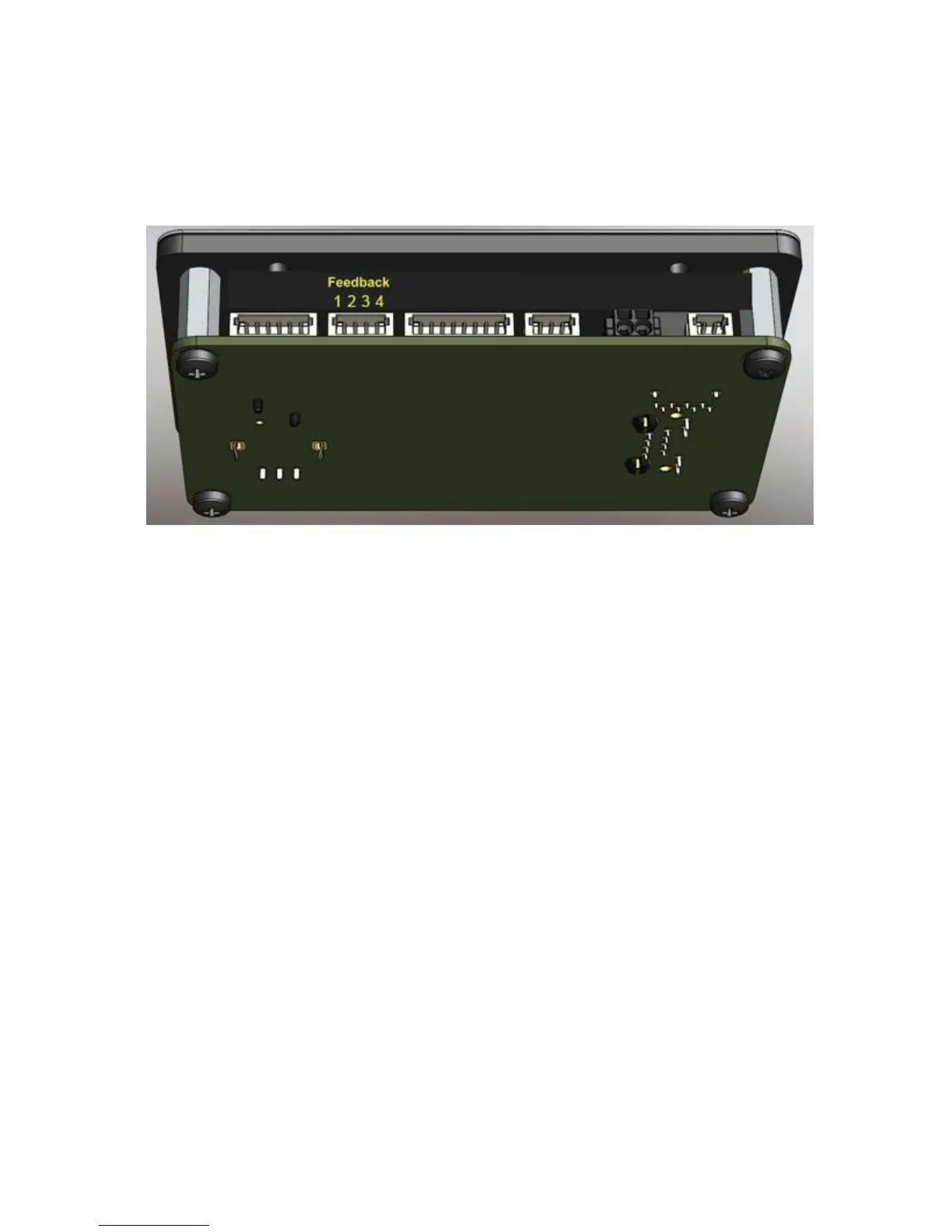

X-Y Scanner Position (feedback input) Connector
The FB4 can optionally monitor the X-Y scanner's position signals and
provide additional safety-related functions.
Feedback
Pin Signal name Voltage level
1 Y + -10 to +10
2 Y - -10 to +10
3 X - -10 to +10
4 X + -10 to +10
