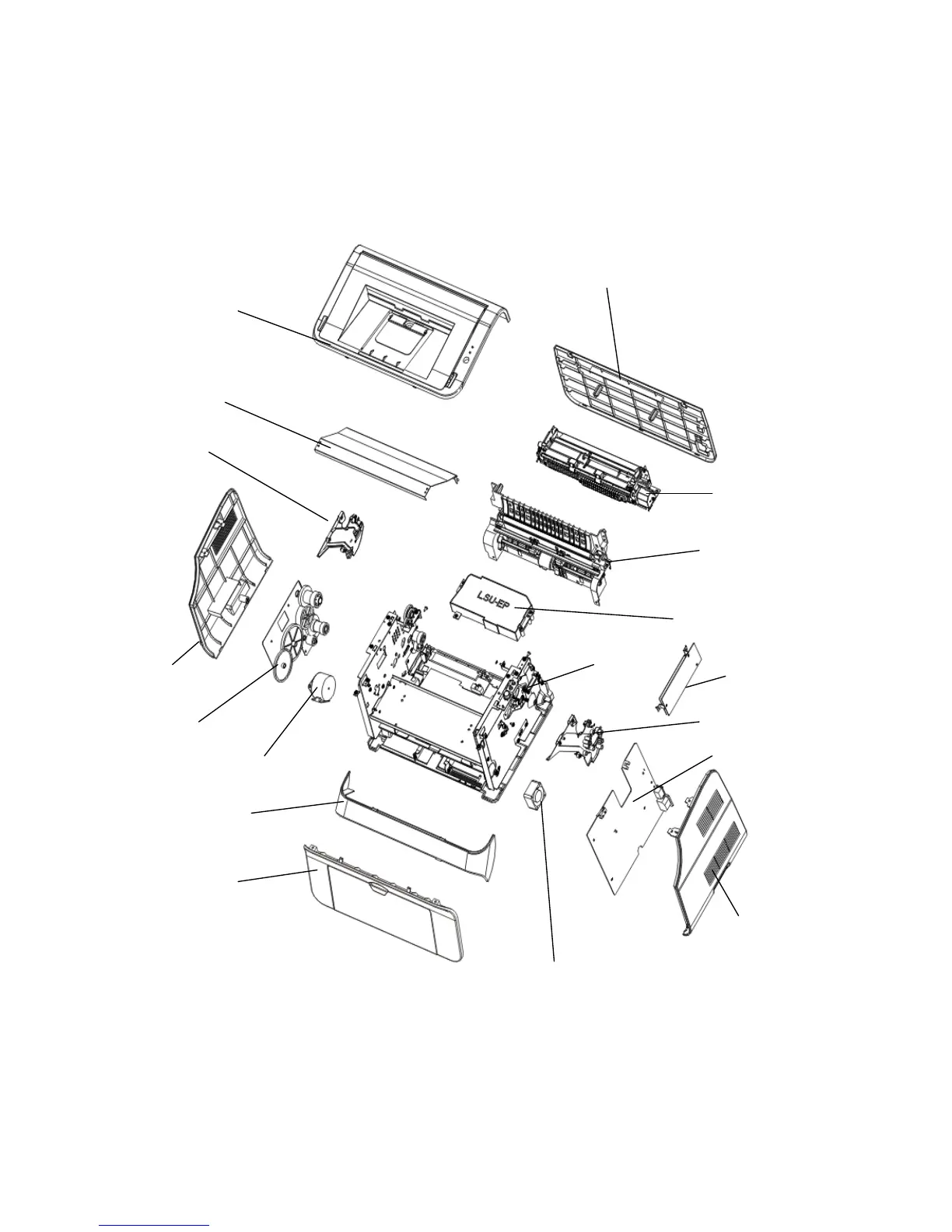

3.2.2 Printer structure
Front cover
Control panel
Motor
Gear assy.
Right side-cover
Right guide
Top protective cover of LSU
Top cover
Discharge tray
Rear cover
Fixing assy.
Transport Unit
LSU assy.
Printer frame
Data board
Left guide
High voltage board
Left side-cover
Fan
