H Assembling Your Nebuliser System
20 eFlow
®
rapid nebuliser system – Questions about your device? Contact your service partner

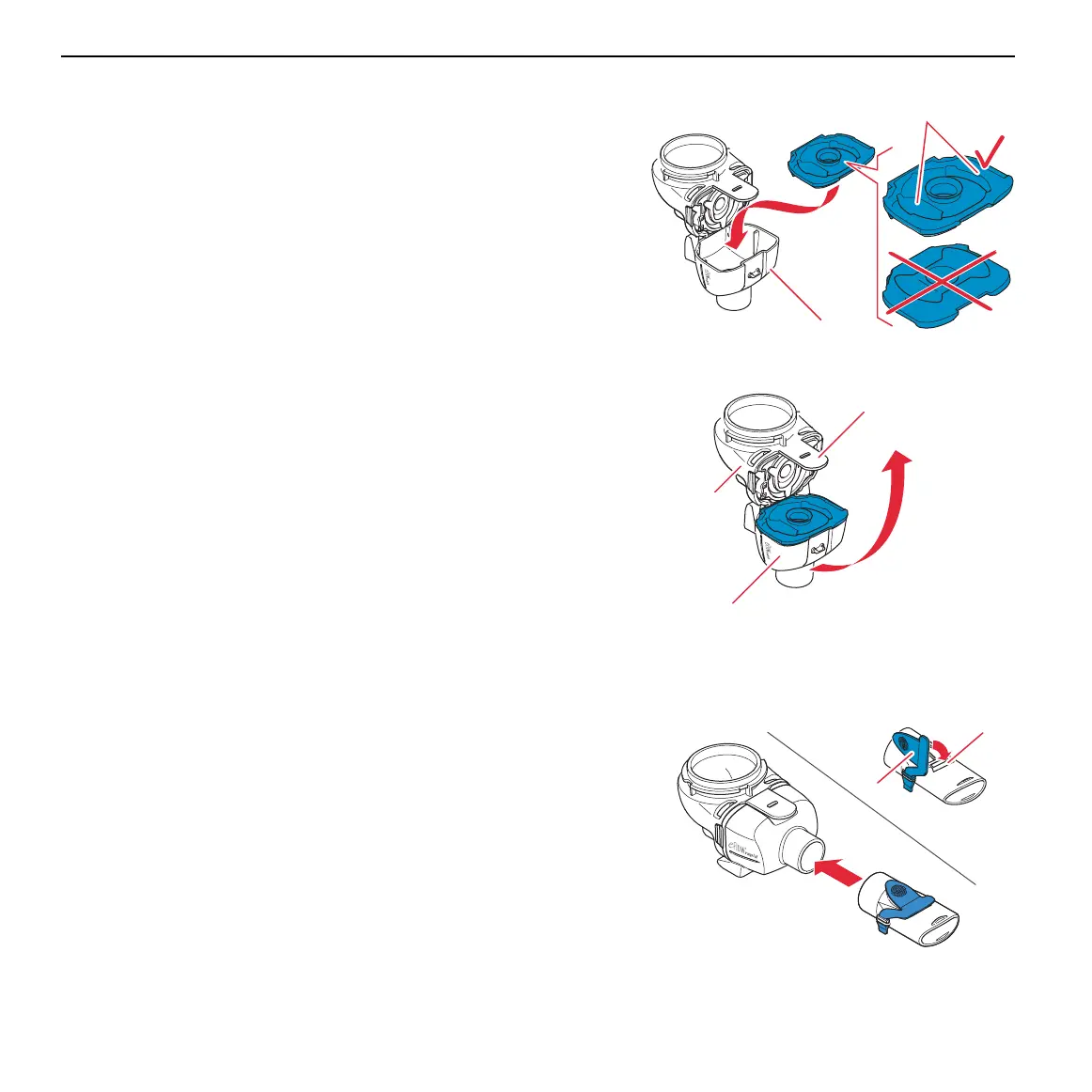

Step H3 Insert the blue inspiratory valve into the aerosol
chamber (a).
Make sure the flaps (b) are pointed down and
seated properly.
Fig. H3
Step H4 Close the nebuliser handset by pushing the
aerosol chamber (a) together with the medication
reservoir (b).
You should hear a slight snap as the tab (c)
latches onto the aerosol chamber.
If you do not hear and feel a slight snap, open the
nebuliser handset and check that the blue
inspiratory valve is seated properly.
Fig. H4
Step H5 Attach mouthpiece to the nebuliser handset.
Make sure the blue expiratory valve (a) is pressed
into the slot of the mouthpiece (b).
Push the mouthpiece straight onto the nebuliser
handset with the blue expiratory valve on the top of
the mouthpiece.
Fig. H5
b
a
a
b
c
a
b
