Parker Compax3 Series Installation Manual

Parker EME

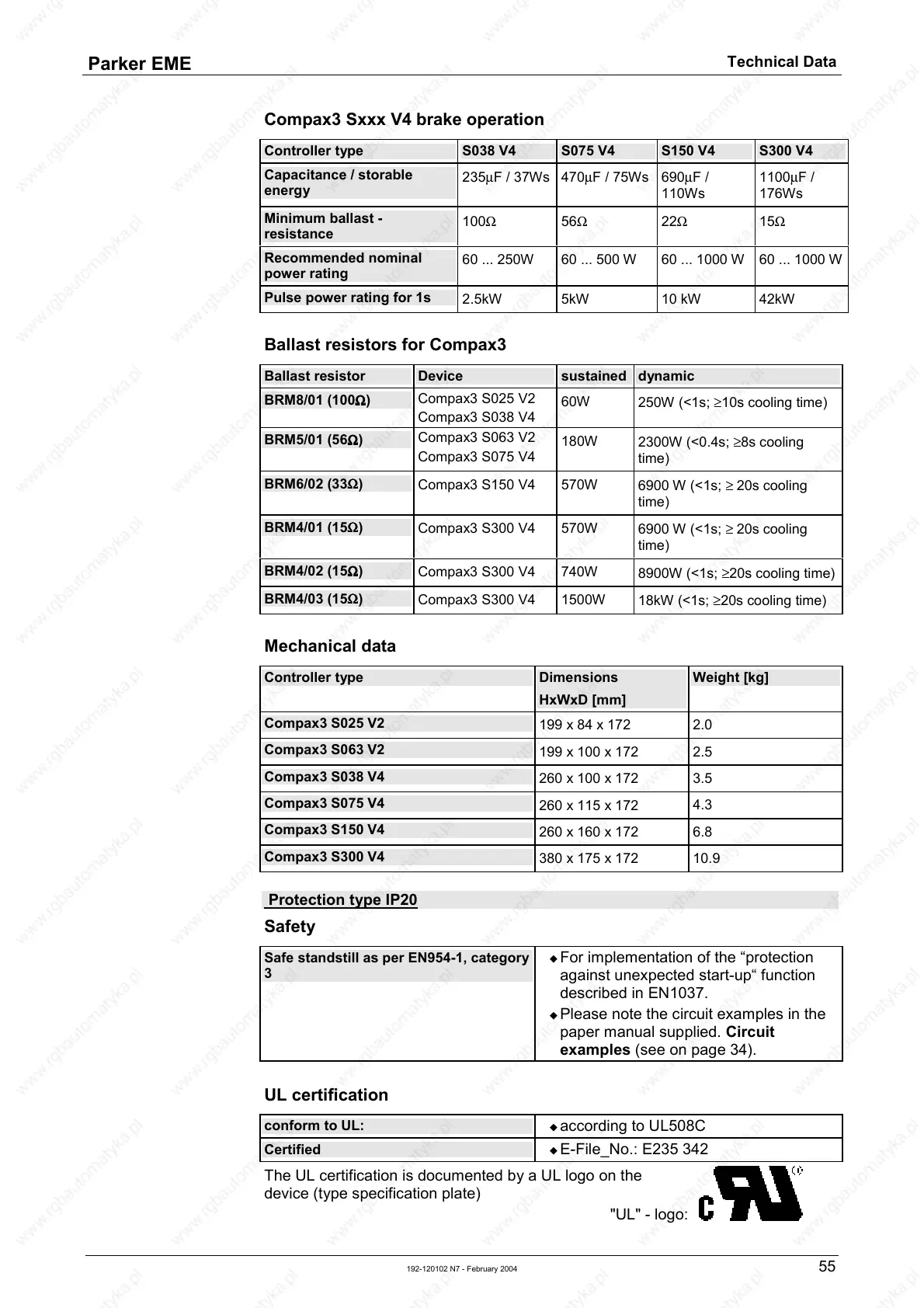

Technical Data
192-120102 N7 - February 2004 55
Compax3 Sxxx V4 brake operation
Controller type S038 V4 S075 V4 S150 V4 S300 V4
Capacitance / storable
energy
235µF / 37Ws 470µF / 75Ws 690µF /
110Ws
1100µF /
176Ws
Minimum ballast -
resistance
100Ω 56Ω 22Ω 15Ω
Recommended nominal
power rating
60 ... 250W 60 ... 500 W 60 ... 1000 W 60 ... 1000 W
Pulse power rating for 1s
2.5kW 5kW 10 kW 42kW
Ballast resistors for Compax3
Ballast resistor Device sustained dynamic
BRM8/01 (100Ω
ΩΩ
Ω)
Compax3 S025 V2
Compax3 S038 V4
60W
250W (<1s; ≥10s cooling time)
BRM5/01 (56Ω
ΩΩ
Ω)
Compax3 S063 V2
Compax3 S075 V4
180W
2300W (<0.4s; ≥8s cooling
time)
BRM6/02 (33Ω
ΩΩ
Ω)
Compax3 S150 V4 570W
6900 W (<1s; ≥ 20s cooling
time)
BRM4/01 (15Ω
ΩΩ
Ω)
Compax3 S300 V4 570W
6900 W (<1s; ≥ 20s cooling
time)
BRM4/02 (15Ω
ΩΩ
Ω)
Compax3 S300 V4 740W
8900W (<1s; ≥20s cooling time)
BRM4/03 (15Ω
ΩΩ
Ω)
Compax3 S300 V4 1500W
18kW (<1s; ≥20s cooling time)
Mechanical data
Controller type Dimensions
HxWxD [mm]
Weight [kg]
Compax3 S025 V2
199 x 84 x 172 2.0
Compax3 S063 V2
199 x 100 x 172 2.5
Compax3 S038 V4
260 x 100 x 172
3.5
Compax3 S075 V4
260 x 115 x 172
4.3
Compax3 S150 V4
260 x 160 x 172 6.8
Compax3 S300 V4
380 x 175 x 172 10.9
Protection type IP20
Safety
Safe standstill as per EN954-1, category
3
! For implementation of the “protection
against unexpected start-up“ function
described in EN1037.
! Please note the circuit examples in the
paper manual supplied. Circuit
examples (see on page 34).
UL certification
conform to UL:
! according to UL508C
Certified
! E-File_No.: E235 342
The UL certification is documented by a UL logo on the
device (type specification plate)
"UL" - logo:
