Peekel Instruments User manual PICAS V2.6.1
Page 22 of 59

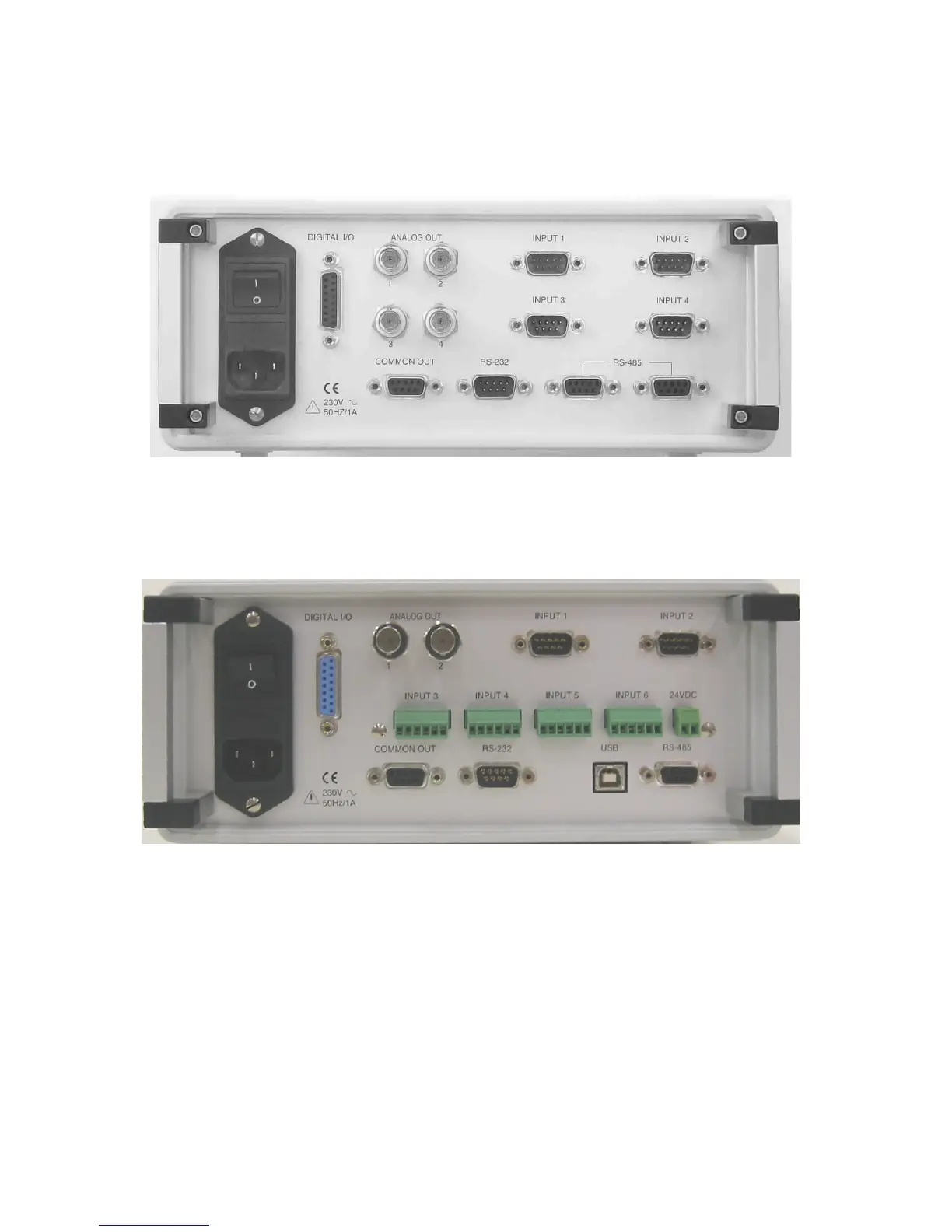

2.4.4 Rear panel connections
Rear panel of a PICAS with 4 Carrier frequency channels
Rear panel of a PICAS with 2 Carrier frequency channels, 4 analog DC-channels
and a USB interface.
