pellenc C3X - Fitting of the Blade and Its Pins

PRUNING SHEARS C3X
26_176804-B
6.8.2. FITTING OF THE BLADE AND ITS PINS
Note
To remove the blade, the pins and change the worn parts, see 6.8.1. Removal of the blade and its pin, page
31.
Before fitting the blade and tool pins:
1. Make sure the tool is switched off.
See 5.5. Switching off the pruning shears, page 25.
2. Make sure the battery is disconnected from the tool.
See 4.3. Disconnecting the battery from the tool, page 16.

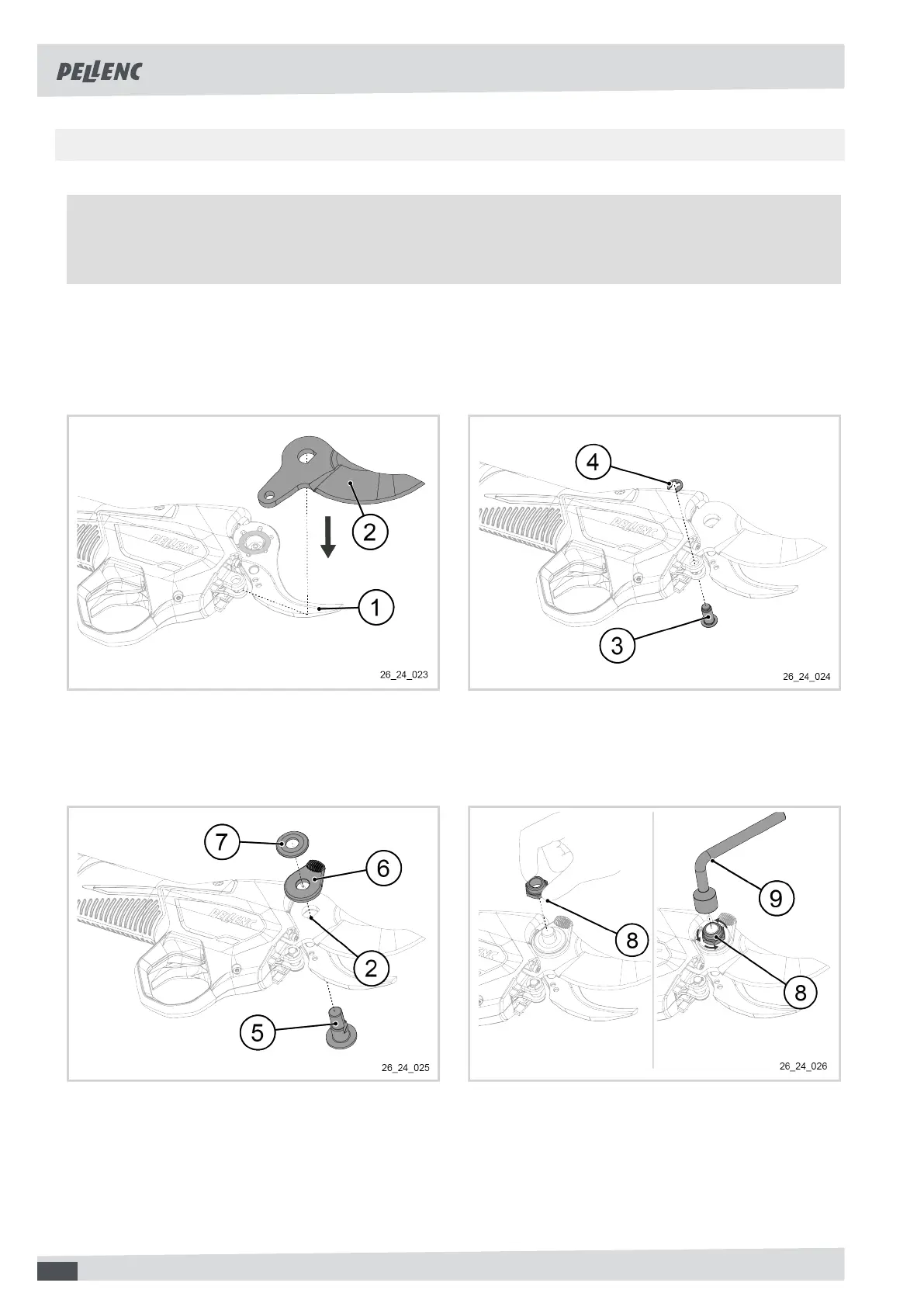

3. Grease the surface of the hook (1) in contact with
the blade (2) with the tube of grease supplied.
4. Fit the blade (2) on the hook (1).
5. Grease the clevis pin (3) with the supplied tube of
grease.
6. Install the clevis pin (3) on the tool link.
7. Fit a new circlip (4) with the sharp edge facing
outwards onto the clevis pin (3).
8. Align the flat on the blade pin (5) with the alignment
marker on the blade (2).
9. Fit the blade pin (5).
10. Replace the knurled locking washer (6),
11. then the washer (7).
12. Fit the nut (8) on the blade pin.
13. Tighten the nut (8) using the spanner provided (9).
See 6.5. Check the tightness of the blade, page 30.
32
