BRUSH CUTTER EXCELION 2 DH
53_153238-A

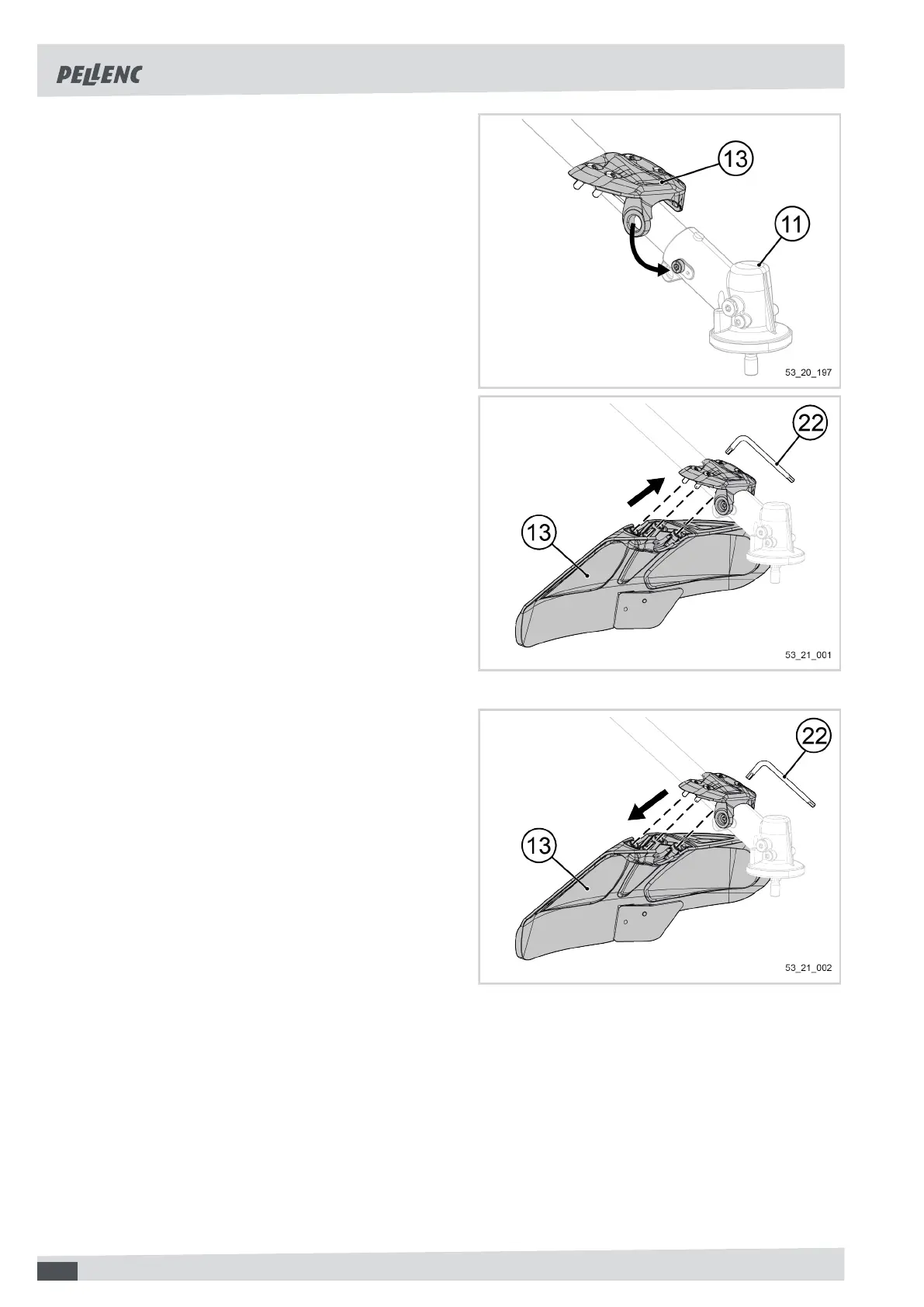

Fitting the standard safety guard
1. Fit the eyelet located on the upper part of the safety
guard (13) on the top screw of the angle gears (11).
2. Fit the lower part of the safety guard (13) by aligning
the screw marks.
3. Screw the 4 screws in place with the Torx 25 key (22)
to lock the position of the safety guard (13).
Dismounting the standard safety guard
1. Unscrew the 4 screws which lock the position of the
safety guard (13) using the Torx 25 key (22).
2. Remove the lower part of the safety guard (13).
22
