pellenc EXCELION 2 DH - Fitting;Dismounting the City Cut on the Tool

BRUSH CUTTER EXCELION 2 DH
53_153238-A
4.4.6. FITTING/DISMOUNTING THE CITY CUT ON THE TOOL
Attention
Before any intervention on the tool, stop the machine completely and disconnect the battery. To
consult the procedure for switching off your tool, refer to Section 5.1.2, « Stopping the tool ».
Wear safety gloves. Handling of sharp elements.

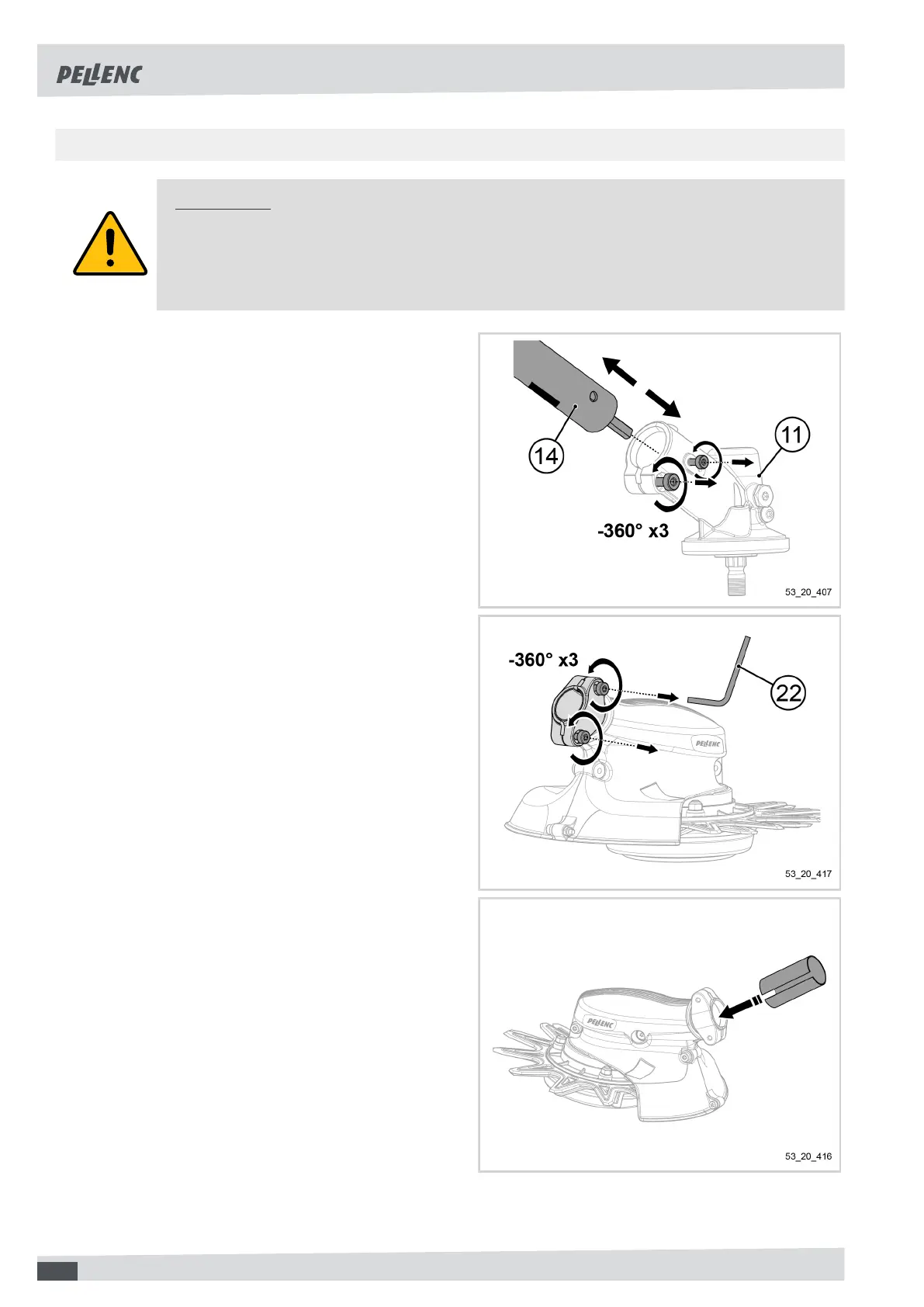

Fitting
1. Unscrew the two screws on the angle gear (11)
mounted on the tool.
2. Take the transmission shaft (14) out of its housing.
3. Remove the angle gear (11).
4. Unscrew the two screws on the CITY CUT using the
TORX 25 (22) wrench supplied with your tool.
5. Insert the ring supplied with your CITY CUT.
36
