BRUSH CUTTER EXCELION 2 DH
53_153238-A

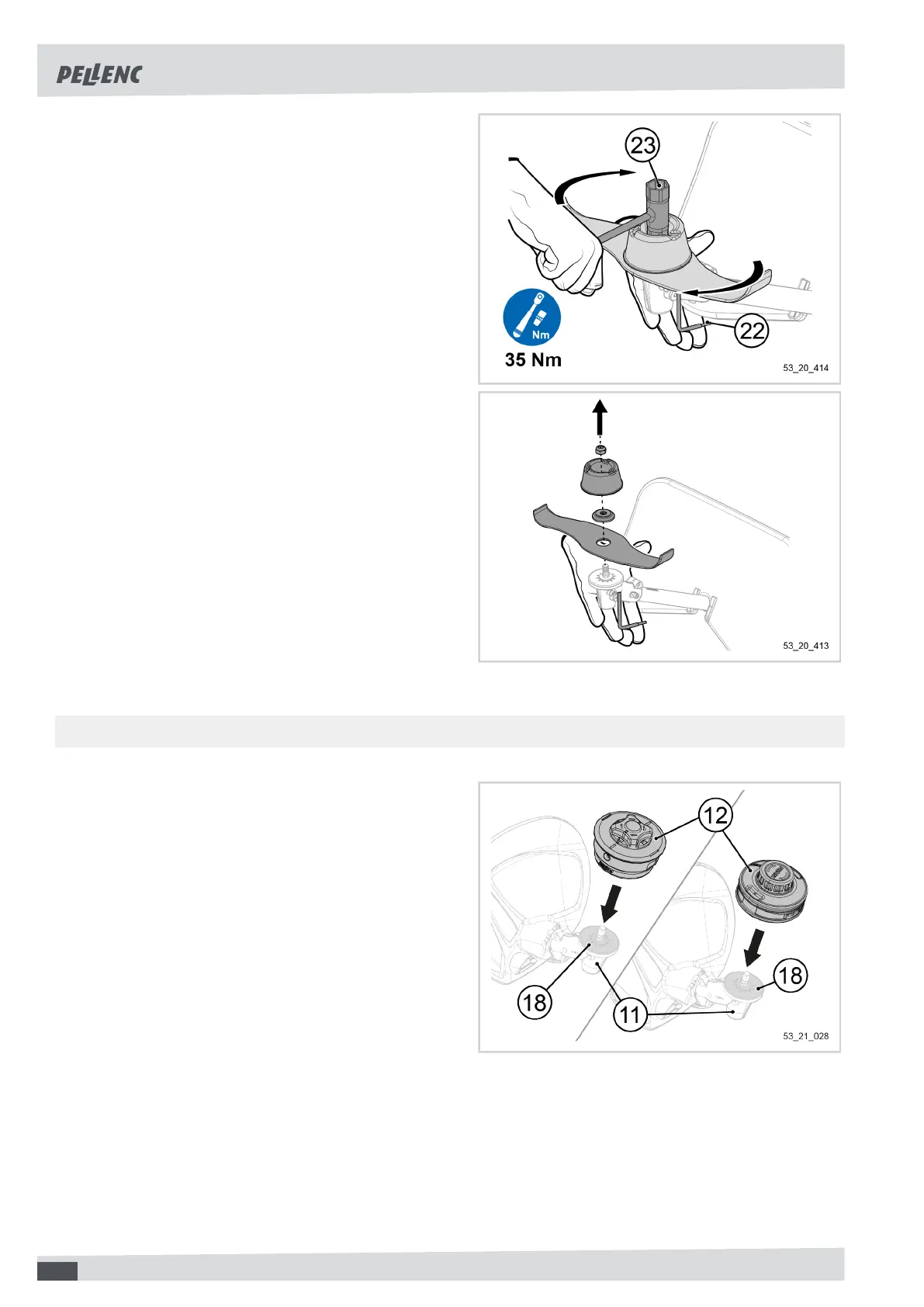

Dismounting the mulching blade
1. Insert the Torx 25 wrench (22) supplied with your tool
into the hole on the angle gear.
This action will allow the position of the motor shaft
and the support washer to be locked.
2. Using the special EXCELION 2 wrench (23) supplied
with your tool, unscrew the nut clockwise while hol-
ding the protective bowl.
3. Remove:
• the mulching blade
• the blade locking washer
• the specific protective bowl delivered with the Mul-
ching Kit (ref.: 57277)
• the bowl retaining nut.
4.4.3. FITTING/DISMOUNTING OF THE TAP CUT 2 / TAP CUT 3
Fitting the TAP CUT 2 / TAP CUT 3 onto the tool
1. Check that the anti-vegetation protection washer
(18) is present on the angle gear (11).
2. Fit the TAP CUT (12) on the angle gear (11).
28
