BRUSH CUTTER EXCELION 2 DH
53_153238-A

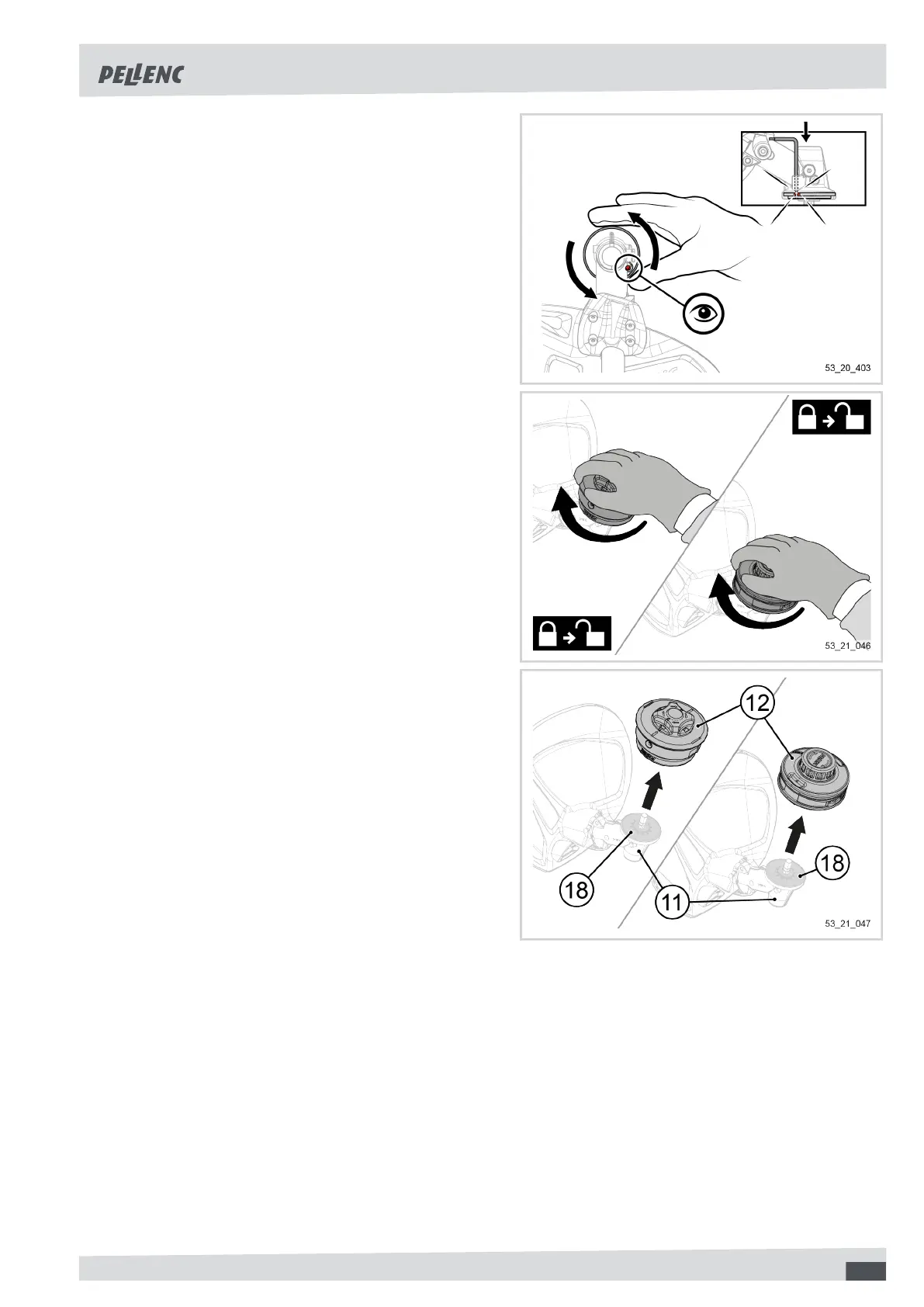

Dismounting the TAP CUT 2 / TAP CUT 3 from the tool
1. Insert the Torx 25 key (22) into the hole on the angle
gear.
2. If necessary, turn the head slightly so that the Torx
25 wrench (22) also fits into the corresponding hole
on the cutting head.
This action will allow the position of the motor shaft
and the support washer to be unlocked.
3. Turn the head clockwise to unlock the position.
4. Unscrew the head.
5. Remove the TAP CUT (12) from the angle gear (11).
6. Take care not to lose the anti-vegetation protection
washer (18).
