EASYTOUCH
®
PL4/PSL4 Control System Installation Guide
EasyTouch
®
PL4/PSL4ControlSystemCircuitBoard
Connections
The EasyTouch PL4/PSL4 Control System main circuit board is mounted in the top of the Power
Center.Thecircuitboardprovidesthevoltageconnectionstothelterpump,heater,auxiliary
relays,motorizedvalvesandfortemperaturesensors.TheCOMportontheEasyTouchPL4/PSL4
circuit board provides connection to the EasyTouch PL4/PSL4 control system indoor control panel,

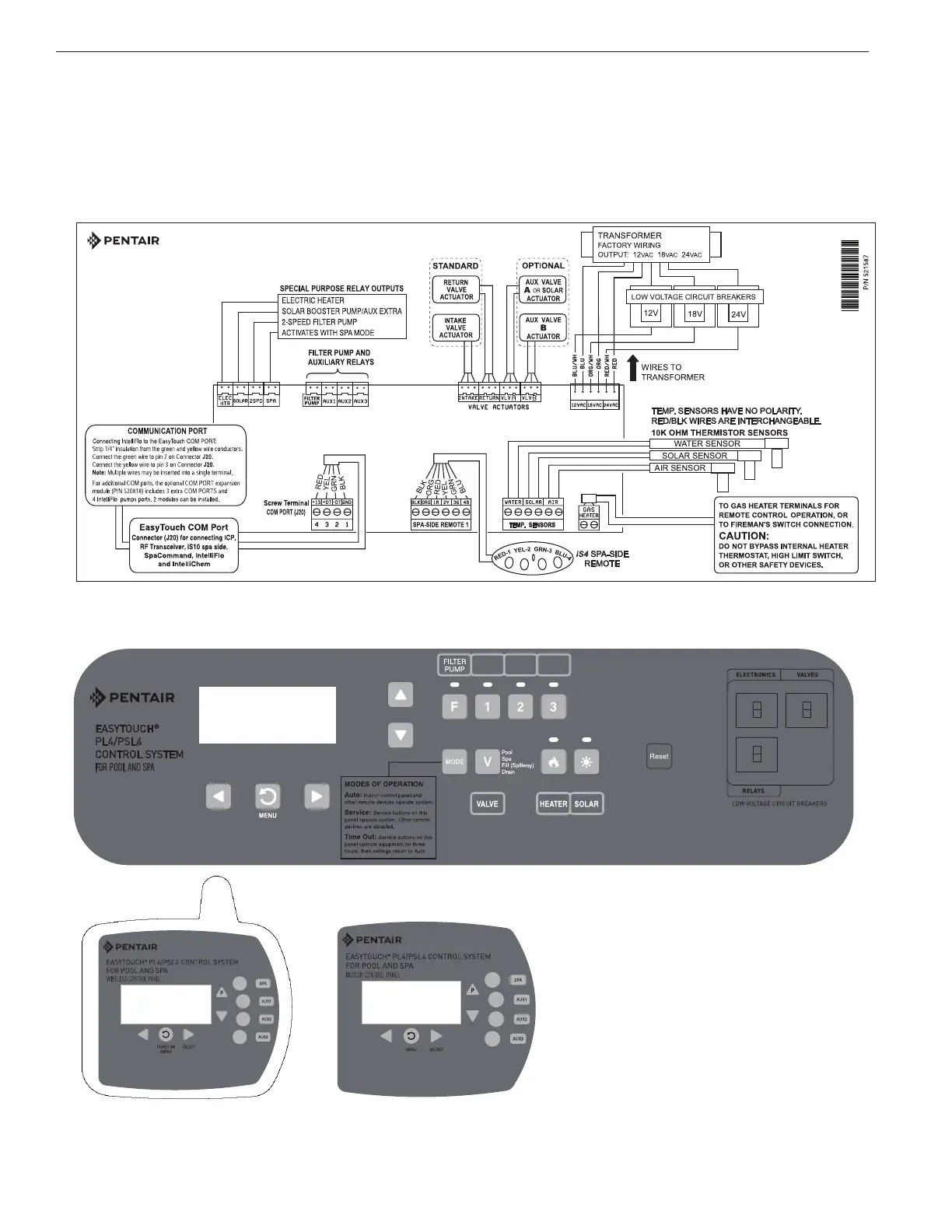

PL4/PSL CONTROL SYSTEM
FOR POOL AND SPA
WIRING DIAGRAM
SharedEquipmentSystemsModelorSingleBodySystems(novalves)
Indoor Control Panel (3 AUX circuits)
(P/N520549-Optional)
Wireless Controller (3 AUX circuits)
(P/N 520547) (Optional)
Pantone Colors:
429 Buttons
431 Background
EasyTouch
®
PL4/PSL4
®
Control System Outdoor Control Panel
