Pentair EASYTOUCH PL4 Installation Guide

EASYTOUCH
®
PL4/PSL4 Control System Installation Guide
EASYTOUCH
®
PL4/PSL4 Control System Installation
1
Introduction
The are two EasyTouch PL4/PSL4 Control System models available:
• EasyTouch
Pool Lite 4 Circuit (PL4 - Four circuit pool only system)
• EasyTouch
Pool and Spa Lite 4 Circuit (PSL4 - Four circuit pool and spa shared equipment
system)
Your EasyTouch PL4/PSL4 Control System can control high voltage (120 VAC / 240 VAC)
equipment, automatic valve actuators, pumps, lighting, a conventional heater or a solar heating
system, heat pump, and the optional IntelliChlor
®
Salt Chlorine Generator (SCG) and IntelliChem
®
Water Chemistry Controller.
Pool and spa service operations can be manually controlled from the Outdoor Control Panel located
in the Power Center at the pool equipment pad.
Also available are the optional Indoor Control Panel, Wireless Controller, iS4 Spa-Side Remote, and
the QuickTouch
®
Remote Controller for complete control of pool and spa operations from inside you
home or outside around your pool area. The Power Center dimensions are
20” H x 17” W x 5¼” D.
EasyTouch
®
PL4/PSL4 Control System

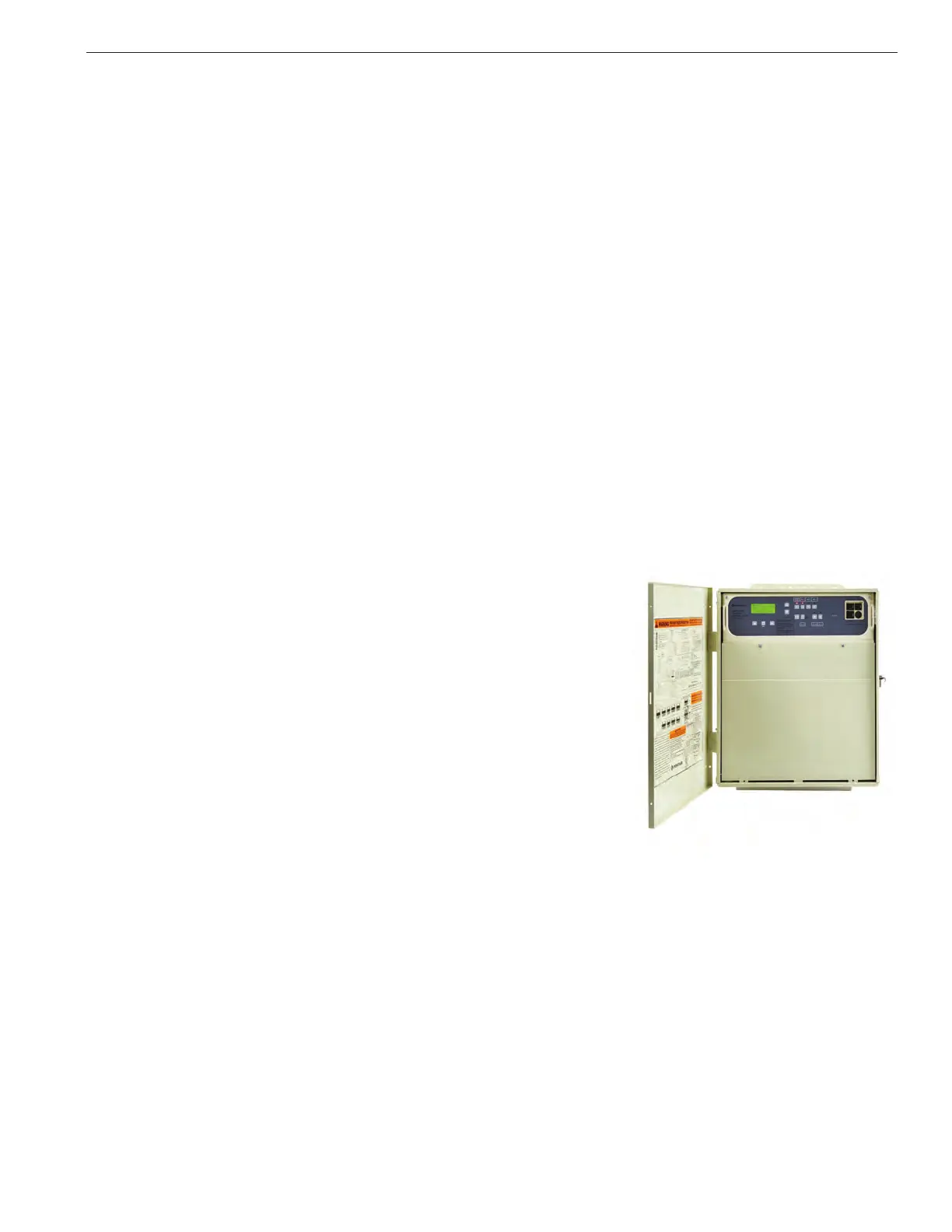

Power Center Overview
EasyTouch PL4/PSL4 Control System Power Center
Description
• Dimensions:20”Hx17”Wx5-1/4”D
• Includesthree25AMPHPrelays
• 120/240VACtransformerwithsecondarysidecircuitprotection.
• Providesamplespaceforallhighandlowvoltagewiringneeds.
• Multipleknockoutsfordifferentsizesofconduitaresupplied
• GFCIsideknockout.
• ThePowerCenterenclosureisusedwithexternalcircuit 
breakers/sub-panel
Kit Contents
The following items are included in the Power Center kit. For Replacement Parts List see page 34.
• EasyTouchPL4/PSL4
Control System Power Center Enclosure.
• Relays:Qty.4
• Actuators:(Qty.2forPSL4ControlSystemonly)
• TemperatureSensor(allmodels):WaterSensorLongCable(Qty.1)(o-ringandhoseclamp)
Air sensor - Short cable (Qty. 1)
• WiringDiagramLabel-Toafxtotheinsidefrontdoor(seepowercenterdoor).
• Partsbag:Relayscrews(Qty.0,4,8,or10)labelsheet
• EasyTouchPL4/PSL4ControlSystemPowerCenterInstallationGuide(thismanual).To
download a PDF of this manual go to: http://www.pentairpool.com/pdfs/EasyTouchICPUG.pdf
• Foradditionalinformation,refertotheEasyTouchPL4/PSL4ControlSystemUser’sGuide
(P/N 522461).
EasyTouch
®
PL4/PSL4
Control System Power Center
