IntelliFloXF
™
and IntelliProXF
™
Variable Speed Pump Installation and User’s Guide
Union Adapter Installation

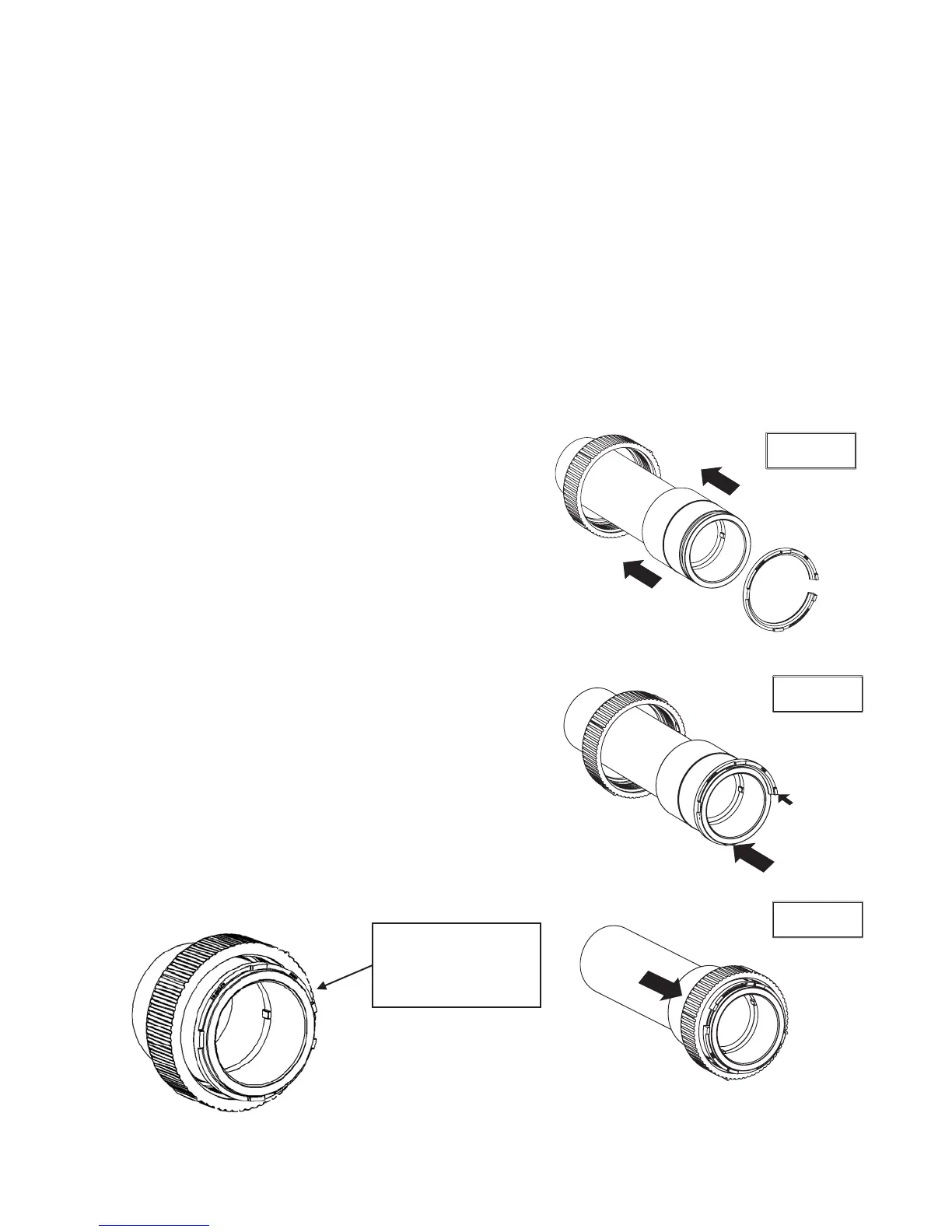

Installing the locking union onto the pump:
1. Glue the PVC union adapter fi tting to the
PVC pipe. The adapter accepts 2.5” PVC pipe
internally or a 3” PVC coupling externally.
Note: Be sure that the groove for the retainer
ring is on the end opposite your glue joint.
2. Slip the nut onto the fi tting.
3. Place the fl at side of the retainer ring against the
adapter on the grooved end.
4. Gently fl ex the locking clip union nut retainer ring
into its place in the groove on the adapter.
5. Start snapping it in at one end of the ring and
work your way around.
The tab features should point out away from the
nut and the glue joint towards the sealing surface.
6. Slide the nut over the ring and attach it to
the pump.
Step 1
Step 2
Step 3
Electrical
• Install all equipment in accordance with the National Electrical Code and all
applicable local codes and ordinances.
• A means for disconnection must be incorporated in the fi xed wiring in accordance
with the wiring rules.
• If the supply cord is damaged, it must be replaced to avoid a hazard. The supply cord
can be purchased separately from the manufacturer, its service agent or a
qualifi ed electrician.
Only install the
retainer ring with the
tab features pointing
away from the nut.
