14
IntelliFloXF
and IntelliProXF
Variable Speed Pump Installation and User’s Guide
Pump Operating Modes
The IntelliFloXF
and IntelliProXF
Variable Speed pumps can be programmed in three
different modes: Manual, Schedule, and Egg Timer. Speeds 1-4 can be programmed in all
three modes. Speeds 5-8 can only be programmed in Schedule mode since there are no
buttons on the control panel for Speeds 5-8. The default setting for Speeds 5-8 is “Disabled”.
Manual: Assigns a speed to one of the four Speed buttons on the control panel. This mode
can only be used for speeds 1-4.
To operate in Manual mode, press one of the four speed buttons and then press the
Start/Stop button. The pump will run the assigned speed for that speed button.
Egg Timer: Speeds 1-4 can be programmed to run for a duration of time once a speed
button is pressed. To operate in Egg Timer mode, press a speed button and then press
Start/Stop. The pump will run that speed for the set amount of time and then turn off.
Schedule: Program speeds 1-8 start and stop at a specifi c time during a 24 hour period.
Speeds programmed in Schedule mode will override any manually selected speed (speeds
set by manually pressing any of the speed buttons on the control panel).
Set Speeds in Manual or Egg Timer Mode (Speeds 1-4 Only)
1. Press Menu.
2. Use Up or Down arrows to scroll to “Speed 1-8”, then press Select.
3. Use Up or Down arrows to fi nd the speed (1-4) you wish to program.
4. Press Select. Speeds 1-4 default setting is Manual. To set a
speed in Manual mode, press the
Down arrow (“Set Speed”
will display) and press Select to change. Use the Up or Down
arrow to adjust speed.
5. Press Enter to save the new speed setting.
Continue below to Step 6 to set a speed in Egg Timer mode.
6. Press Select and scroll to “Egg Timer”. Press Enter.
7. Press the Down arrow to display “Time”.
8. Press Select and use arrow keys to adjust time.
9. Press Enter to save the new time setting.
10. Press Escape to exit.
Speed 1 (1-4)
Manual
Schedule
Egg Timer
Set Speed - Def
a
Set Speed
Set Start Time
Set Stop Time
Set Speed
Time
Speed 5 (5-8)
Schedule
Set Speed
Set Start Time
Set Stop Time
Disabled
Default: Disabled
12:15p
Egg Timer
Time
12:15p
Manual
Set Speed

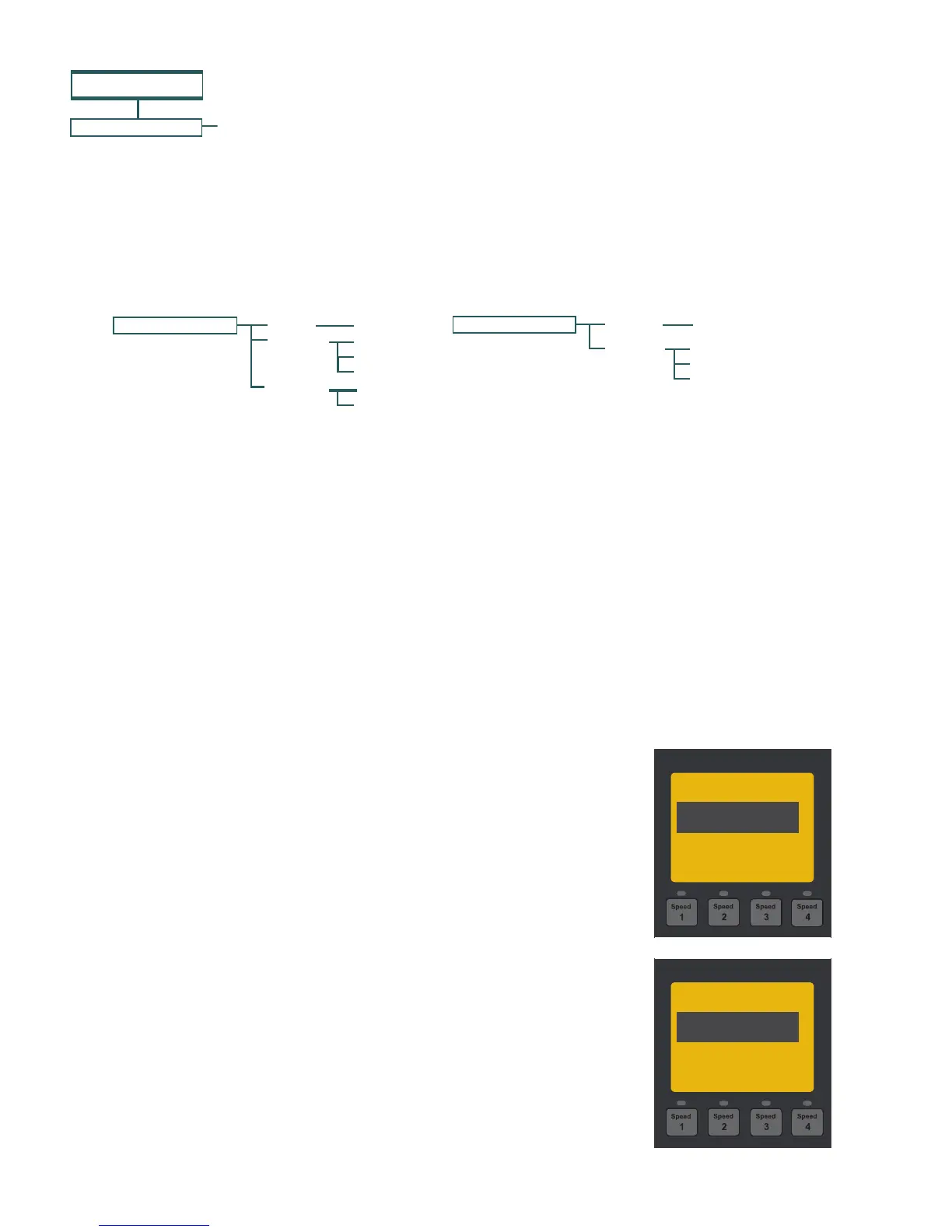

Pump Menu: Speeds 1-8
SPEED 1-8
MENU
