Pentair IntelliFloXF User Manual

9
IntelliFloXF
™
and IntelliProXF
™
Variable Speed Pump Installation and User’s Guide

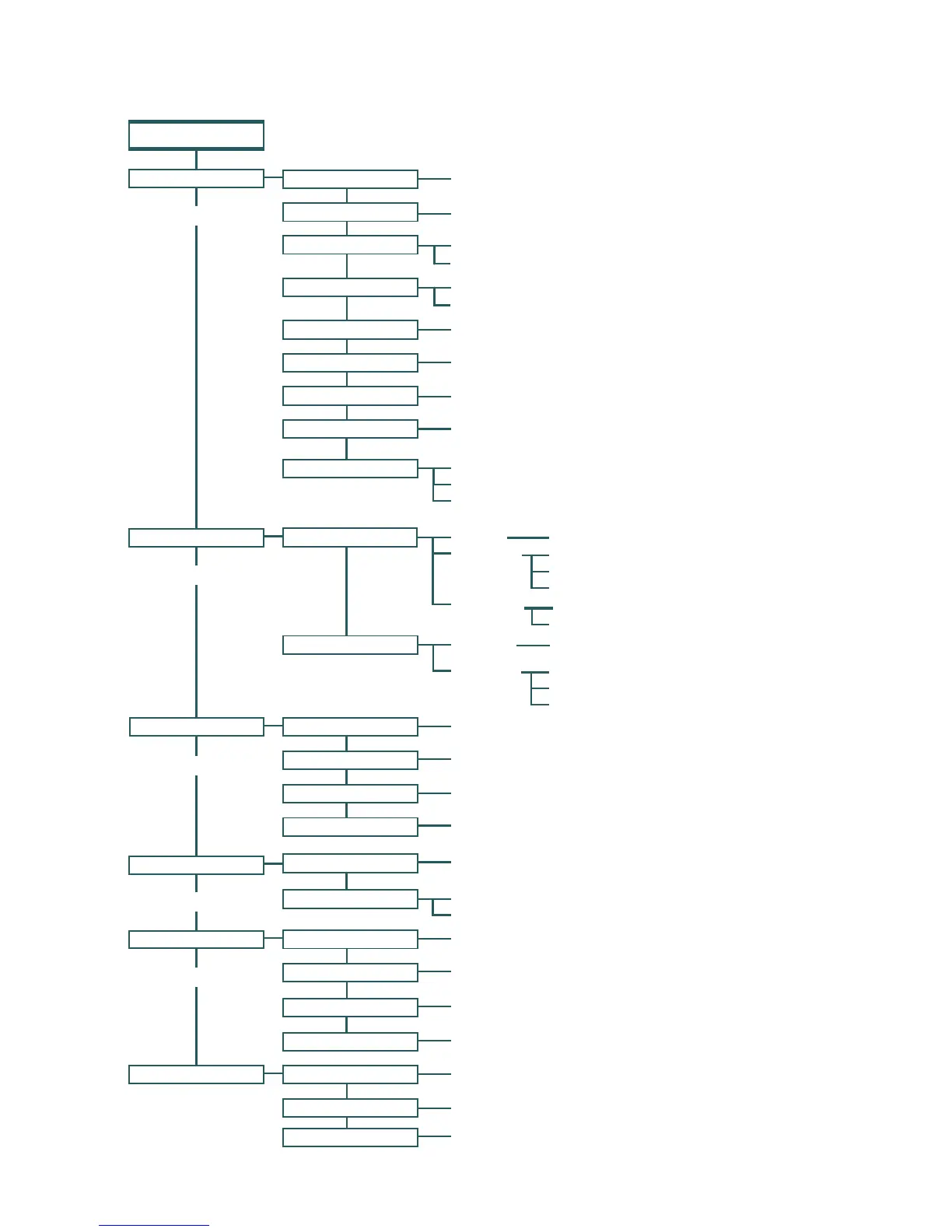

Operator Control Panel: Pump Menu Guide
Press MENU button to access pump menus.
(1-16) Default: ADDRESS 1
(hr:mm) Default: 12:00 AM
(450 RPM - 1700 RPM) - Default: 450 RPM
(1900 RPM - 3450 RPM) - Default: 3450 RPM
Set Speed - Default: MANUAL
Set Speed (1100 -3450 RPM) Default: 3450 RPM
Time (1 min. to 10 hrs.) Default: 10 minutes
Time Out Duration (1 min. to 10 hrs.) Default: 3 hours
(1 min. to 30 min.) Default: 11 minutes
English - Default: English
Password Time Out (1 min. - 6 hours) Default:10 minutes
Enter Password (xxxx) Default: 1234
Disabled/Enabled - Default: Disabled
40° F - 50° F (4.4° C - 10° C) Default: 40° F (4.4° C)
Set Speed (750 RPM - 3450 RPM) Default 1000 RPM
MENU
SETTINGS
Set AM/PM
AM/PM
24 hr.
Fahrenheit - Default: F°
C° Celsius
(1-5) Default 3
Pump Address
Set Time
Temperature Unit
Screen Contrast
Language
Set Min Speed
Set Max Speed
PASSWORD
SPEED 1-8
Speed 1 (1-4)
Manual
Schedule
Egg Timer
Set Speed
Set Start Time
Set Stop Time
Set Speed
Time
EXT CONTROL
Program 1
Speed - Default: 750 RPM
Speed - Default: 1500 RPM
Program 2
FEATURES
Quick Clean
Time Out
PRIMING
DISABLED/ENABLED
MAX PRIMING TIME
ANTI FREEZE
Disabled / Enabled - Default: Enabled
Program 3
Speed - Default: 2350 RPM
Speed - Default: 3110 RPM
Program 4
Speed 5 (5-8)
Schedule
Set Speed
Set Start Time
Set Stop Time
Disabled
Default: Disabled
Default: Enabled
(1 - 100%) Default: 1%
PRIMED SENSITIVITY
(1 second - 10 minutes) Default: 20 seconds
PRIMING DELAY
DISABLED/ENABLED
SET SPEED
PUMP TEMPERATURE
(Pages 14 -15)
(Page 20)
(Pages 16)
(Pages 16 -17)
(Pages 18 - 19)
(Pages 10 -13)

Pentair IntelliFloXF Specifications

General

Brand	Pentair
Model	IntelliFloXF
Category	Water Pump
Language	English
