IntelliFloXF
™
and IntelliProXF
™
Variable Speed Pump Installation and User’s Guide

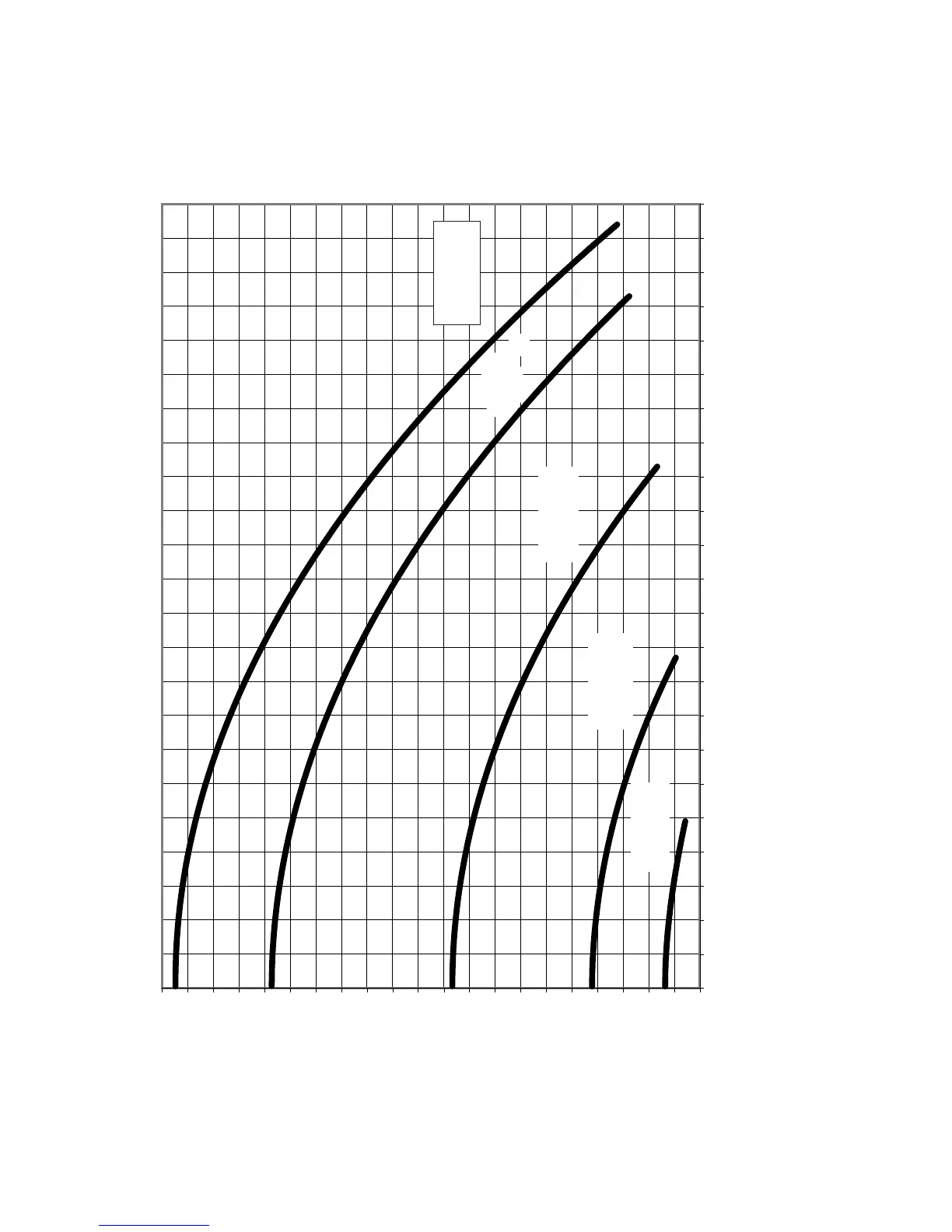

Pump Performance Curves
0 5
10 15 20 25
30 35 40 45
50 55 60
65
70
75
80 85 90 95
100 105
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230
Speed 1 @750 rpm
Speed 2 @1560 rpm
Speed 3 @2350 rpm
Speed 4 @3110 rpm
Max. Speed @3450 rpm
Total Dynamic Head in Ft. of Water
Volumetric Flow Rate in GPM
