Pentair IntelliFloXF User Manual

1
IntelliFloXF
™
and IntelliProXF
™
Variable Speed Pump Installation and User’s Guide
The IntelliFloXF
™
and IntelliProXF
™
Variable Speed pump can be programmed to run at specifi c
speeds and time intervals for maximum operating effi ciency and energy conservation for
inground pools.
The pump can communicate with IntelliTouch
®
, EasyTouch
®
, or SunTouch
®
control systems
or IntelliComm
®
communication center via an RS-485 communication cable.
• The pump can operate from 450 RPM to 3450 RPM with four preset speeds of 750, 1500,
2350 and 3110 RPM.
• The pump can be adjusted from the control panel to run at any speed between 450 RPM
to 3450 RPM for different applications.
• RS-485 commincation cable included
• EasyTouch
®
and IntelliComm
®
can remotely control the four preset speeds.
• IntelliTouch
®
system can be confi gured to control a total of eight speeds.
• Totally enclosed fan-cooled (TEFC) motor design.
• Self-priming for easy start-up
• UL/CUL/NSF
Pump Overview
Pump Components

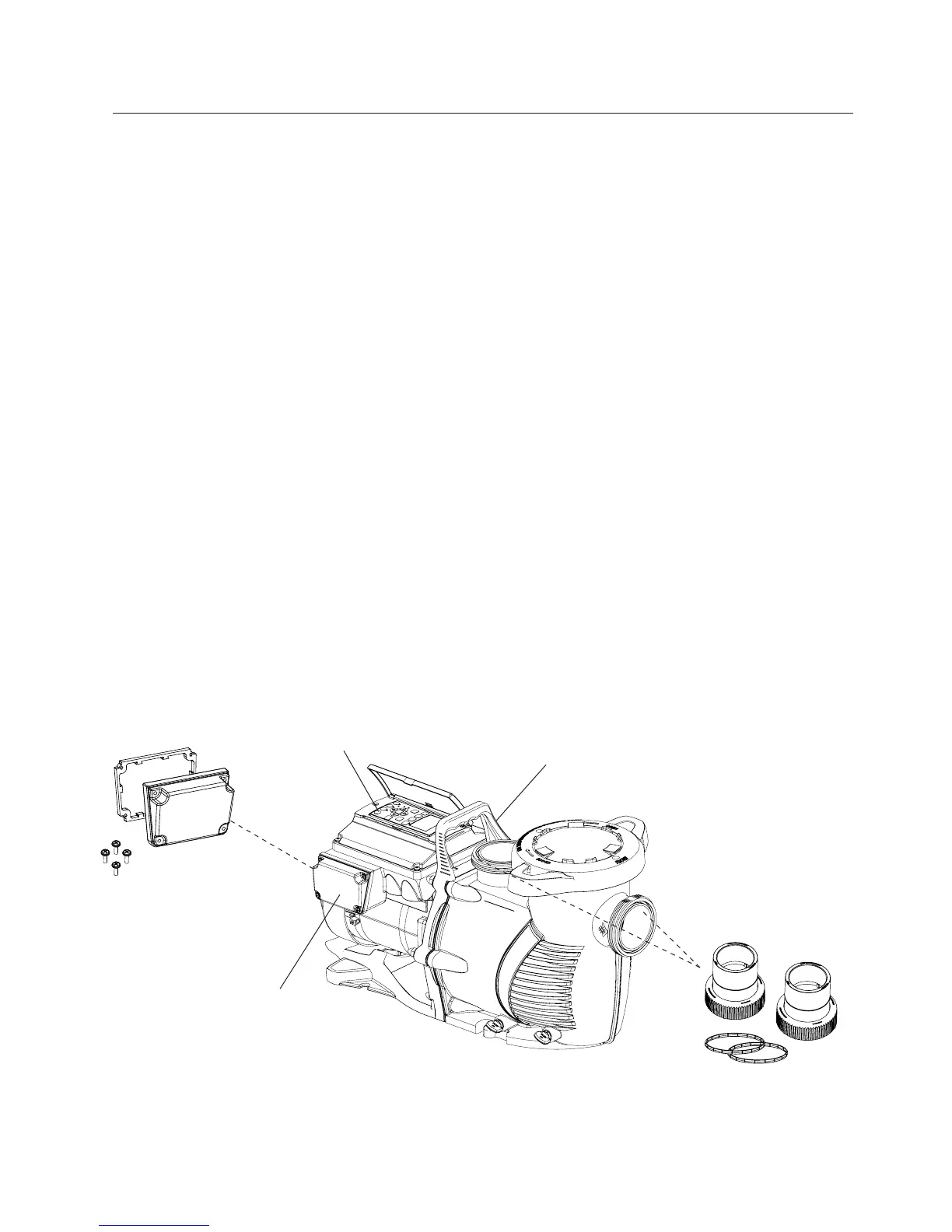

The pump includes the cover assembly (with gasket and four screws) and the union kit.
Use the control panel to set pump speeds and connect to an automation system using
communication port.
Cover Assembly
(Gasket and 4 Screws)
Union Kit
(Suction and Discharge
Fittings)
Operator Control Panel
AC Power Connection
Compartment
Communication port to connect to
automation control system or to
IntelliComm communication center
via RS-485 cable (not shown).

Pentair IntelliFloXF Specifications

General

Brand	Pentair
Model	IntelliFloXF
Category	Water Pump
Language	English
