21
IntelliFloXF
™
and IntelliProXF
™
Variable Speed Pump Installation and User’s Guide

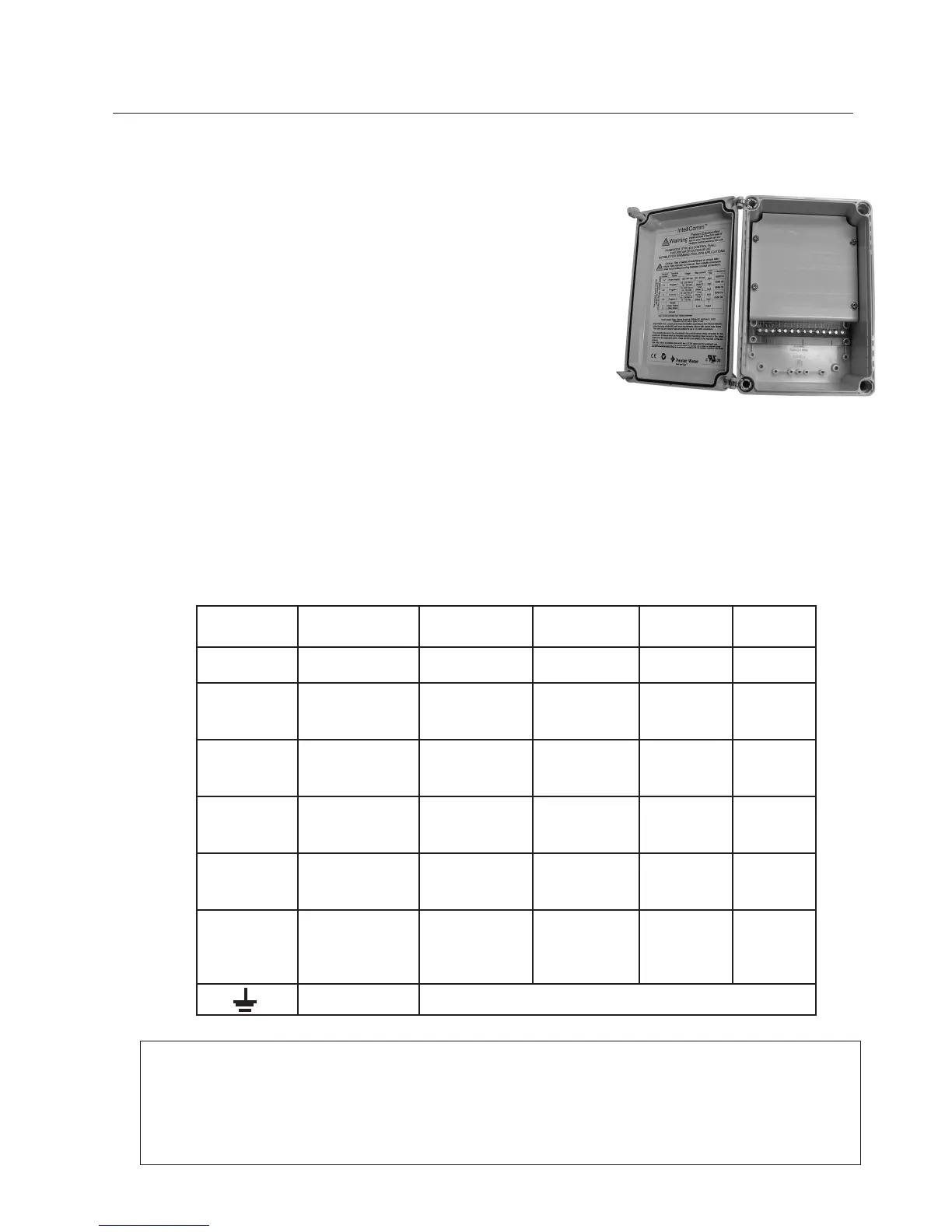

Connecting to an Automation System
External Control with IntelliComm
®
Communication Center
Use the RS-485 communications cable to remotely control
the pump from an IntelliComm Communication Center. The
IntelliComm provides four (4) pairs of input terminal
connections. These inputs are actuated by either 15 - 240
VAC or 15 - 100 VDC. Use the device inputs, to control the
programmed pump speeds.
Note: For the pump to accept commands from
IntelliComm, the pump must be in the
“Running Schedules” mode (LED above Start/Stop
button is on). If more than one input is active, the
highest number will be communicated to the pump. The
IntelliComm will always communicate to pump using
ADDRESS #1.
Program Number Priority
If programs 1 and 2 are activated, program 2 will run, regardless of the assigned speed (RPM).
The higher program number will always take priority.
Refer back to page 16 for instructions for setting up Programs in the External Control menu.
External Control is for programming speeds that will run when the IntelliComm power center
controller sends it a command. For example, Terminal 3 and 4 in IntelliComm will correspond
to External Control Program #1. (5 and 6 to Ext Ctrl #2). Use the External Control feature to
program the IntelliComm power center.
Terminal
Number
Terminal
Name
Voltage
Maximum
Current
Phase Type Frequency
1-2 Power Supply 100 - 240 VAC 100 mA 1 Input 50/60 Hz
3-4 Program 1
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input
50/60 Hz
5-6 Program 2
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
7-8
Program 3
15 -240 VAC
or
15 - 100 VDC
1 mA
1 Input 50/60 Hz
9-10 Program 4
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input
50/60 Hz
11
12
RS-485
+ Data: Yellow
- Data: Green
-5 to +5 VDC 5 mA
1 Output
N/A
Ground
Wiring Terminal Descriptions for Intellicomm
IntelliComm
®
Communication Center
