IntelliFloXF
™
and IntelliProXF
™
Variable Speed Pump Installation and User’s Guide
Using the Operator Control Panel
Use the operator control panel to start and stop the pump, program, set, and change speeds
(RPM), and access pump features and settings.
Current Speed
Key Lockout Icon
Countdown Time
Current Feature Running
Current Time
Current Power Usage
Speed 1 button: Press to select Speed 1 (750 RPM). LED on indicates Speed 1 is active.
Speed 2 button: Press to select Speed 2 (1500 RPM). LED on indicates Speed 2 is active.
Speed 3 button: Press to select Speed 3 (2350 RPM). LED on indicates Speed 3 is active.
Speed 4 button: Press to select Speed 4 (3110 RPM). LED on indicates Speed 4 is active.
Select button: Press to select currently displayed option on the screen.
Escape button: Goes one step back in menu; exits without saving current setting.
Menu button: Accesses the menu items when and if the pump is stopped.
Enter button: Saves current menu item setting. Press this button to acknowledge alarms and
warning alerts.
Arrow buttons:
• Up arrow: Move one level up in the menu or increase a digit when editing a setting.
• Down arrow: Move one level down in the menu or decrease a digit when editing a setting.
• Left arrow: Move cursor left one digit when editing a setting.
• Right arrow: Move cursor right one digit when editing a setting.

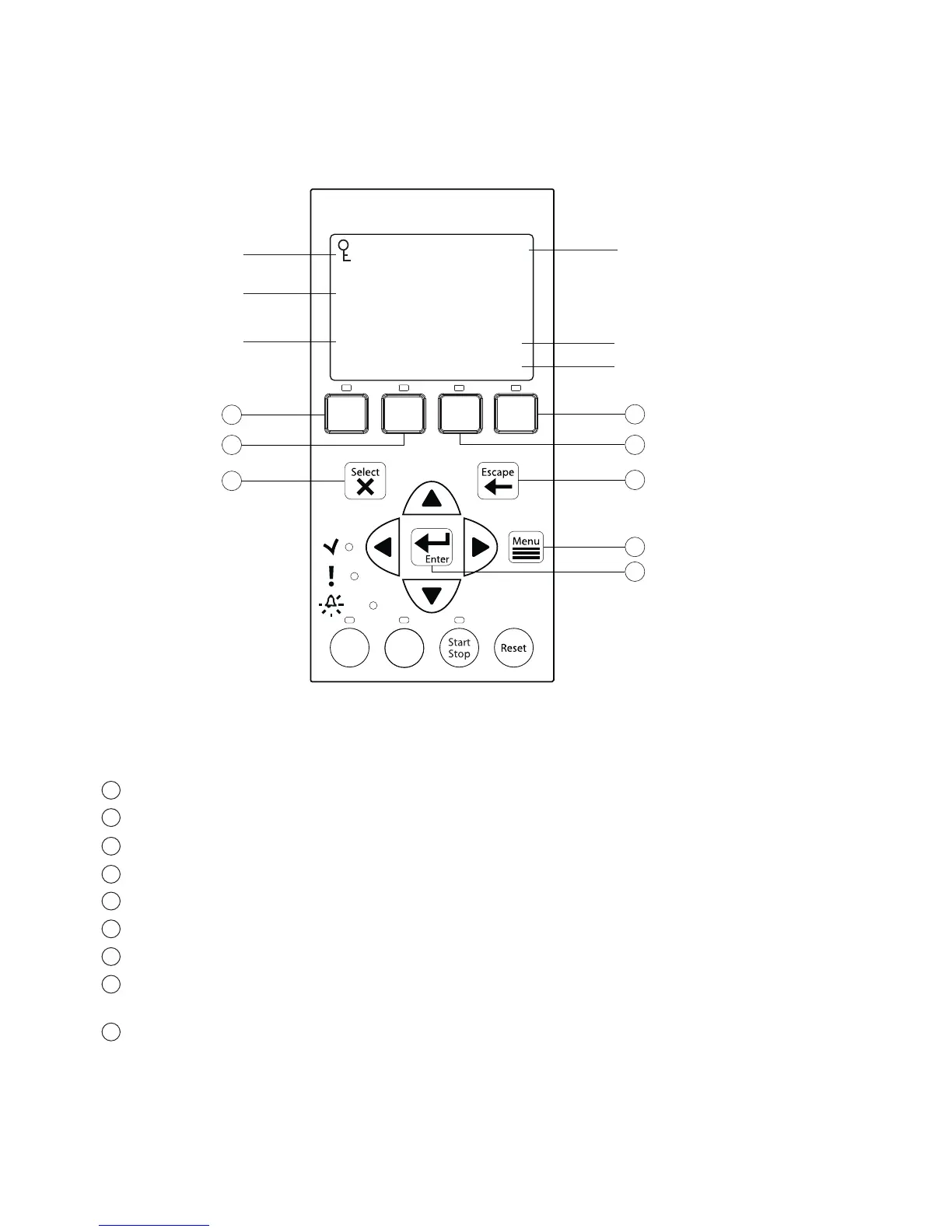

Controls and LEDs on Key Pad
12:15
750 RPM
T 0.00 150 WATTS
Running Speed 1
1
5
2
6
8
4
3
7
Speed
1
Speed
2
Speed
3
Speed
4
Quick
Clean
Time
Out
5
1
2
3
4
6
7
8
9
