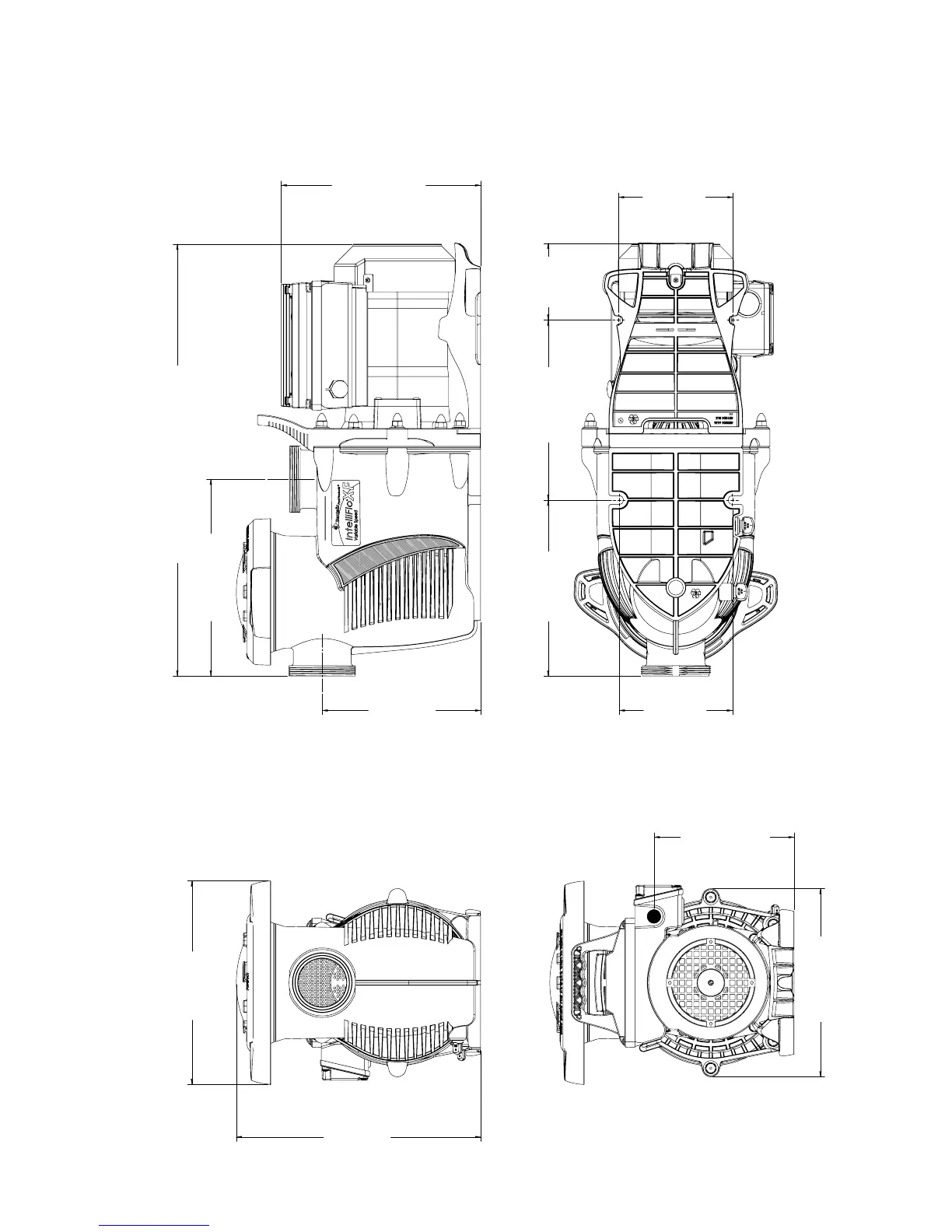

Pump Dimensions
ANCHOR BOLT MOUNTING LOCATIONS
[298 mm]
11.7 in
[288 mm]
11.4 in
[232 mm]
9.125 in
[258 mm]
10.2 in
[166 mm]
6.5 in
[168 mm]
6.6 in
[263 mm]
10.4 in
[113 mm]
4.4 in
[292 mm]
11.5 in
LEAVE ADDITIONAL 4”
ABOVE FOR KEYPAD
[633 mm]
25 in
ALLOW ADDITIONAL 3” REAR
CLEARANCE FOR FAN TO BE
ABLE TO DRAW AIR
[358 mm]
14.1 in
[276 mm]
10.9 in
[205 mm]
8.1 in
HEIGHT TO 1/2”
NPT CONDUIT
RECEPTACLE

Pentair IntelliFloXF Specifications

General

Brand	Pentair
Model	IntelliFloXF
Category	Water Pump
Language	English
