Connecting to EasyTouch

and IntelliTouch

System

8. EasyTouch COM port (J20): Connect the GREEN (#2) and YELLOW (#3) wires to

the COM port screw terminals (#2 and #3). Be sure to match the color coding of the

wires; YELLOW to YELLOW and GREEN to GREEN. The Red wire is not connected.

Secure the wires with the screws.

IntelliTouch COM port (J7/8): Connect the GREEN (#2) and YELLOW (#3) wires to

the COM port (J20) screw terminals (#2 and #3). Be sure to match the color coding

of the wires; YELLOW to YELLOW and GREEN to GREEN. The Red wire is not

connected. Secure the wires with the screws.

Note: Multiple wires may be inserted into a single screw terminal.

9. Close the control panel into its original position and secure it with the two screws.

10. Install the high voltage cover panel and secure it with the two retaining screws.

11. Close the load center front door. Fasten the spring latch.

12. Switch the power on to the load center.

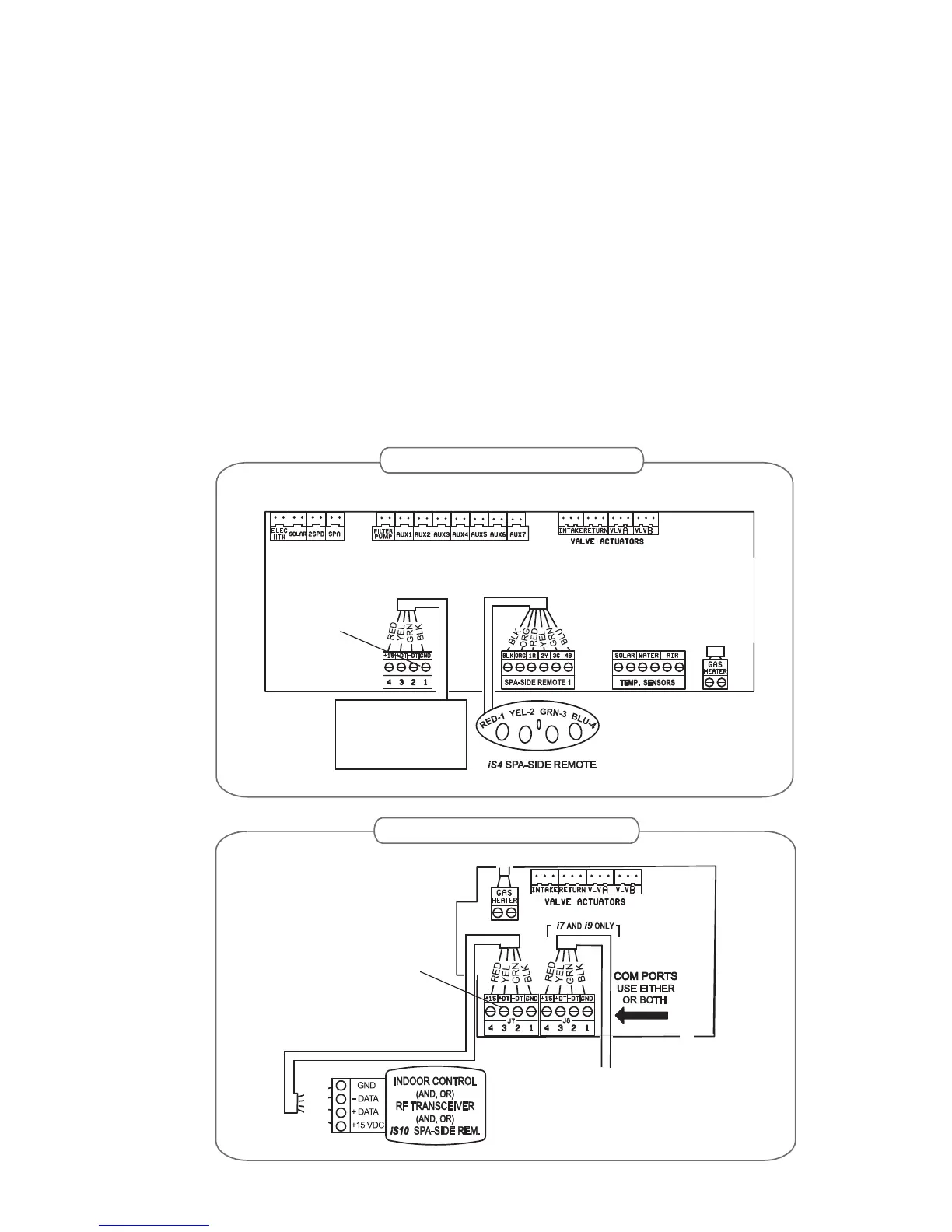

Indoor Control Panel

IntelliChlor

IntelliPro

RF Transceiver

EasyTouch Circuit Board

BLK

GRN

YEL

RED

IntelliTouch Circuit Board

IntelliTouch Personality

Board COM PORT

(J7/J8)

EasyTouch

COMPORT

(J20)
