Pentair IntelliPool User Manual

9
6
4
2
1
5
7
11
12
8
9
1
2
4
3
10
13
12/07/2013 15:23:48
Water temp :+24.0°C
pH: 7.3 ORP:629mV
Cond:5571uS 3.51g/l
VALID
ESC
INTELLIPOOL
®
CONTROL
230 V 50 Hz~ / IP64 / 16 W
433.445 MHz
INTP-1010B SB-SE-TEC-003A
S/N 1234ABCD1234ABCD1234ABCD01
QC Passed
Pentair International Sarl
Avenue de Sévelin 18
CH-1004 Lausanne, Switzerland
Mfg Year
Apr-2019
MADE IN ITALY
SCAN
ME
Pool ID: 12 345
ID Key: 1A:2B:33:99
INTELLIPOOL

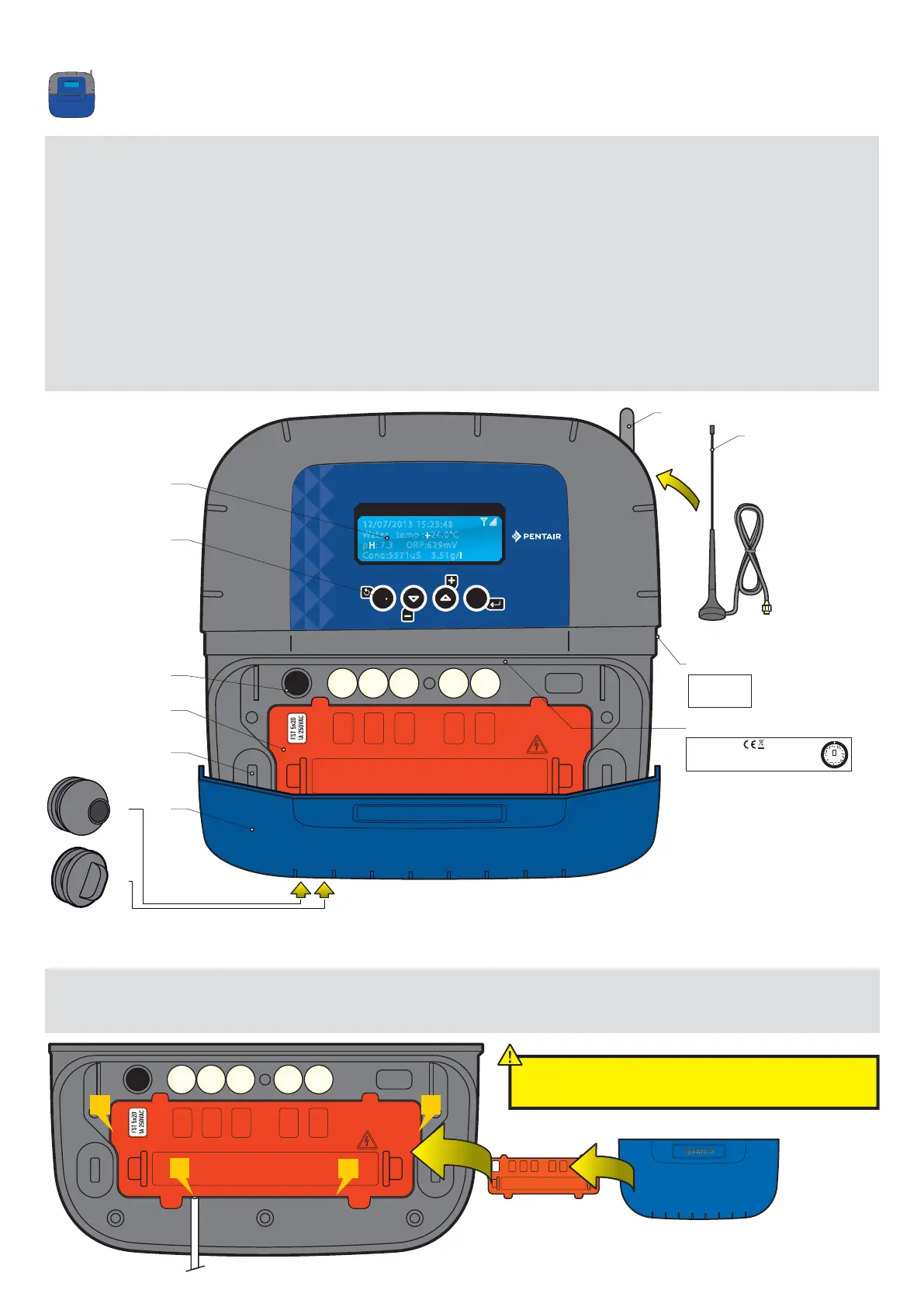

Control Center
It is the brain of the system. SOLEO calculates automatically and controls the operating time of each piece of the equipment.
It receives the orders via remote control or via internet and launches the lighting of the concerned device.
The activity is stored in internal memory for 64 days (can be consulted by the user).
1: Backlit screen (4 x 20 characters) 2: Buttons (navigation menu)
4: Fuse holder (1 A)
5: Connector cover (can be unclipped with a screwdriver) 6: Screw cover (protection against entry of vapours)
7: Rubber cover (Watertight protection) 8: Radio antenna
9: Off-board magnetic radio antenna (option) Ref.: INTP-5240 10: Identification tag
11: Cable grommet compatible for cables of diameters 7 mm to 10 mm, to be mounted with the supplied silicon lubricant. Avoid any vapour
entering the housing.
12: End plug to be assembled if an outlet is unused. Avoid any vapour entering the housing.
13: Pool ID label, access codes to an internet account
Disassembly of the orange cover of the Control Center
To respect the current electrical standards, a safety cover which cannot be unclipped without a tool is positioned above the connectors which guide the voltage.
> Place a flat screwdriver on the flat part of clips 2 and 3, while keeping pressure on the cover to unclip it.
After each intervention, replace the orange safety
cover then the soft blue cover.
