Pentair IntelliPool User Manual

42
FILTRATION
HEATING PUMP
LIGHTING
ELECTRO
LYSER
AUX1
BUS
Suppl.
Com.
230 V~
Neutral
Earth
Phase
A1 A2
FEEDBACK FILTRATION
USB
recognised
3 s
3 s
CONTROL
VALID
ESC
12/07/2018 15:23:48
Water temp.:+24.0°C
pH: 7.3 RedOx:629mV
Cond:5571uS 3.51g/l
Initialisation...
Pentair
IntelliPool
Init.:reset v355
CONTROL
VALID
ESC
example
Current version No.
3 s
The Control Center can be updated or reflashed. This procedure is reserved for qualified professionals with good IT knowledge. The update file is
available at Intellipool.eu/téléchargement.

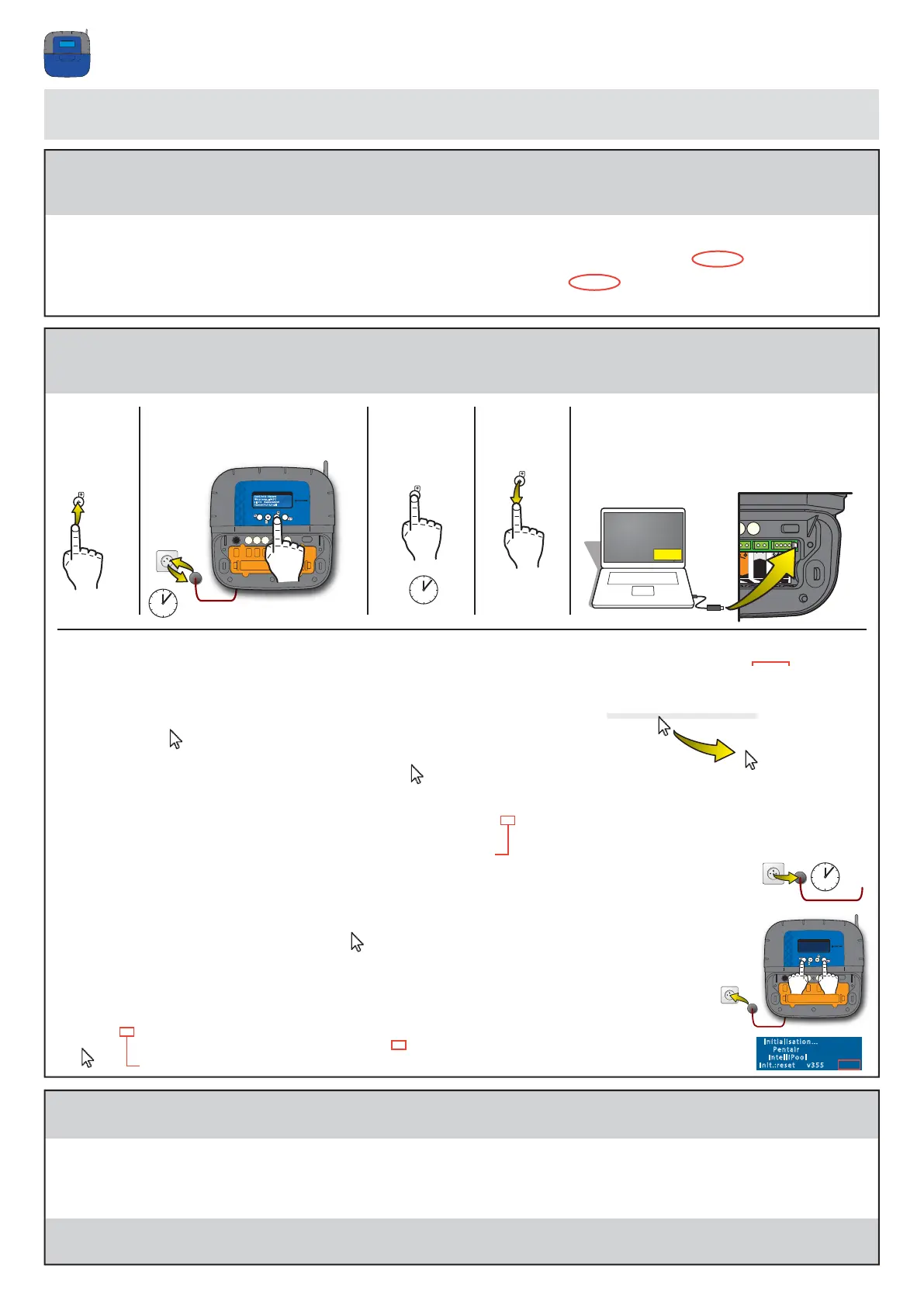

Control Center: How to update the internal firmware
1.1 Unzip the file MAJ_Intellipool_Vx_xx.zip
1.2 Double click on USBXpressInstaller.exe
1.3 In the Silicon Laboratories USBXpress Device Driver Installer window,
click Install
1.4 In the Success window which has opened, click OK
- Make sure to have a surface to place the laptop on.
- Installing this program will ensure that the PC can send the required file via USB
1 - Preparation of the PC
- To read the version number of the Control Center, simply cut the electrical power supply and quickly look at the bottom right of the screen during
powering on. The display is in the form x.xx or xxx. The minimum version compatible for this operation is 3.51.
2 - Re-programming mode
- The menu texts evolve as the functions change. Updating the internal text file makes full use of the functions possible.
3 - Loading of the latest menu texts
1.3 1.4
2.1 - Press
Press the
Up/+ button
2.5 Remove the orange cover of the Control Center
2.6 Connect the USB/mini USB cable
between the PC and Control Center
2.7 The PC displays USB recognised
2.2 - Cut for 3 sec. then re-supply
the power while keeping the button pressed
2.3
- Press
the Up/+ button
for 3 more sec.
2.4
- Then release.
2.9 Click Open
2.8 Double click USBBootloader.exe from the archive MAJ_xxxxxxx_Vx_xx.zip
2.10 Click Browse...
2.11 Open ControlCenter_3_5_5_MAJ.hex
2.14 Cut the supply for a min. of 3 sec
2.15 Press Esc and Valid
and simultaneously
reconnect the power supply.
2.16 As soon as it lights, for 2 sec,
check the version number
2.13 In the USB Bootloader window,
click OK
2.12 Click Download
Version No. which is going to be programmed
3.0 On the PC, open the Control Center file (visible as USB media)
3.1 Open the file Texts from the archive MAJ_xxxxxxx_Vx_xx.zip
3.2 Copy the file content Texts from the archive MAJ_xxxxxxx_Vx_xx.zip in the file of the Control Center.
As the new .TXT files have the same name, they will overwrite the old ones (click OK for the overwrite request).
The update is finished. Disconnect the mini USB cable from the Control Center.
- In FILTRATION AUTO mode, it is normal that the filtration does not start again immediately. It will restart on the next full hour.
