The indoor display alternates between showing the air temperature (in °C or °F, see p34) followed by a sun and
cloud and the water temperature accompanied by a diver.
Note: direct exposure of the radio relay to sun rays interferes with measurement of the air temperature. If the
installation includes two radio relays, it is the one which has the jumper set to ON which will provide this value,
see p13. In case of divergence between the displayed temperature value and the reference value supplied by a
standard instrument, this difference can be addressed, see p34.
This pictogram displays when the temperature measured on the radio relay is lower than +3 °C (37.4 °F).
Temperatures
Detection of risk of snow
The display is intended for internal use. Do not expose to sun or rain. Exposure to
sunlight (UV) or rain may cause irreversible damage.
BATTERY CAP
TRIPOD
REAR VIEW
Internal display
Only use high-quality alkaline batteries
resistant to temperatures above +70 ° C
(for example PROCELL Duracell)
Mode on:
- Functioning of the device
Calibration mode:
- Calibration of pH and ORP probes
- Calibration of water temperature
- Selection of units
alarm mode:
- Customisation of alarm values
Sound switch
ON/OFF
REFRESHING OF VALUES
One full cycle (ON > CALIB > ON or ON > ALARM > ON)
“refreshes” the values on the screen after 20 seconds
> Raise the tripod then remove the battery cover
> Insert new alkaline batteries (4xAA - 1.5 V), respecting the polarity indicated on the
battery holder.
> Check the battery power level of the indoor display on the screen and replace the
battery cover.
Note: - Changing the batteries does not erase the alarm value customisation.

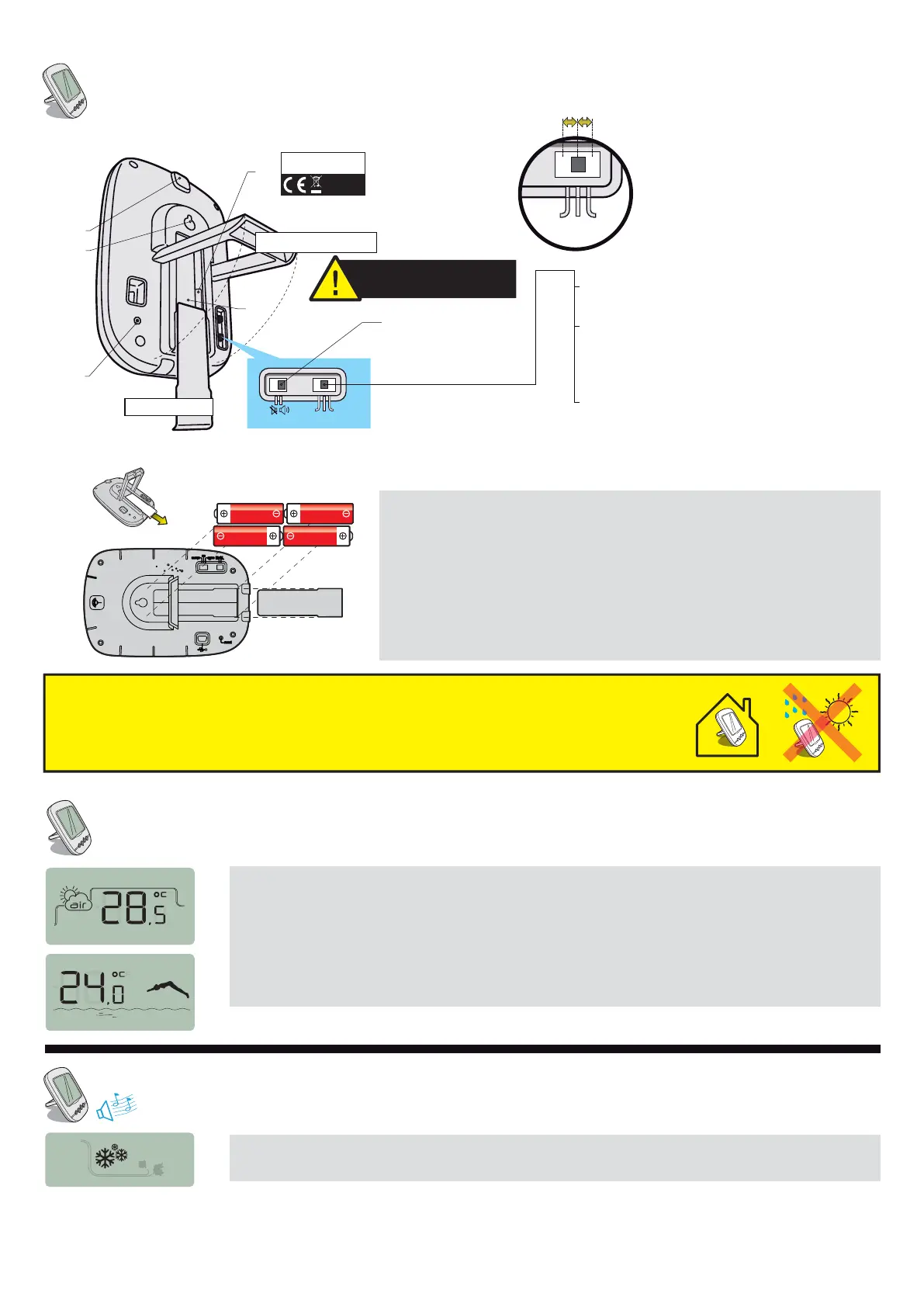

INTERNAL DISPLAY - installation of batteries (4xLR6 - 1.5 V)
