10
N L
AUX1
CL
230 V ~
BUS
24V RS-485
pH
5-230 V~
OR
20 mm max.5 mm
= VGV (4 x 0.75 mm2)
185 mm
150 mm
Compatible power supply cables 230 V
Ø 8/8.8 mm
30 mm max. 5 mm
Compatible dry contact cables
Ø 8/8.8 mm
30 mm max. 5 mm
- The device must be installed by a qualied technician according to valid local regulation
- This device is permanently connected.
- The power supply to the device is cut by its interrupter, which must be close and must remain accessible at all times.
- The device needs to be connected to the earth and its power supply needs to be protected by 16A 30 mA differential protection. This protection must
be cut before any intervention on the device.
- Overvoltage category II (2,500 V peak) electrical device. If necessary, place overvoltage protection equipment before the device.
- The device must be placed close to the electrical cabinet to aid connections (3 m max.).

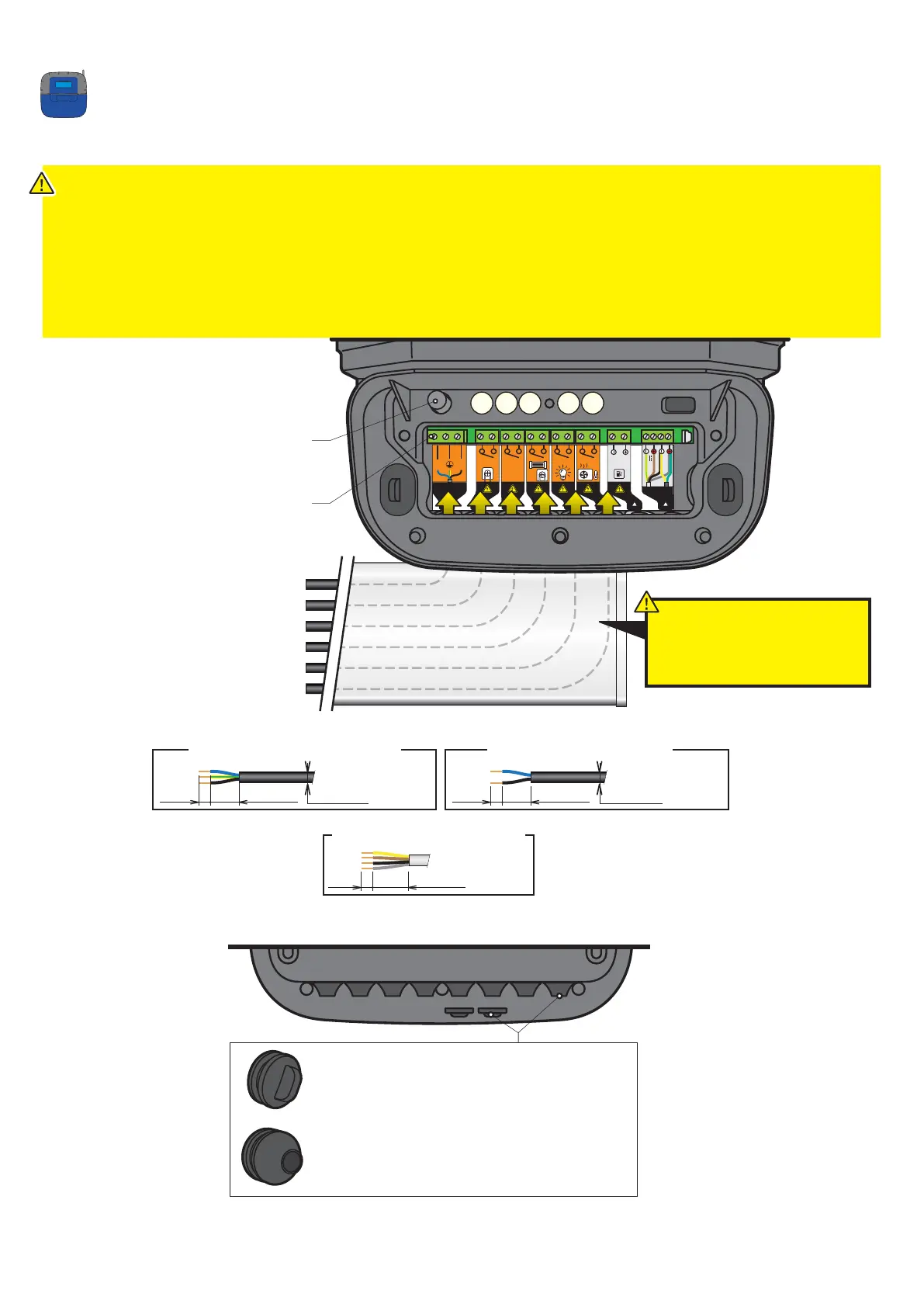

Hygiene of Control Center electrical connections
= RO2V (3 x 1.5 mm
2
min.) = RO2V (2 x 1.5 mm
2
min.)
The supply cable as well as the cables of
the dry power contacts must be placed in
a plated and closed channel under the
device.
Control Center
“BUS IN” (RS485) compatible cable
POWER SUPPLY 230 V / 50 Hz +- 10%
PH DOSINF PUMP - 230 V 10A max.
DISINFECTION - 230 V 10A max.
AUX 1 - 230 V 10 A max.
LIGHTING - 230 V 10 A max.
HEATING - 230 V 10 A max.
Interchangeable fuse
FST 5x20 250 V AC 1 A fast
Screw terminals
Slotted screwdriver 2.5 mm/0.5-0.6 Nm
Cable ducts
- must be installed if an outlet is in use,
(to stop any humidity or acidic vapour entering)
Caps
- must be installed if an outlet is not in use
(to stop any humidity or acidic vapour entering)
BACK VIEW
