SECTION 2: Nomenclature
2.2 Drives
Variable / High Speed Drive Nomenclature

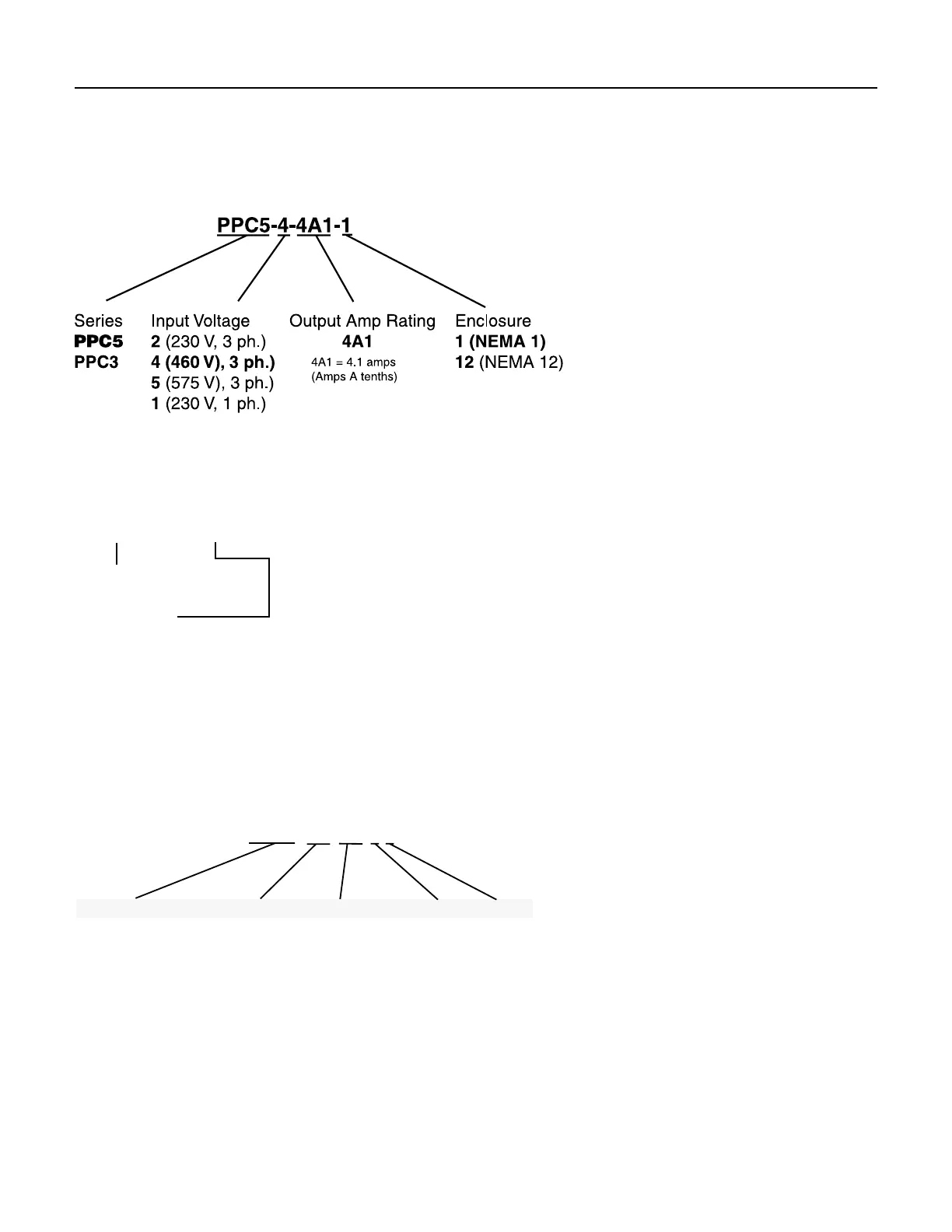

The chart below shows the naming for a PPC5, 460 volt,
4amp drive with a NEMA 1 enclosure.
Note that the output current (amps) of the control must
be greater than or equal to the maximum rated motor
current. Output of all drives is 3-phase power.
PID Variable Frequency Drive Nomenclature
2.3 Submersible Motor Controls
The chart below shows the naming for a Submersible
Motor control, Standard box, capacitor run, 5horsepower,
230 volt single phase drive.
Style
CR (Cap Run)
IR (Induction Run)
CRP (Cap Run
with contactor)
Ser
ies
SMC_(Std.
)
SMC5 (50 Hz)
SMC - CR 50 2 1
HP x 10
05 (0.5 hp)
07 (.75 hp)
10 (1 hp)
15 (1.5 hp)
20 (2 hp)
30 (3 hp)
50 (5 hp)
Voltage
1 (115 v)
2 (230 v)
Phase
1 (Single)
HP Rating:
10 = up to 1 HP
20 = up to 2 HP
50 = up to 5 HP
PID – 10
Product Family
PID = Pentek IntelliDrive
