The IP Protocol setting, along with the Port setting, specifies the protocol of the service as TCP,
UDP, ICMP or IP.
Traffic that is received by Peplink Balance via the specified protocol at the specified port(s) is
forwarded to the LAN hosts specified by the Servers setting.
(Please refer below for details on the Port and Servers settings.)
Alternatively, the Protocol Selection Tool drop-down menu can be used to automatically fill in
the Protocol and a single Port number of common Internet services (e.g. HTTP, HTTPS, etc.)
After selecting an item from the Protocol Selection Tool drop-down menu, the Protocol and
Port number remains manually modifiable.

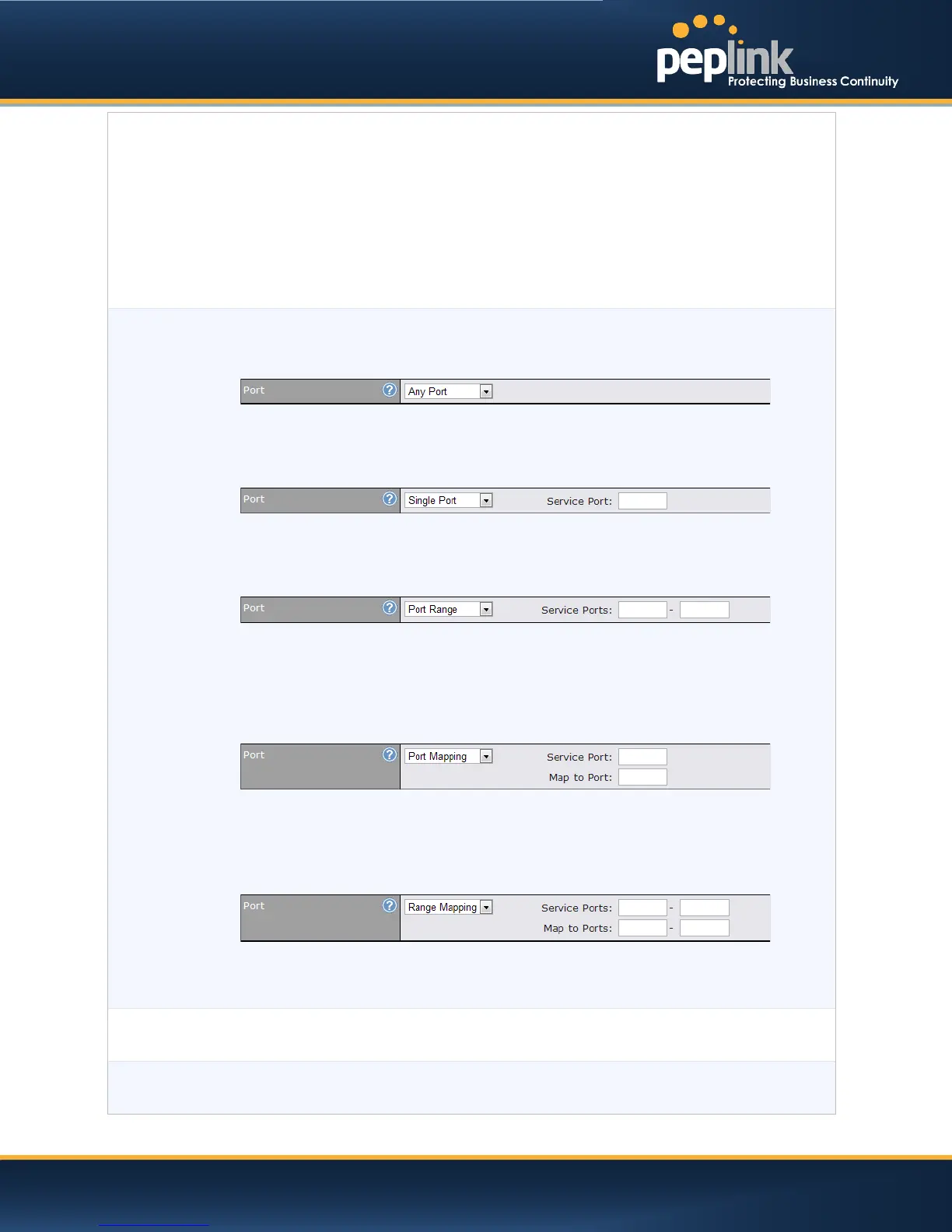

Port
The Port setting specifies the port(s) that correspond to the service, and can be configured to
behave in one of the following manners:
Any Port, Single Port, Port Range, Port Map and Range Mapping
Any Port: all traffic that is received by Peplink Balance via the specified protocol is forwarded to
the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Any Port, all TCP traffic is forwarded
to the configured servers.
Single Port: traffic that is received by Peplink Balance via the specified protocol at the specified
port is forwarded via the same port to the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Single Port and Service Port 80,
TCP traffic received on Port 80 is forwarded to the configured servers via Port 80.
Port Range: traffic that is received by Peplink Balance via the specified protocol at the
specified port range is forwarded via the same respective ports to the LAN hosts specified by
the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Port Range and Service Port 80-88,
TCP traffic received on ports 80 through 88 is forwarded to the configured servers via the
respective ports.
Port Mapping: traffic that is received by Peplink Balance via the specified protocol at the
specified port is forwarded via a different port to the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Port Mapping, Service Port 80, and
Map to Port 88, TCP traffic on Port 80 is forwarded to the configured servers via Port 88.
(Please see below for details on the Servers setting.)
Range Mapping: traffic that is received by Peplink Balance via the specified protocol at the
specified port range is forwarded via a different port to the servers specified by the Servers
setting.
Inbound IP
Address(es)
This setting specifies the WAN connections and Internet IP address(es) from which the service
can be accessed.
Server IP
Address
This setting specifies the LAN IP address of the server that handles the requests for the
service.
