RJ45F to DB9F DTE Crossover Adapter

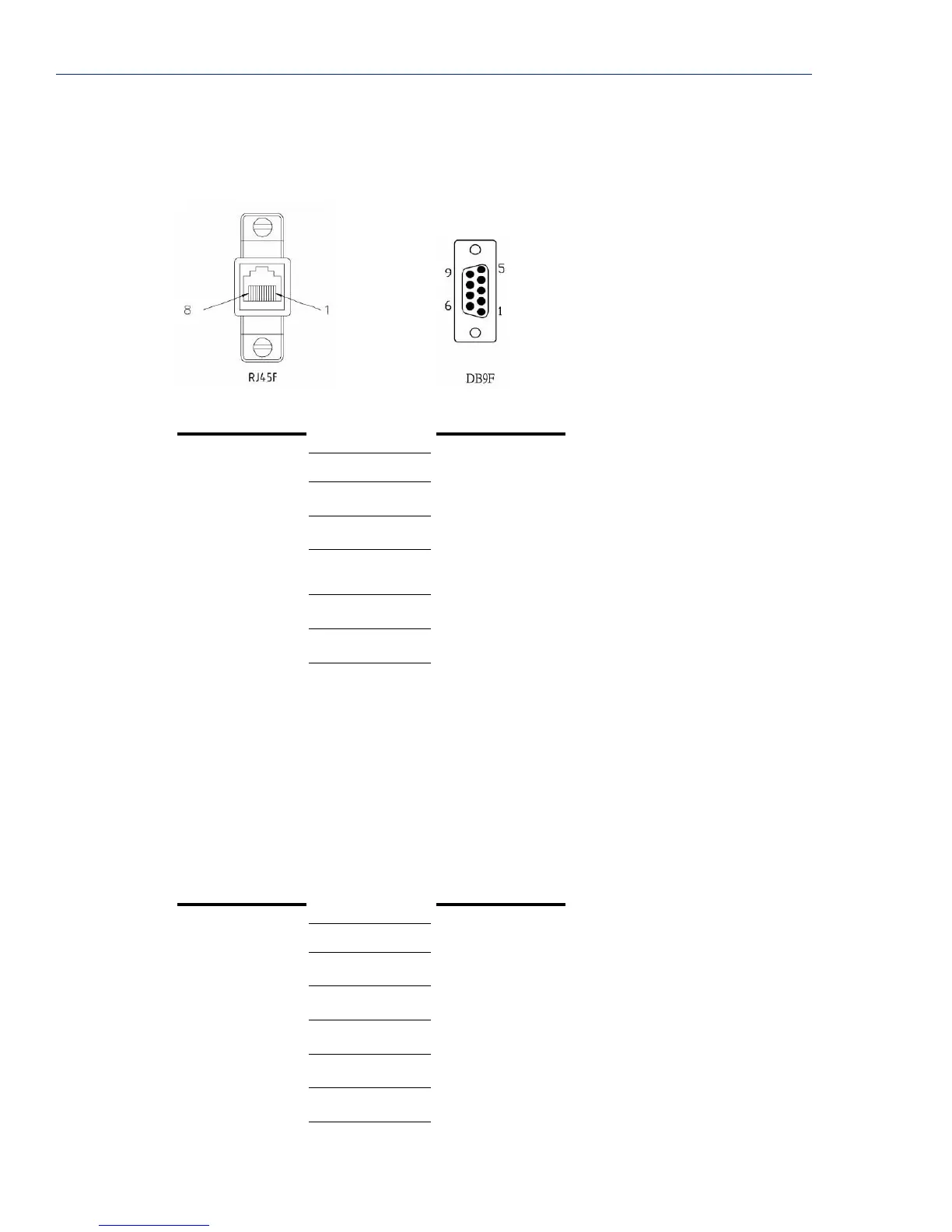

The following diagram shows the IOLAN RJ45FJDB9F crossover adapter pinouts. This is model
number DBA0020.
(TxD) 4 2 (RxD)
(RxD) 5 3 (TxD)
(GND) 6 5 (GND)
(DTR) 8 1 (DCD)
6 (DSR)
(DSR) 3 4 (DTR)
(RTS) 2 8 (CTS)
(CTS) 7 7 (RTS)
Sun/Cisco RJ45M Connector Cable for Rack Mount Models
This is a 3 meter RJ45MJRJ45M 8-wire Sun/Cisco modular cable. The following diagram shows
how the
IOLAN RJ45M cable is configured when connecting to the supplied Sun/Cisco RJ45 cable.
This model number is CAB0030.
Also available as an adaptor with an RJ45M for IOLAN side and an RJ45F for Sun/Cisco side. This
is model number DBA0031. When using this adaptor, make sure to place it on the IOLAN side of the
connection.
(RTS) 2 8 (CTS)
(DSR) 3 2 (DTR)
(TxD) 4 6 (RxD)
(RxD) 5 3 (TxD)
(GND) 6 4 (GND)
(CTS) 7 1 (RTS)
(DTR) 8 7 (DSR)
RJ45F DB9F
IOLAN
RJ45M
Sun/Cisco
RJ45M
