Explorer Mini Repairs - Control panel

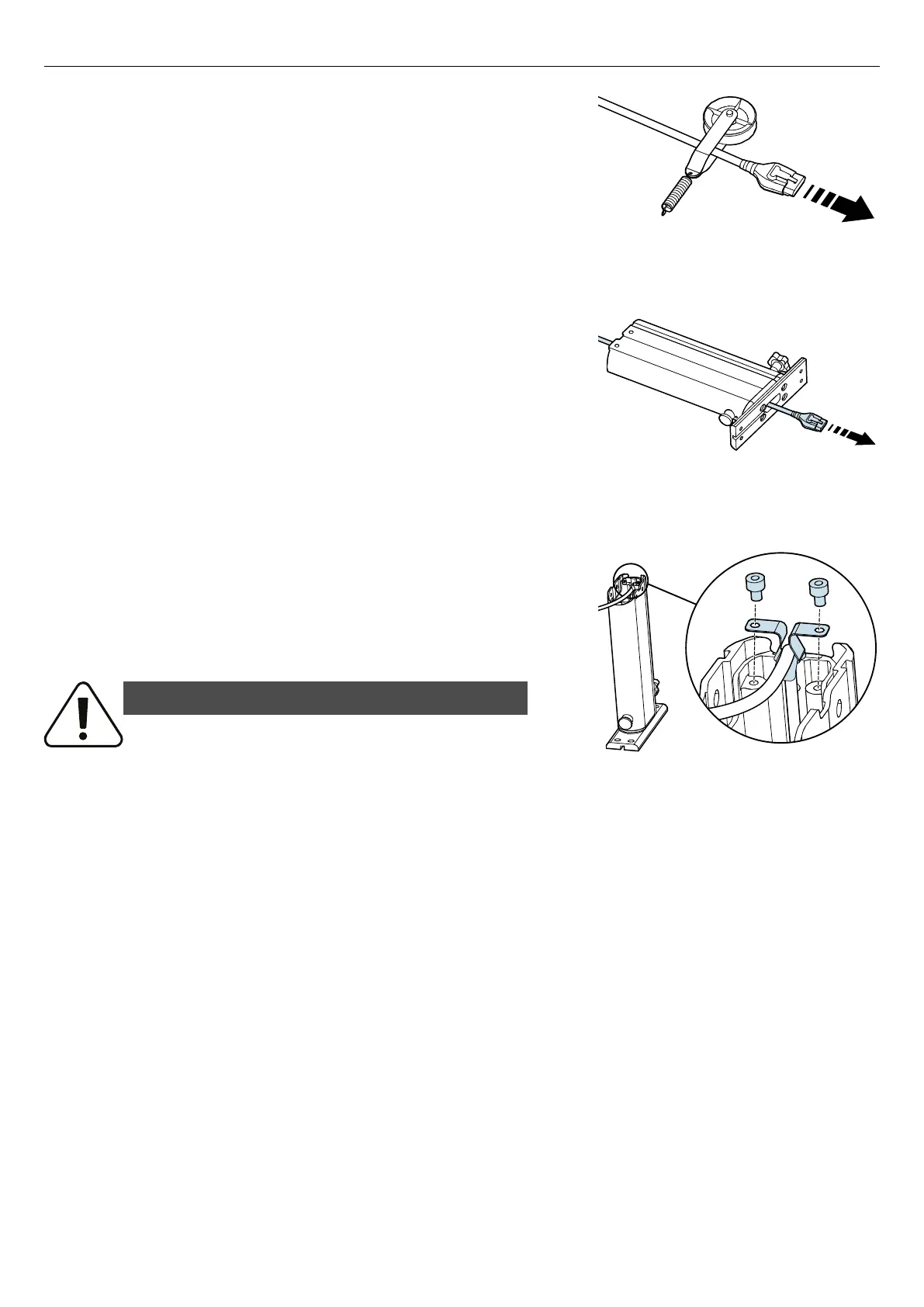

Figure 93. Pull the end of the cable to the control panel
through the cable pulley assembly.
5. Pull the end of the cable to the control panel through the cable
pulley assembly.
Figure 94. Pull the end of the cable to the control panel
through the column.
6. Pull the end of the cable to the control panel through the column.
Make sure that the column is adjusted to its lowest setting.
Figure 95. Attach the cable holder on the column.
7. Put the cable in the cable holder and attach the cable holder on the
column with the two screws. Make sure that the measured and
marked out distance, 19.7″, on the cable is in the center of the cable
holder. See step 2 for information on the measurement.
Tightening torque: 2.1 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
48
