Function
18 | 46
Granolyser / Granolyser HL operating instructions | Revision 3
6 Function
6.1 Components of the GRANOLYSER

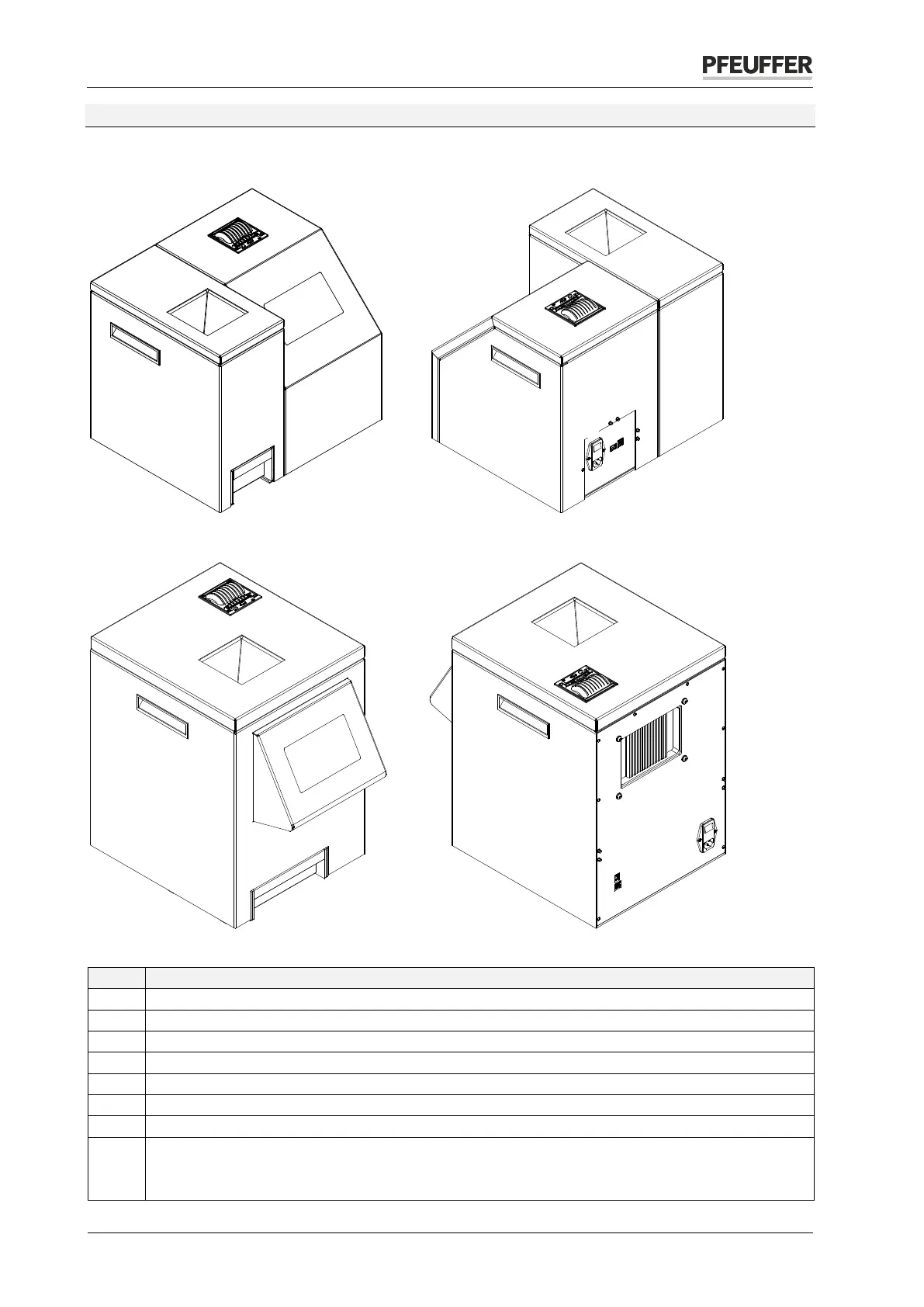

Figure 3: GRANOLYSER overview
Figure 4: GRANOLYSER HL overview
Item
Designation
1
Filling funnel
2
Printer
3
Drawer
4
Display (touchscreen)
5
Main switch I/0 (ON/OFF)
6
Mains connection (power connector IEC 60320 C14)
7
RJ45 interface for connecting to a network, hub, switch or router
8
2 USB interfaces
See also important notice in chapter 2.3.
Connection for an optional adapter (USB to serial COM port), USB data memory, barcode
scanner, etc.
1
2
3
4
6
7
8
5
1
2
3
4
6
7
8
5
