Pfeuffer Granolyser User Manual

Operation
22 | 46
Granolyser / Granolyser HL operating instructions | Revision 3

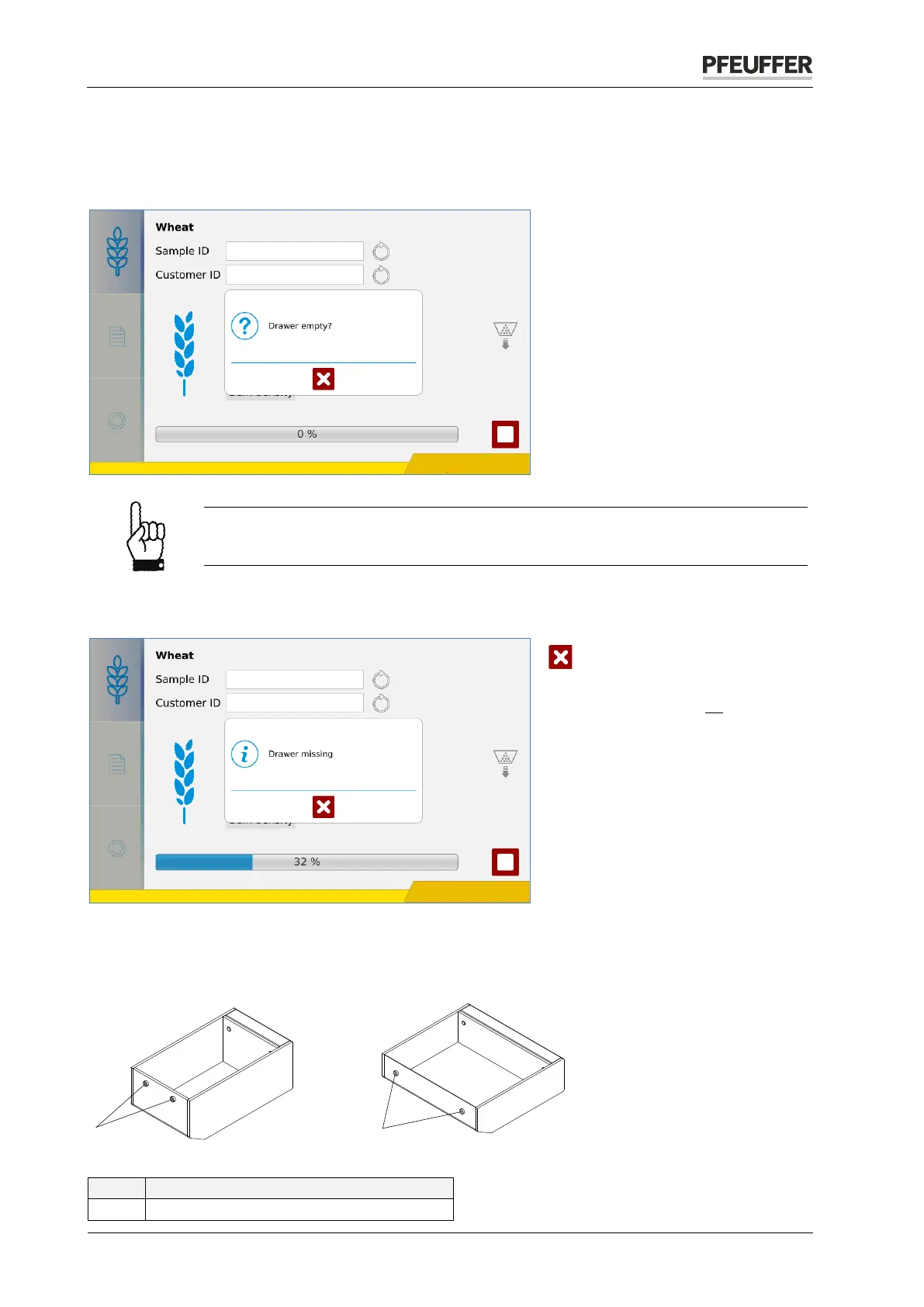

7.2 Drawer mechanism
The
GRANOLYSER displays the "Drawer empty?" message by default prior to measurement if the drawer
has not been pulled out. This ensures that there is no sample in the drawer and mixing takes place. Check
that the drawer is empty before every measurement.
Pull out the drawer, check the
contents and slide the drawer back in
again.
The message is canceled auto-
matically.
If you pull out the drawer during the measuring procedure, the conveyor motor is
stopped immediately.
The message "Drawer missing" is displayed. Push the drawer back in. The message is ended automatically.
The sample continues to be conveyed and a measurement result is output.
If you confirm the message with
this symbol, the measurement
is aborted and no measuring
result is output.
Push the drawer back in. The sample
is emptied.
Then start a new measurement.
To guarantee that the drawer mechanism functions properly, there are two magnets on the back of the
drawer.
 Regularly check that the magnets are firmly attached.
Figure 5: GRANOLYSER drawer Figure 6: GRANOLYSER HL drawer
Item
Designation
1
Magnets
1
1
