4.2 Main Circuit

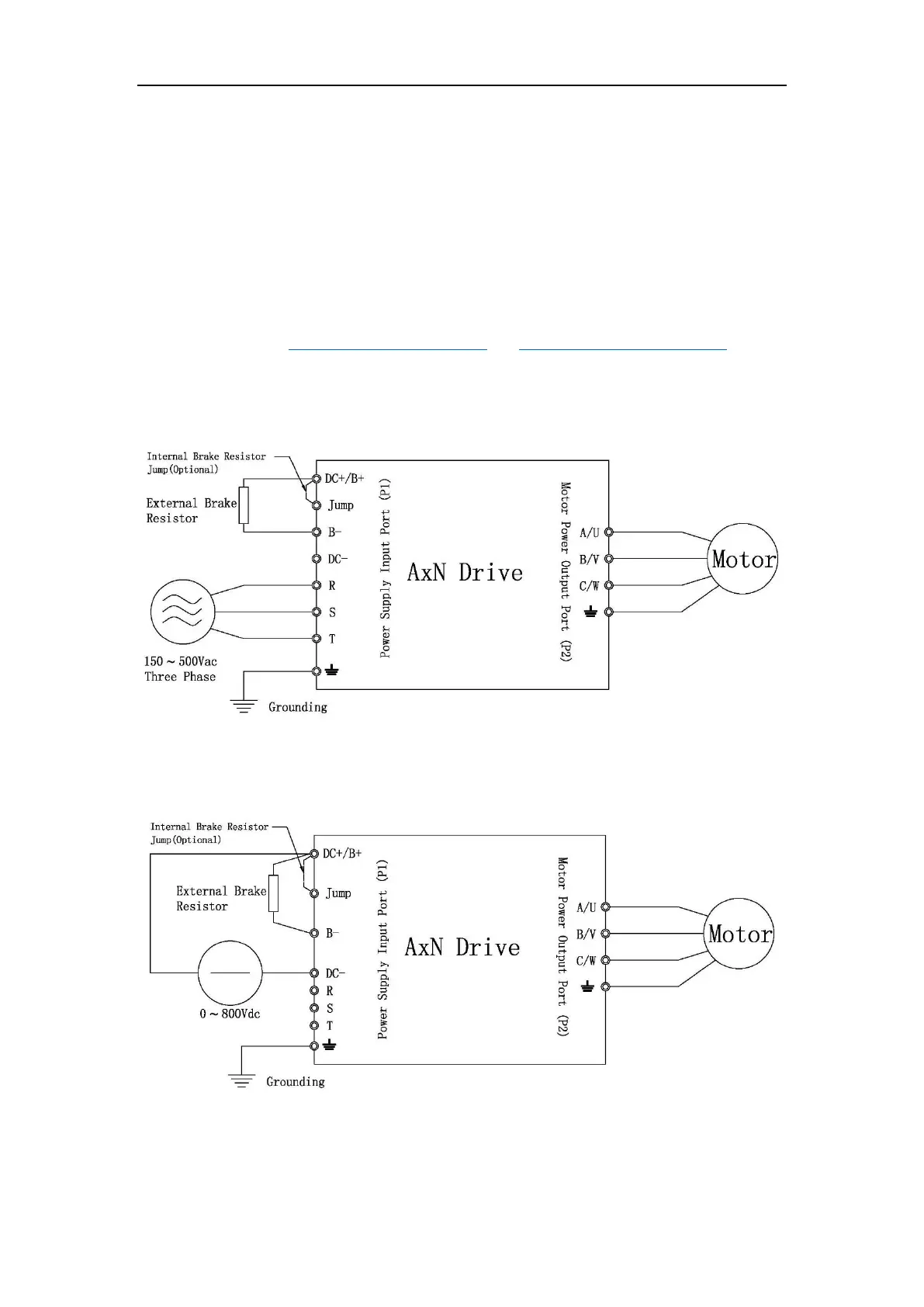

4.2.1 Main Circuit Connection Diagram
AxN 09.20.4 Drive can use AC power or DC power as its power supply. DO NOT USE BOTH AC power
supply and DC power supply AT THE SAME TIME! Refer to the following figures for standard drive
connection diagram.
NOTE: the input and output ports in the following figures do not represent the true location on
the drive, please refer 4.2.2 Power Supply Input Port and 4.2.6 Motor Power Output Port to know
more details.
AC Power Supply
Main Circuit Connection Diagram: AC Power
DC Power Supply
Main Circuit Connection Diagram: DC Power
