4.4.11 Auxiliary CAN
AxN 09.20.4 Drive supports CANOpen protocol and it has two independent CAN access. The
auxiliary CAN controller links to the S1 connector.

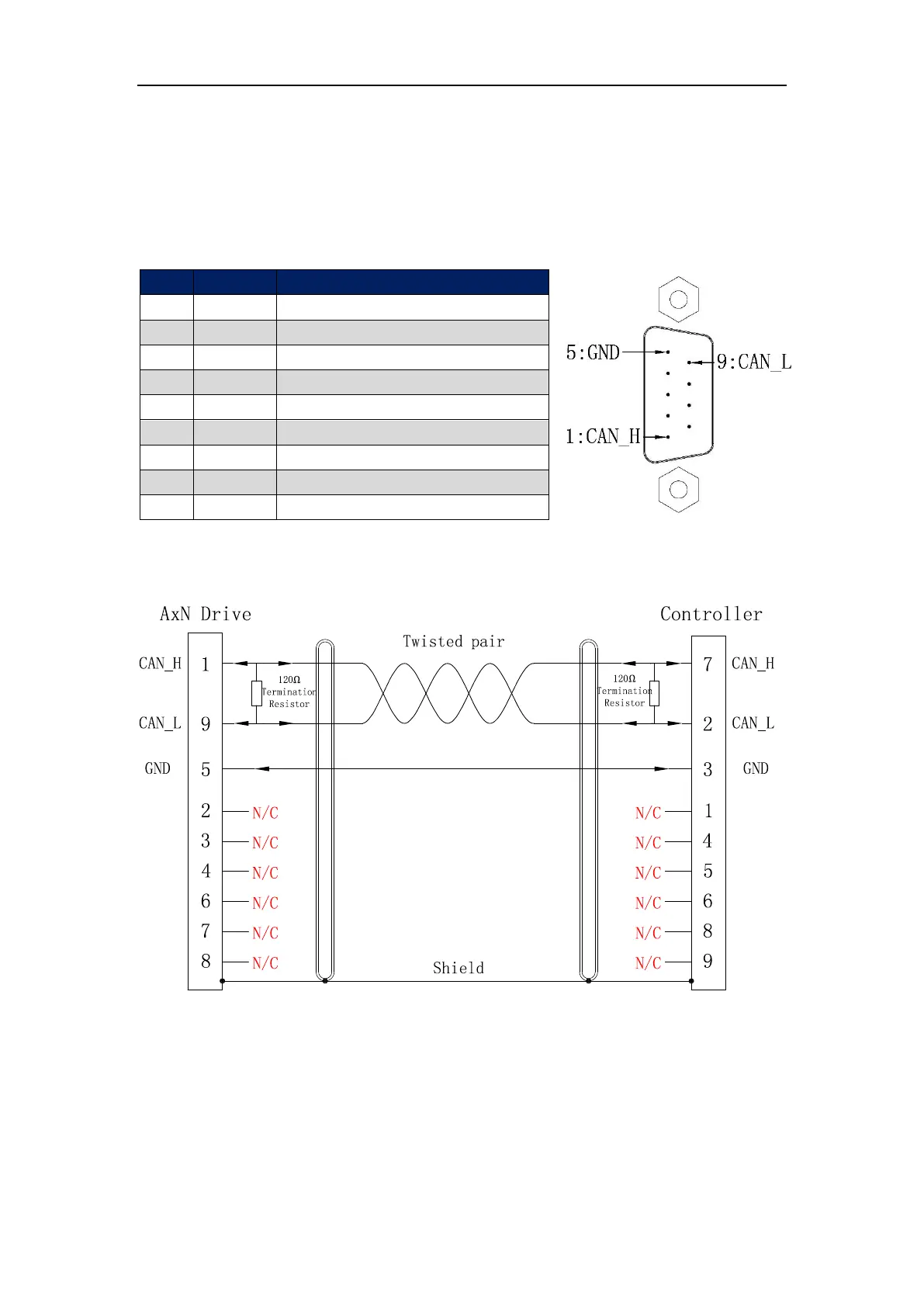

Pin Assignment
Pin
CANOpen
Function
1
CAN_H
CAN_H bus line (dominant high)
2
---
---
3
---
---
4
---
---
5
GND
Ground connection
6
---
---
7
---
---
8
---
---
9
CAN_L
CAN_L bus line (dominant low)
Note: CANOpen pin assignment on S1 connector does NOT meet CiA 102 Standard.
Connection Table
1) N/C——No Connection;
2) Connector back shell shielded 360°(Both ends);
3) ● means that the shield or cable should connect to connectors.
