Phase AxN - Hiperface Encoder

AxN Configurable Motion Control Platform
43
4.4.7 Hiperface Encoder
Pin Assignment
Pin
Name
Function
Signal Description
1
GND
Supply ground
Encoder ground
2
——
——
——
3
——
——
——
4
——
——
——
5
——
——
——
6
+Vcc
Encoder supply, 8Vdc
Positive supply voltage
7
COS+
Process data channel
TTL
8
KTY+
Thermal sensor positive
9
DATA-
RS-485 parameter channel
TTL
10
——
——
——
11
——
——
——
12
COS-
Process data channel
TTL
13
SIN-
Process data channel
TTL
14
DATA+
RS-485 parameter channel
TTL
15
SIN+
Process data channel
TTL

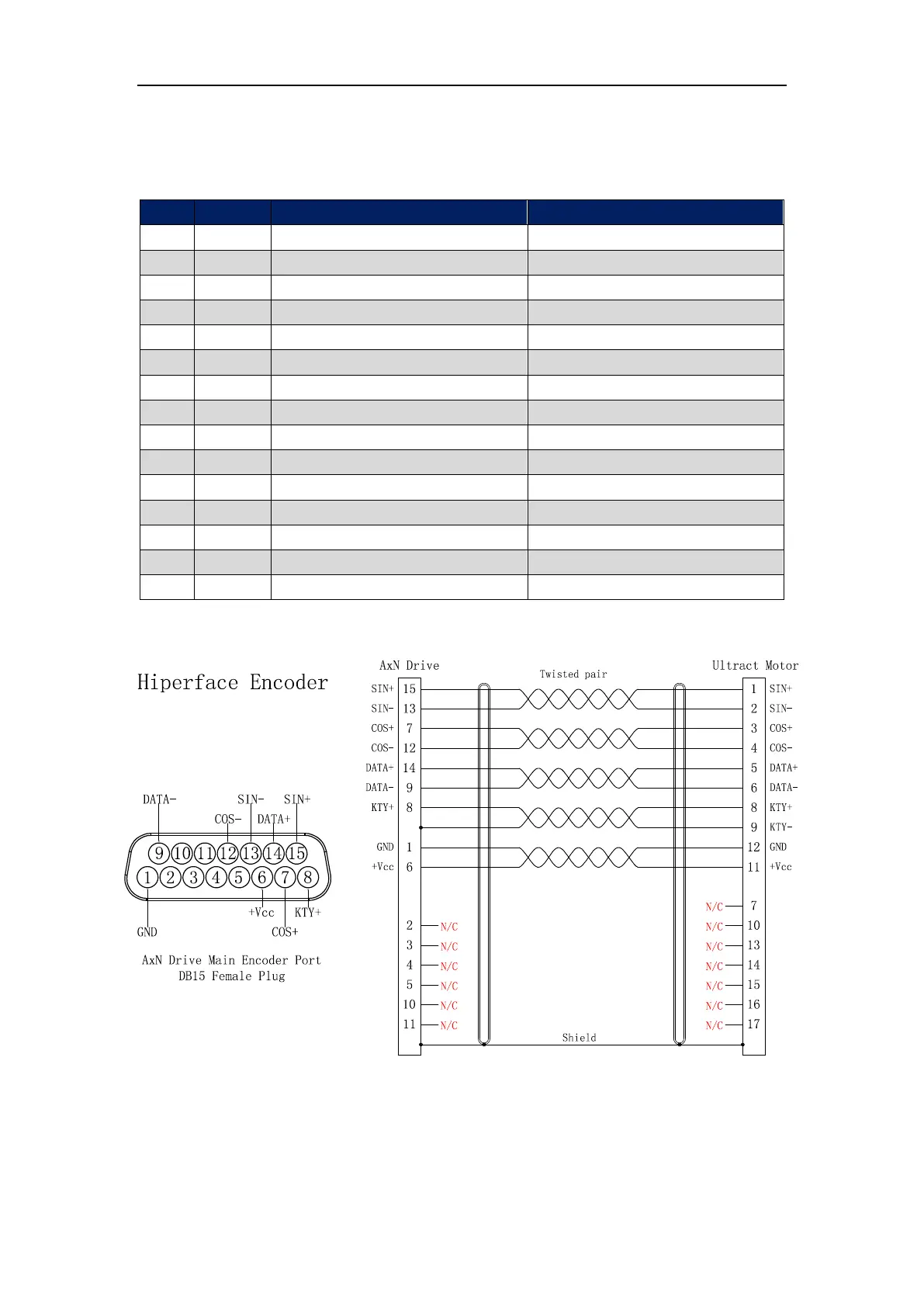

Connection Table (with Ultract Series Motors)
1) N/C——No Connection;
2) Connector back shell shielded 360°(Both ends);
3) ● means that the shield or cable should connect to connectors.
