Phase AxN - Resolver

AxN Configurable Motion Control Platform
42

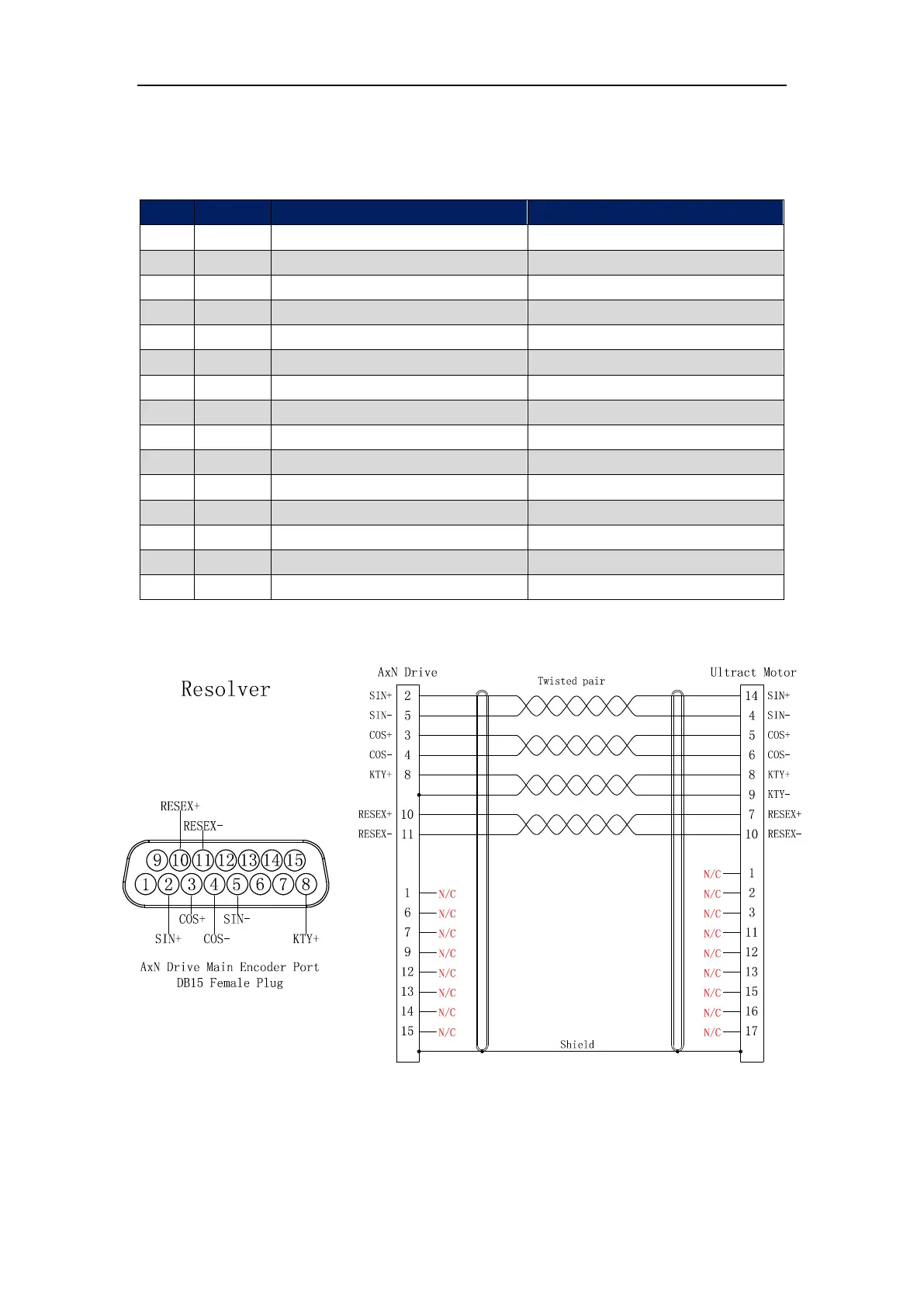

4.4.6 Resolver
Pin Assignment
Pin
Name
Function
Signal Description
1
——
——
——
2
SIN+
Absolute channel
Differential signal
3
COS+
Absolute channel
Differential signal
4
COS-
Absolute channel
Differential signal
5
SIN-
Absolute channel
Differential signal
6
——
——
——
7
——
——
——
8
KTY+
Thermal sensor positive
9
——
——
——
10
RESEX+
Resolver energising +
8kHz sinusoidal wave
11
RESEX-
Resolver energising -
8kHz sinusoidal wave
12
——
——
——
13
——
——
——
14
——
——
——
15
——
——
——
Connection Table (with Ultract Series Motors)
1) N/C——No Connection;
2) Connector back shell shielded 360°(Both ends);
3) ● means that the shield or cable should connect to connectors.
