Phase AxN - System Relay (R1)

AxN Configurable Motion Control Platform
35
4.3.3 System Relay (R1)
Port Location

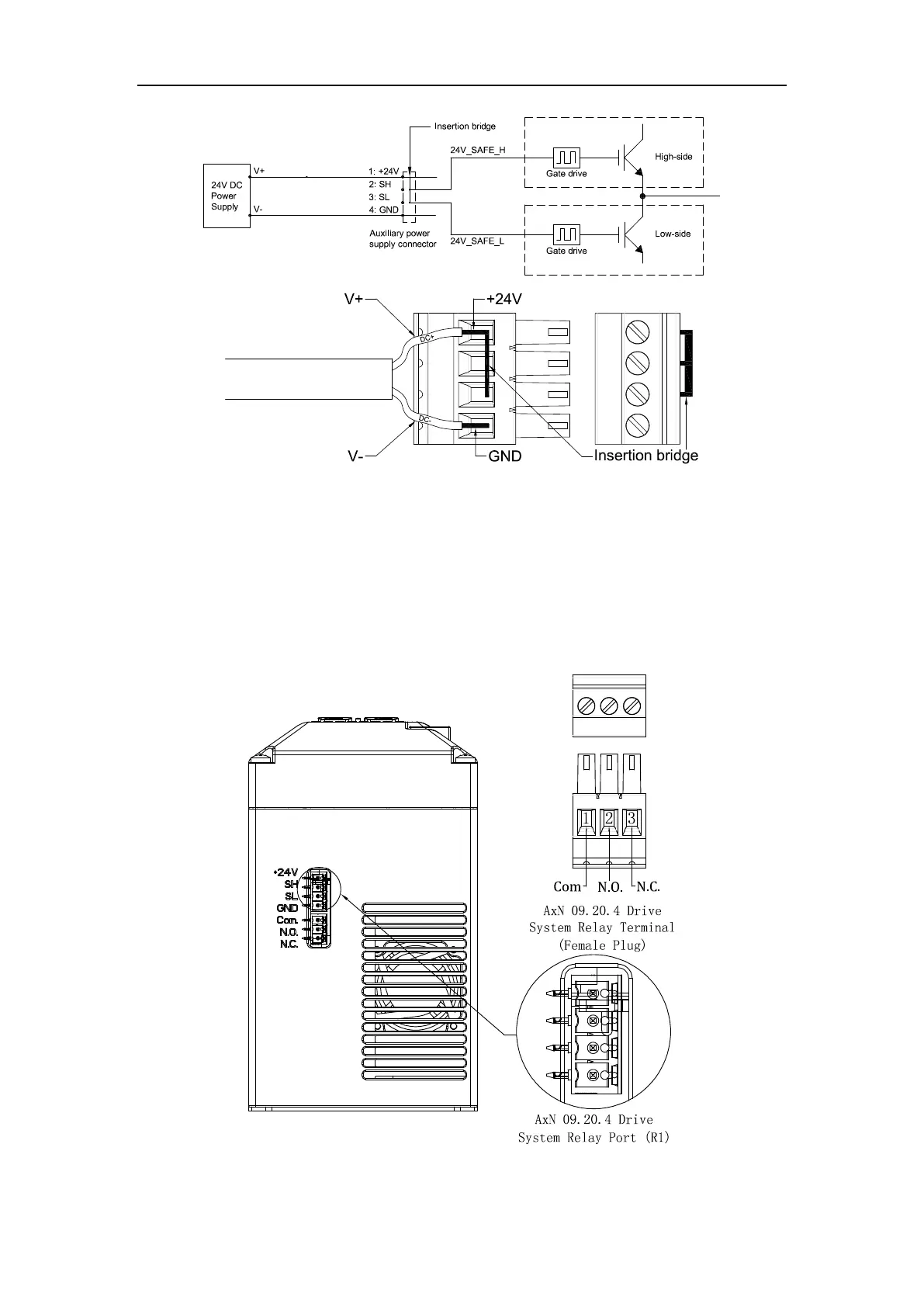

AxN 09.20.4 Drive’s System Relay Port (Female Plug, 3Pin) is on the top of the drive. And a
corresponding System Relay Terminal (Male Plug, 3Pin) is provided in the accessories. Refer to the
following figure for exact locations.
System Relay Port
