AxN Configurable Motion Control Platform
36
Terminal Configuration
Pin
Name
Function
Description
1
Com
Common relay contact
To be used as drive system OK signal
2
N.O.
Relay normally open contact
3
N.C.
Relay normally closed contact

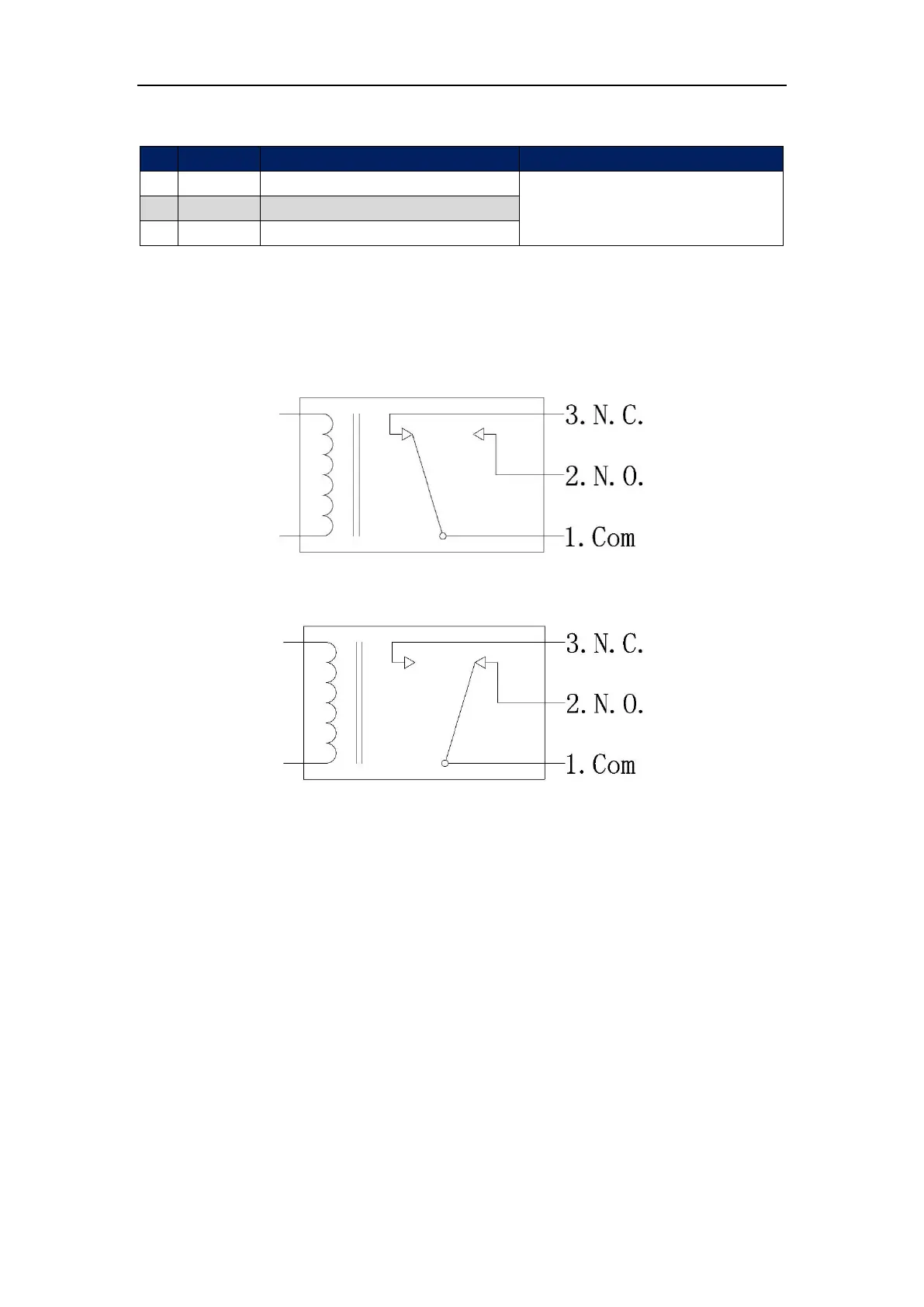

Diagram
AxN 09.20.4 Drive uses a relay to indicate the status. When Drive is power off or system is not ready,
the circuit is connected between N.C. (Normally Closed) and Com. In the meantime, the circuit is
disconnect between N.O. (Normally Open) and Com, illustrated as below.
System NOT Ready
When the drive is ready, N.O. connects Com and N.C. disconnects Com, illustrated as below.
System Ready
