Phase AxN - U1;U2-User Connectors

AxN Configurable Motion Control Platform
54
4.4.16 U1/U2——User Connectors
Port Location

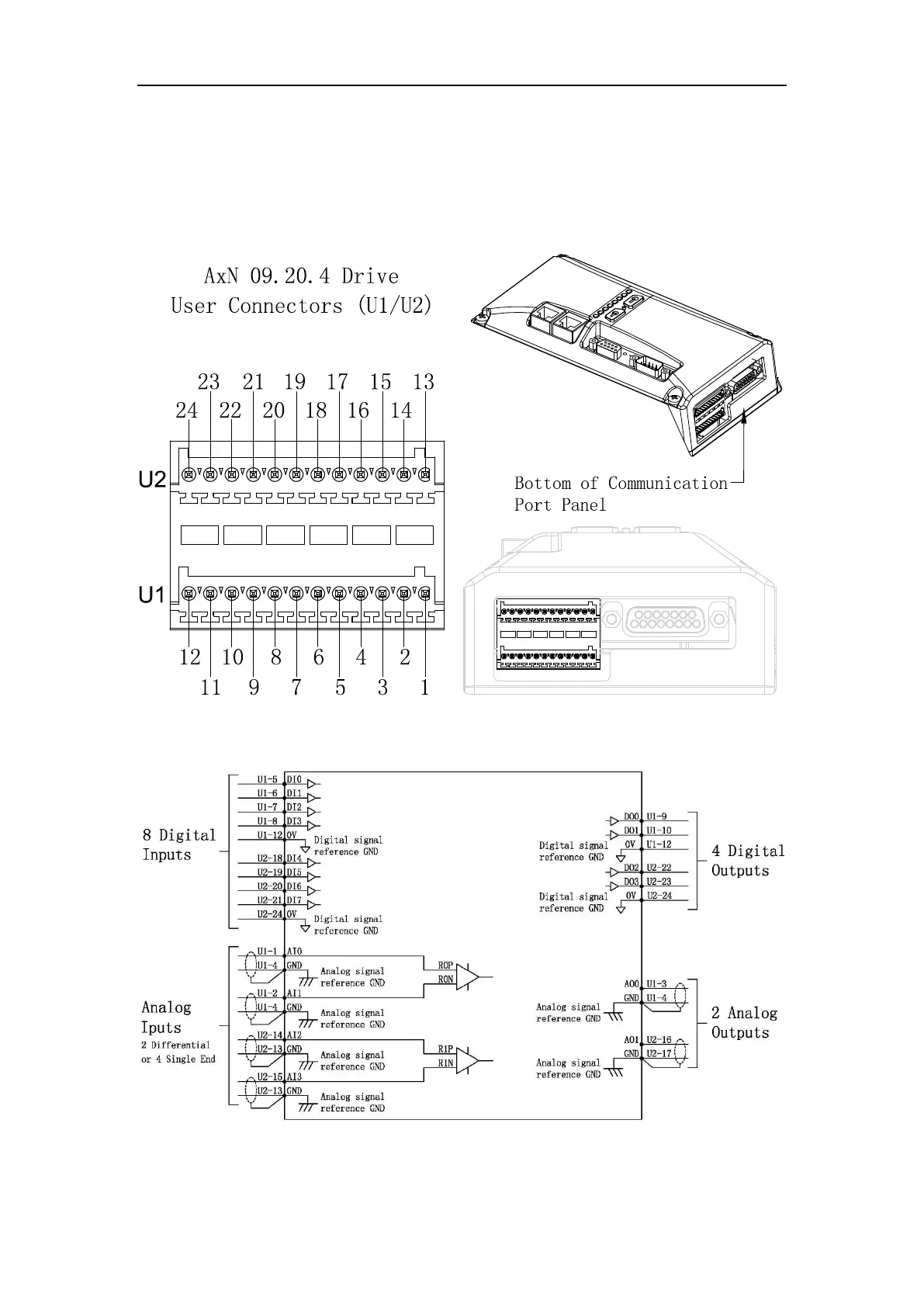

AxN 09.20.4 Drive’s User Connectors (Male Plug, 2 × 12 pin) are on the left bottom of the
Communication Port Panel. Refer to the following figure for exact location.
Diagram
NOTE: All analog signal reference GND are the same, and all digital signal reference GND are the
same.
