Phase AxN - Motor Power Output Port (P2)

AxN Configurable Motion Control Platform
30
External Brake Resistor Installation
4.2.6 Motor Power Output Port (P2)
AxN 09.20.4 Drive’s Motor Power Output Port (P2) has one function: output power to the motor.
Port Location

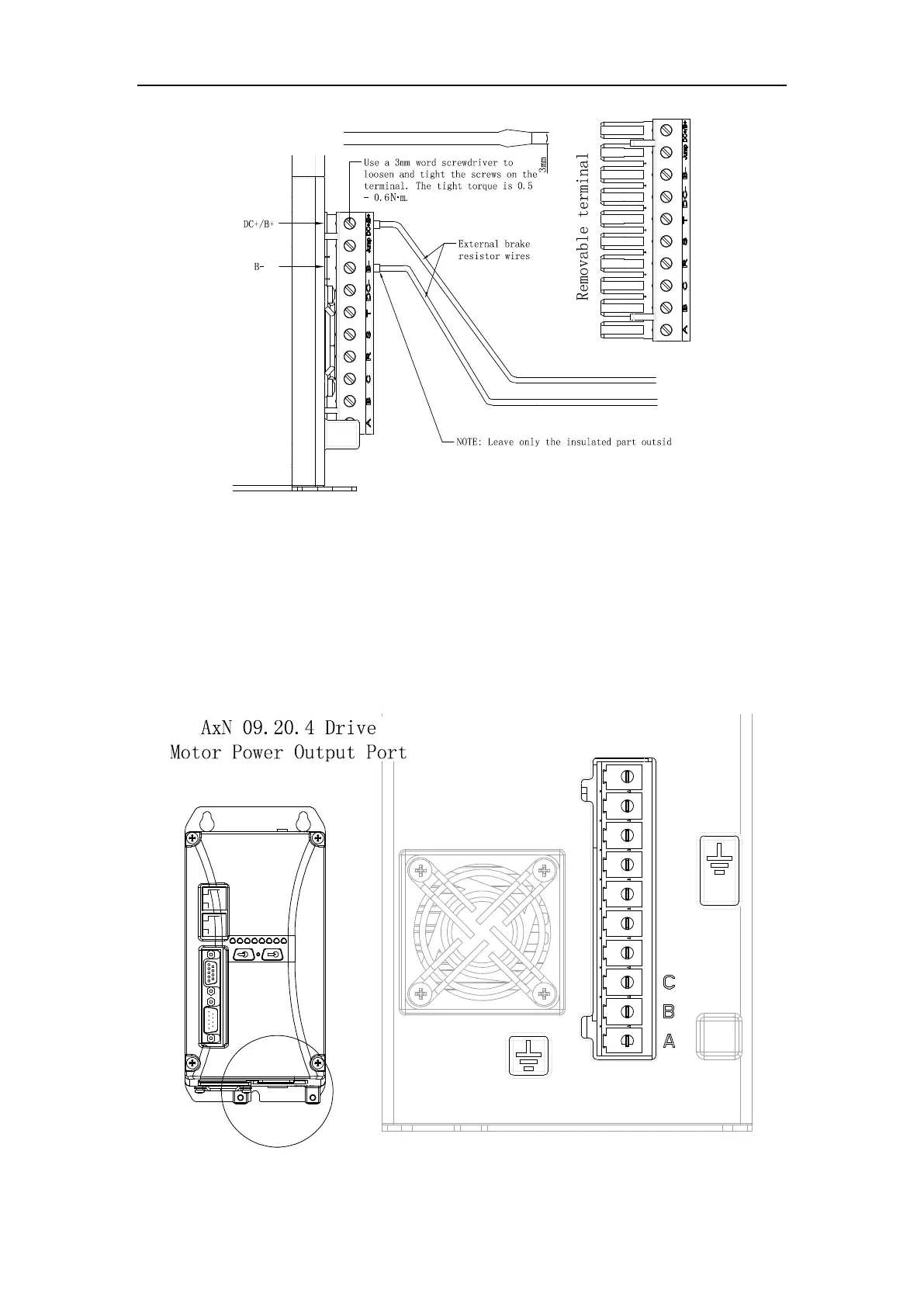

AxN 09.20.4 Drive’s Motor Power Output Port (P2) is on the bottom of the drive. Refer to the
following figure for exact locations.
Motor Power Output Port
