4.2.2 Power Supply Input Port (P1)
AxN 09.20.4 Drive’s Power Supply Input Port (P1) has 4 functions: AC Power Supply Input, DC
Power Supply Input, External Brake Resistor Connection and Internal Brake Resistor Activation.
Port Location

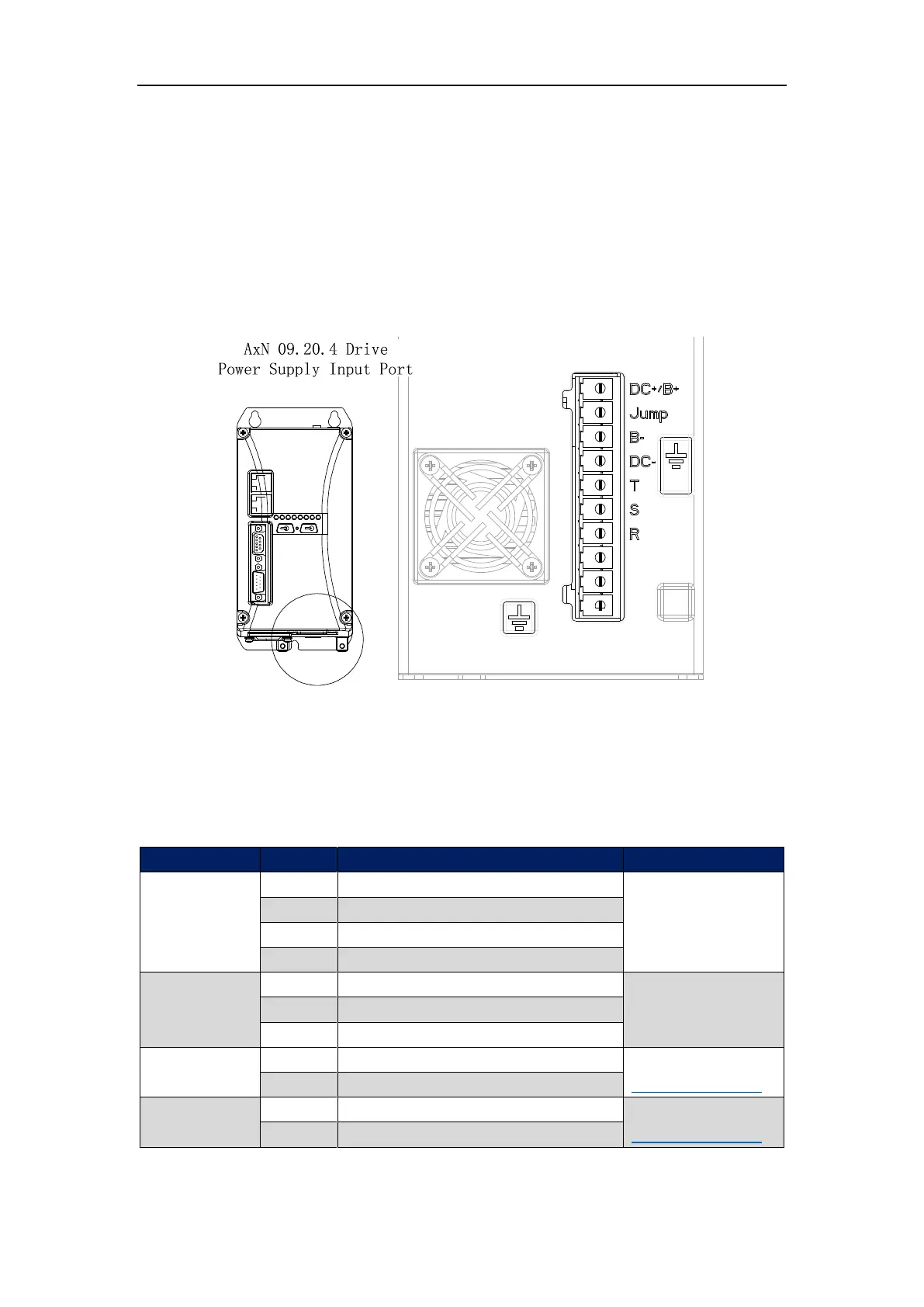

AxN 09.20.4 Drive’s Power Supply Input Port (P1) is on the bottom of the drive. Refer to the
following figure for exact locations.
Power Supply Input Port
Terminal Configuration
AxN 09.20.4 Drive’s Power Supply Input Port (P1) has 8 terminals: PE, R, S, T, DC-, B-, Jump and
DC+/B+ (the PE terminal is a shared PE terminal). And the P1 port has different functions by using
different combinations of terminals. Refer to following table for more details:
Function
Terminal
Definition
Description
AC Power
Supply Input
T
Three phase AC power supply: phase
150 ~ 500 Vac three
phase AC power
supply
S
Three phase AC power supply: phase
R
Three phase AC power supply: phase
PE
Three phase AC power supply: grounding
DC Power
Supply Input
DC+/B+
DC power supply: positive (+)
0 ~ 800 Vdc DC
power supply
DC-
DC power supply: negative (-)
PE
DC power supply: grounding
External Brake
Resistor
DC+/B+
External brake resistor: positive (+)
More details refer to
4.2.5 Brake Resistor
B-
External brake resistor: negative (-)
Internal Brake
Resistor
DC+/B+
Internal brake resistor: positive (+)
More details refer to
4.2.5 Brake Resistor
Jump
Internal brake resistor: negative (-)
