4.3 Control Circuit
4.3.1 Auxiliary Power Supply (AUX Power)
Auxiliary Power Supply Requirement
Main Supply
AxN 09.20.4
Voltage
24V
Type
DC power
Fluctuation of Voltage
±15% (22.8 ~ 25.2V)
Nominal Power
48W
Nominal Current
2A
Port Location

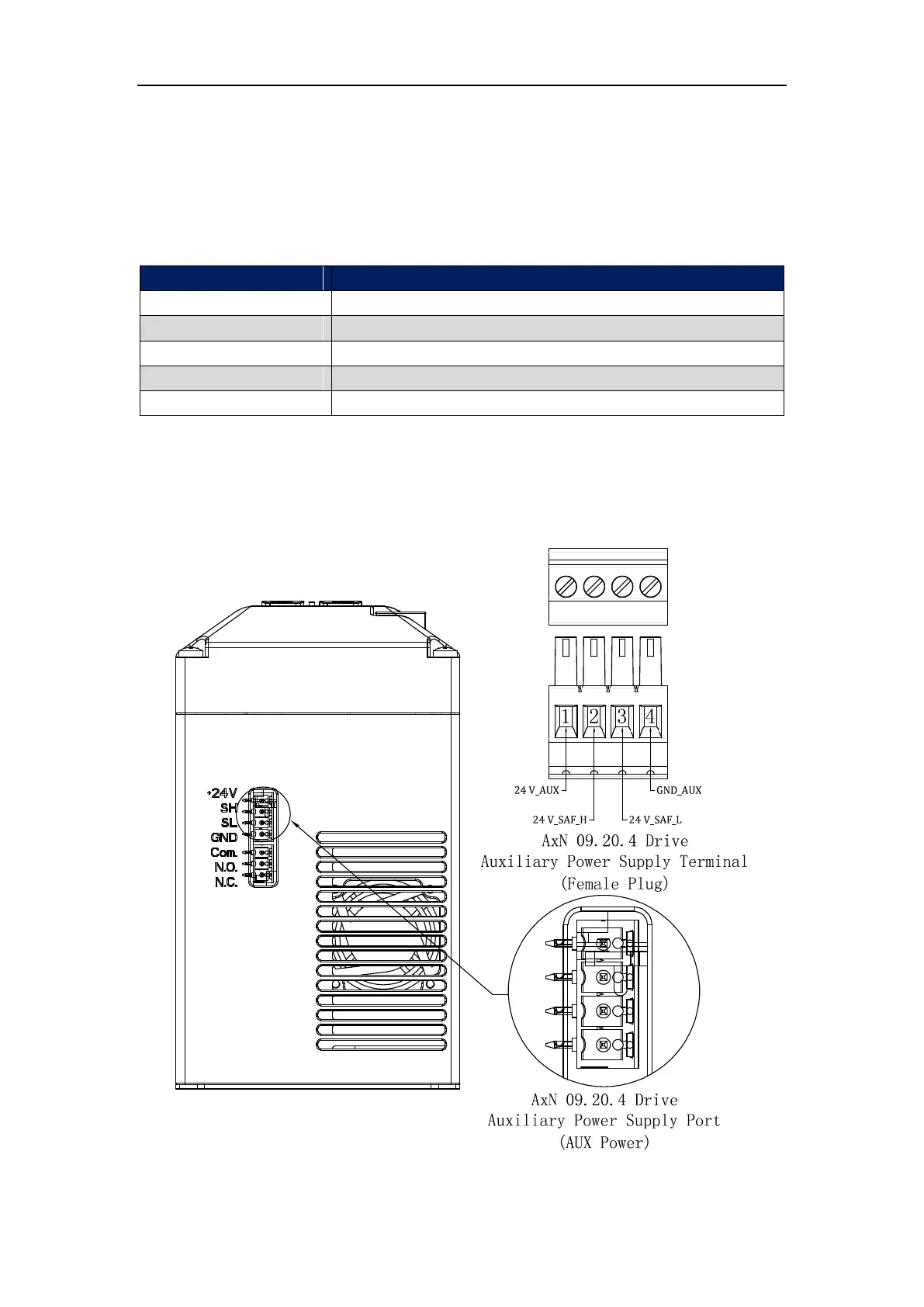

AxN 09.20.4 Drive’s Auxiliary Power Supply Port (Female Plug, 4Pin) is on the top of the drive. And
a corresponding Auxiliary Power Supply Terminal (Male Plug, 4Pin) is provided in the accessories.
Refer to the following figure for exact locations.
Auxiliary Power Supply Port
