AxN Configurable Motion Control Platform
46
Maximal "7-wire" Connection
When the controller has full facilities of RS-232, "7-wire" connection is the maximal connection
which AxN 09.20.4 drive can support.
NOTE: Do NOT use "9-wire" connection, AxN 09.20.4 drive does not support DCD and RI function.

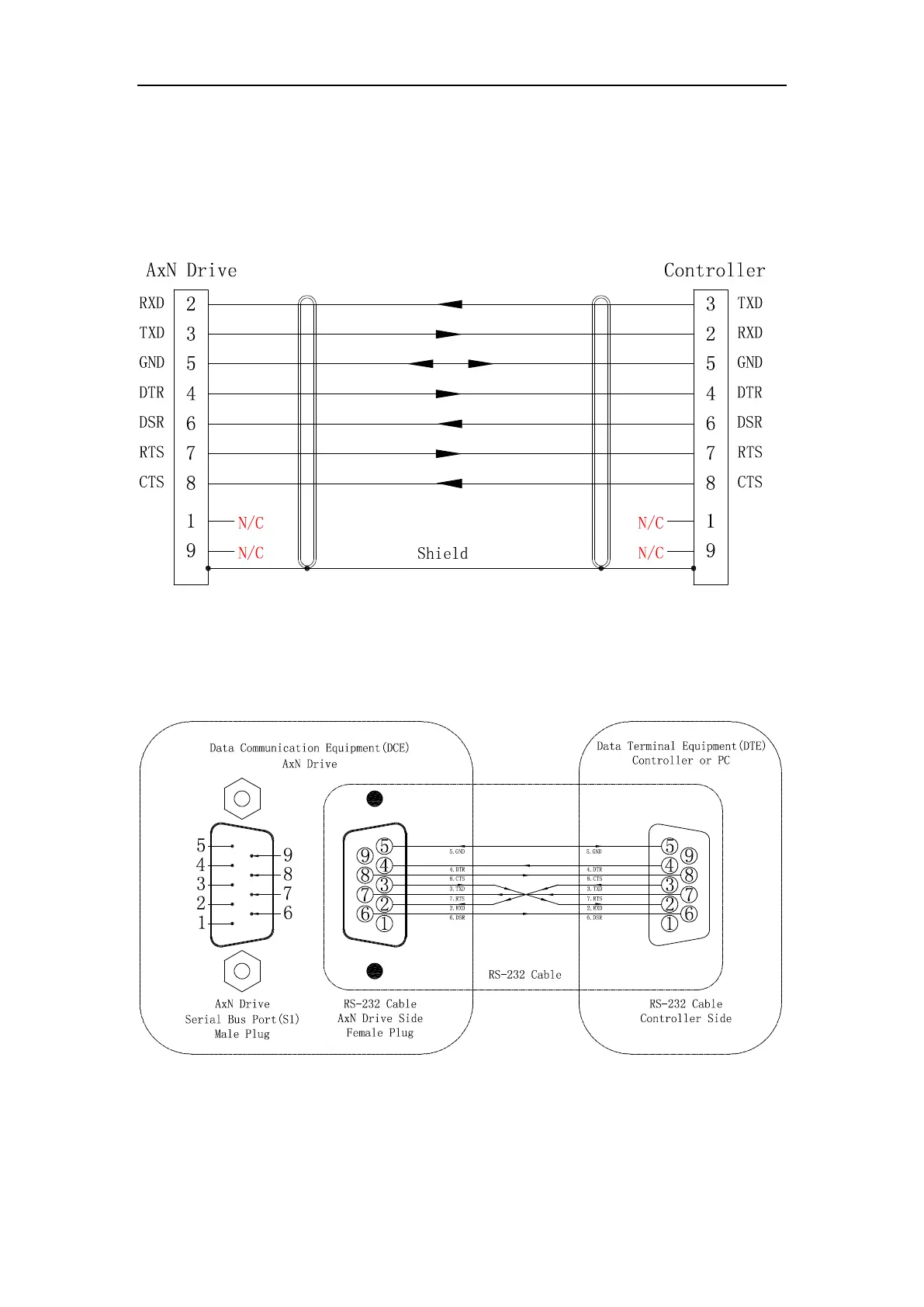

Connection table
1) N/C——No Connection;
2) Connector back shell shielded 360°(Both ends);
3) ● means that the shield or cable should connect to connectors.
Connection diagram
To Next Page
