AxN Configurable Motion Control Platform
51

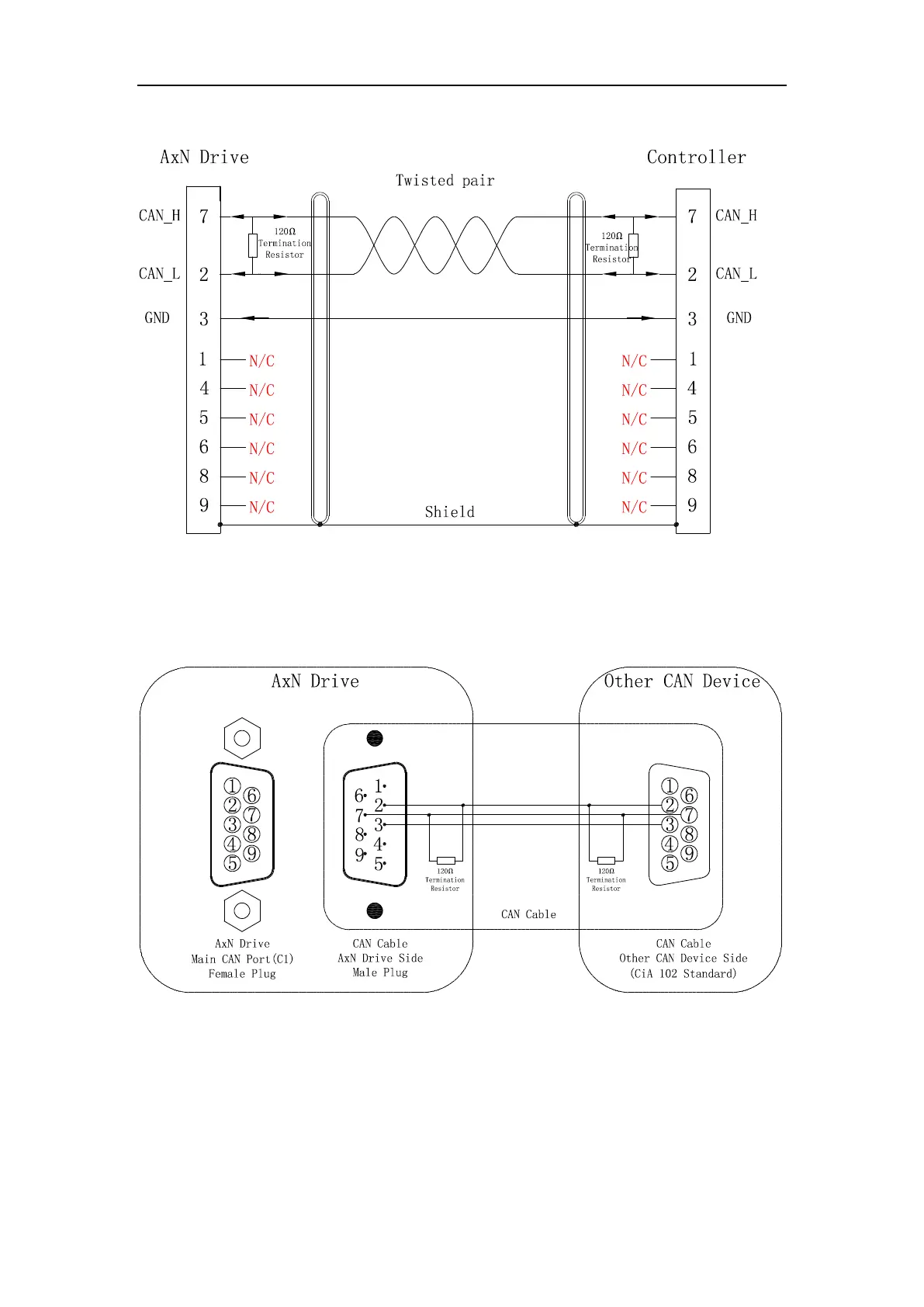

Connection Table
1) N/C——No Connection;
2) Connector back shell shielded 360°(Both ends);
3) ● means that the shield or cable should connect to connectors.
Connection diagram
Note: Only the first and the last CAN node device should use a 120Ω terminal resistor.
