Philips JL2.1E - Service Position

Mechanical Instructions
EN 10 JL2.1E AA4.
4.2 Service Position
For easy servicing of this set, there are a few possibilities
created:
• The buffers from the packaging.
• Foam bars (created for Service).
• Aluminium service stands (created for Service).
4.2.1 Foam Bars

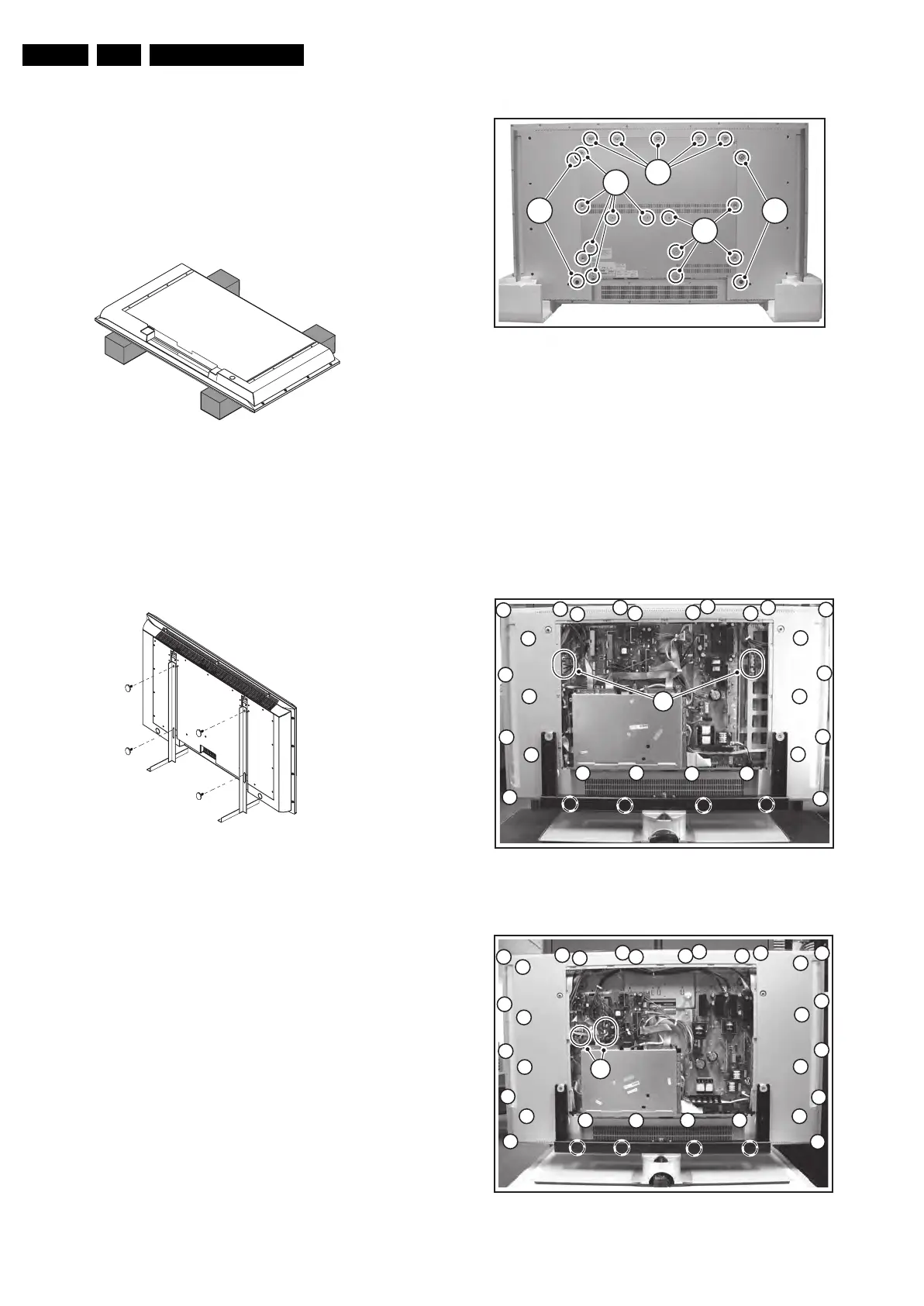

Figure 4-3 Foam bars
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By laying the TV
face down on the (ESD protective) foam bars, a stable situation
is created to perform measurements and alignments.
By placing a mirror under the TV, you can monitor the screen.
4.2.2 Aluminium Stands
Figure 4-4 Aluminium stands (Mk1)
The new (Mk2) aluminium stands (order code 3122 785 90690)
can also be used to do measurements, alignments, and
duration tests. The stands can be (dis)mounted quick and easy
by means of sliding them in/out the "mushrooms".
Important: For (older) FTV sets without these "mushrooms", it
is obligatory to use the provided screws, otherwise it is possible
to damage the monitor inside!.
4.3 Assy/PWB (Dis)Assembly
4.3.1 Metal Back Plate
Caution: Disconnect the mains power cord before you remove
the metal back plate.
Figure 4-5 Metal back plate
1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the LCD display, but let
the monitor lean on the speakers or the Front cover.
2. Remove all T10 parker screws (1) from the top, left, and
right side of the metal back plate.
3. Remove all T10 tapping screws (2) from the centre and
bottom side of the metal back plate.
4. Lift the plate from the set. (it hinges at the bottom side).
4.3.2 Rear Cover
Figure 4-6 Rear cover (32” model)
Figure 4-7 Rear cover (37” and 42” models)
