Philips JL2.1E - Mechanical Instructions; Assembly and Disassembly

Mechanical Instructions
EN 9JL2.1E AA 4.
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Position
4.3 Assy/PWB (Dis)Assembly
4.4 Display Disassembly
4.5 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different model executions.
• Follow the disassemble instructions in described order.
• For “simple” actions, the descriptions will be only textual,
where the more complicated ones will be clarified with
figures.
4.1 Cable Dressing
4.1.1 Chassis

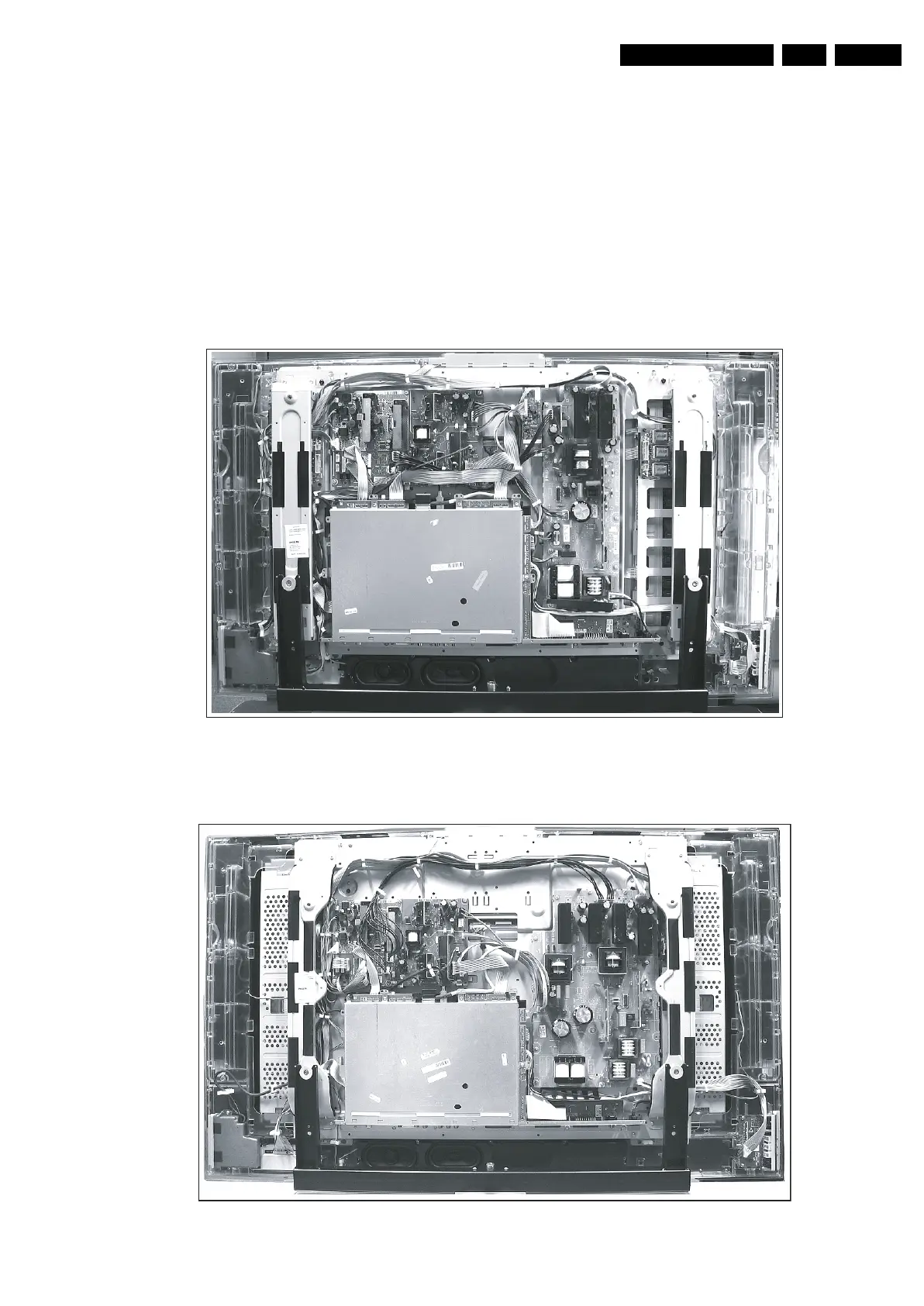

Figure 4-1 Chassis cable dressing (32” model)
Figure 4-2 Chassis cable dressing (37” and 42” models)
F_15710_160.eps
190905
F_15710_146.eps
210905
