Philips JL2.1E - Connections

Technical Specifications, Connections, and Chassis Overview
EN 3JL2.1E AA 1.
1.2 Connections

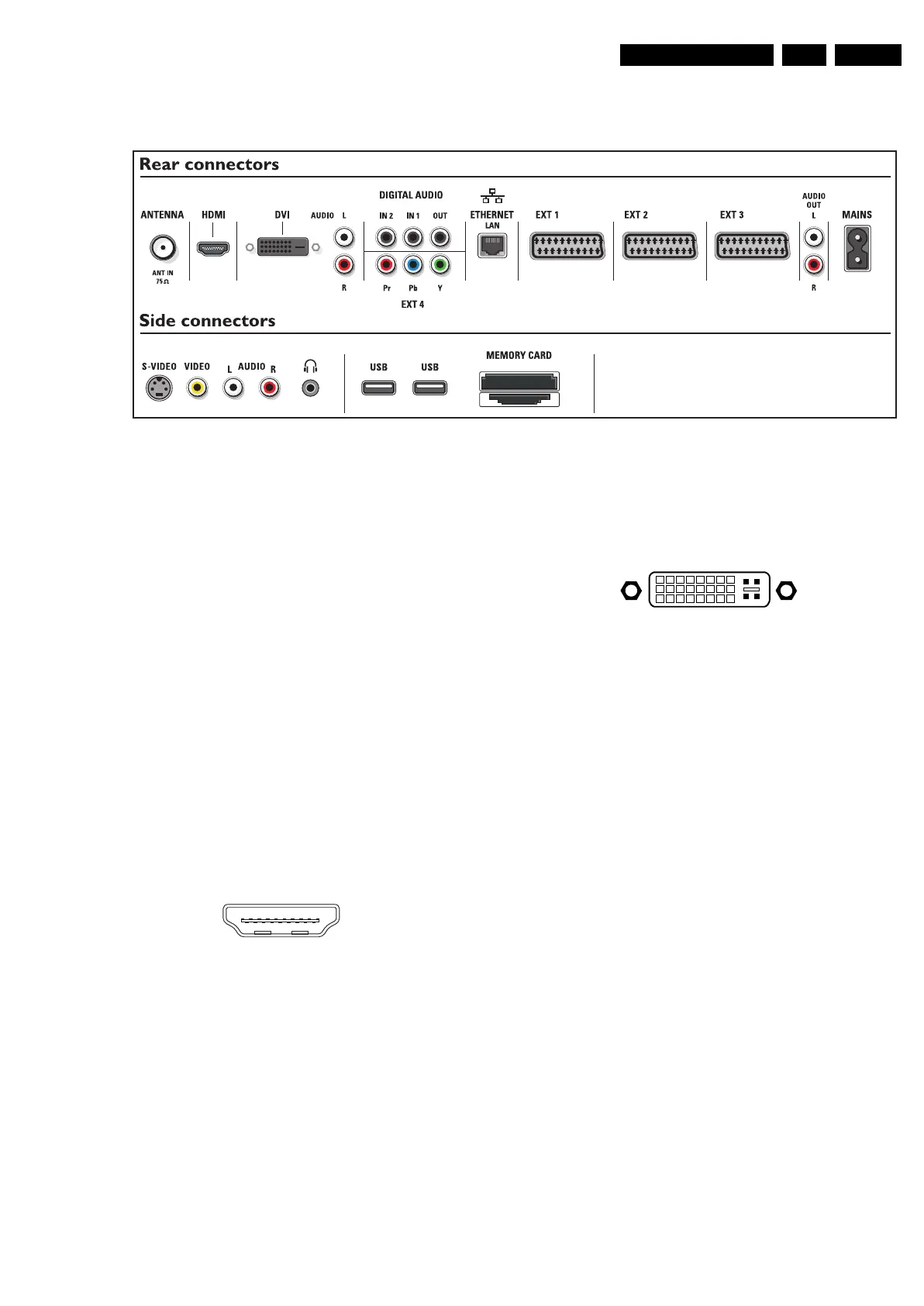

Figure 1-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Side Connections
Headphone (Output)
Bk - Headphone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye -Video CVBS 1 V
PP
/ 75 ohm jq
SVHS (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
1.2.2 Rear Connections
Aerial - In
- IEC-type Coax, 75 ohm D
HDMI 1 & 2: Digital Video, Digital Audio - In
Figure 1-2 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
DVI-I: Digital/Analogue Video - In
Figure 1-3 DVI-I connector
1-D2- j
2-D2+ j
3 - Shield Gnd H
4-D4- j
5-D4+ j
6 - DDC_SCL DDC clock k
7 - DDC_SDA DDC data jk
8 - V-sync 0 - 5 V j
9-D1- j
10 - D1+ j
11 - Shield Gnd H
12 - D3- j
13 - D3+ j
14 - +5V j
15 - Ground Gnd H
16 - HPD Hot Plug Detect j
17 - D0- j
18 - D0+ j
19 - Shield Gnd H
20 - D5- j
21 - D5+ j
22 - Shield Gnd H
23 - CLK+ j
24 - CLK- j
C1 - Video Red 0.7 V
PP
/ 75 ohm j
C2 - Video Green 0.7 V
PP
/ 75 ohm j
C3 - Video Blue 0.7 V
PP
/ 75 ohm j
C4 - H-sync 0 - 5 V j
C5 - Ground Gnd H
Cinch: DVI Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
Digital Audio: S/PDIF - In/Out
Bk - Coaxial 0.2 - 0.6V
PP
/ 75 ohm jq
