Philips JL2.1E - Chassis Overview

Technical Specifications, Connections, and Chassis Overview
EN 5JL2.1E AA 1.
1.3 Chassis Overview

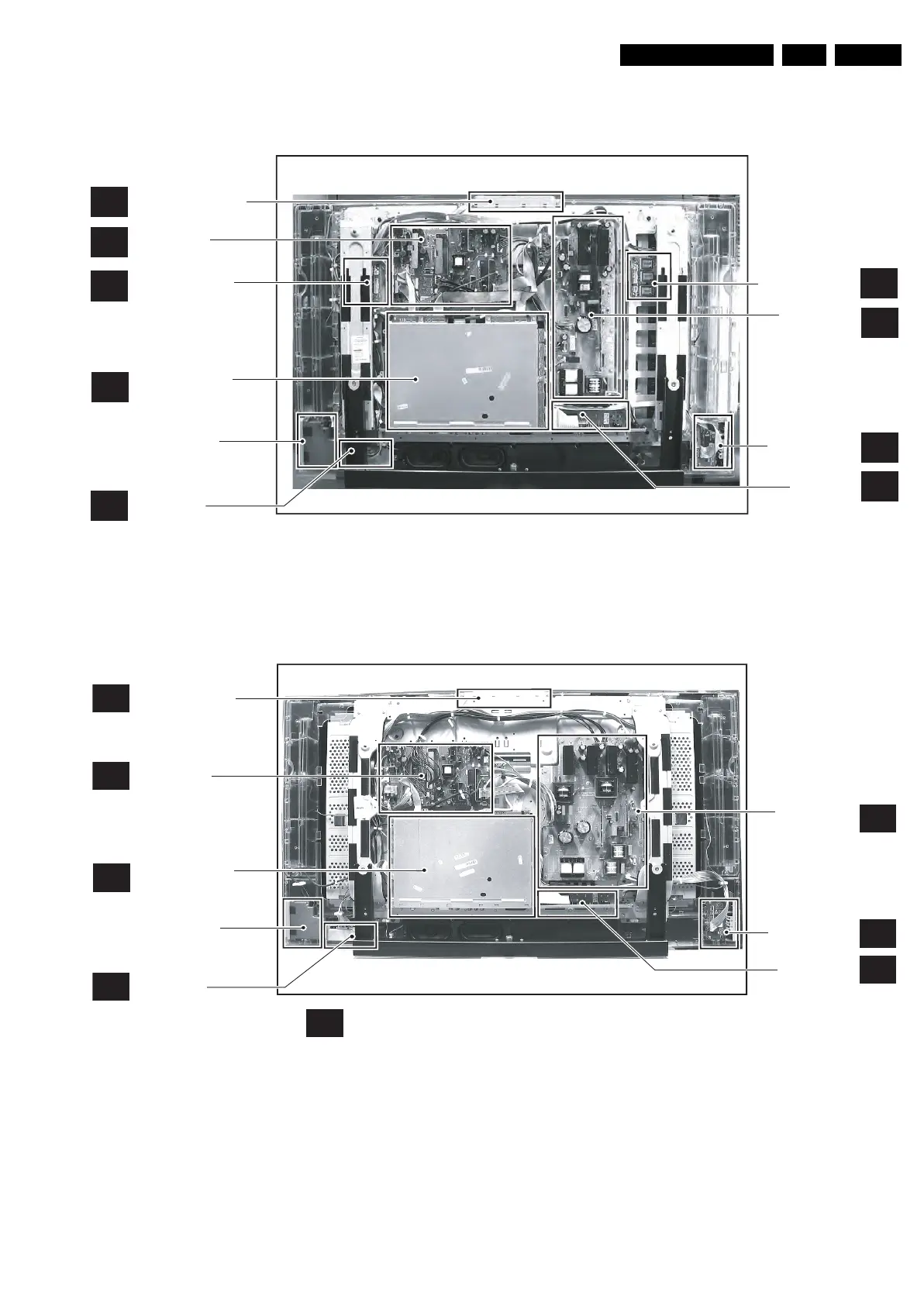

Figure 1-6 PWB locations (32” model)
Figure 1-7 PWB locations (37” and 42” models)
F_15710_176.eps
260905
SA
STANDBY /
AUDIO PANEL
E
CONTROL PANEL
MULTIMEDIA
CARD READER
B
SMALL SIGNAL
BOARD
J
LED PANEL
D
SIDE I/O PANEL
H
EXTERNAL
I/O PANEL
A
LCD SUPPLY
PANEL
AL
AMBILIGHT
INVERTER PANEL
AL
AMBILIGHT
INVERTER PANEL
F_15710_175.eps
260905
SA
STANDBY /
AUDIO PANEL
E
AL
CONTROL PANEL
AMBILIGHT INVERTER PANELS : These are located in the rear cover.
MULTIMEDIA
CARD READER
B
SMALL SIGNAL
BOARD
J
LED PANEL
D
SIDE I/O PANEL
H
EXTERNAL
I/O PANEL
A
LCD SUPPLY
PANEL
