Installing the Tilt/Swivel Mount (M3080A #A14)
104
Installin
the Instrument
Attached to a Universal Pole Clamp
This option is used to attach the Tilt/Swivel mount to a Universal Pole clamp. The Monitor
can then be mounted on a pole or rail and can provide tilt and swivel capability.
Step 1 Unpack the Tilt/Swivel mount and check all parts are available.
Step 2 Remove the adapter plate (this is only necessary for the GCX Wall Channel).
Step 3 Secure the rail to the Tilt/Swivel mount with the 2 screws provided.
Step 4 Decide whether the tilt/swivel mounting is to be secured for vertical positioning (on
a pole) or for horizontal positioning (on a rail).
Step 5 Secure the pole clamp to the tilt/swivel mounting with the two screws provided.
Step 6 Tighten the screws.
Step 7 Attach the clamp to a pole or rail.
Step 8 Use adjustment knobs to adjust to the required tilt/swivel angle.

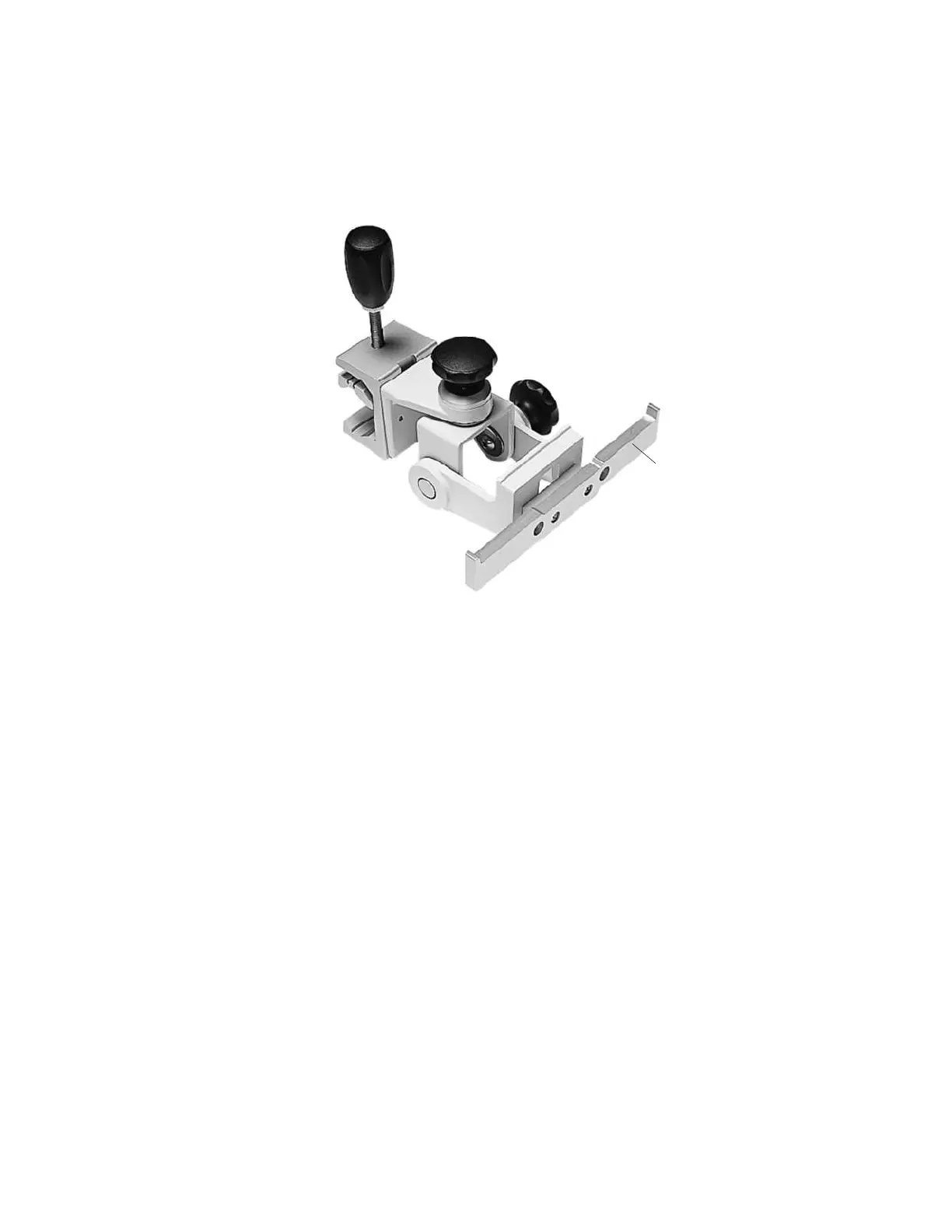

Hang the bed hanger over the rail.
Rail
