Philips Optimus - Test 2: Activation Sequence of the Gates: Inputs Only

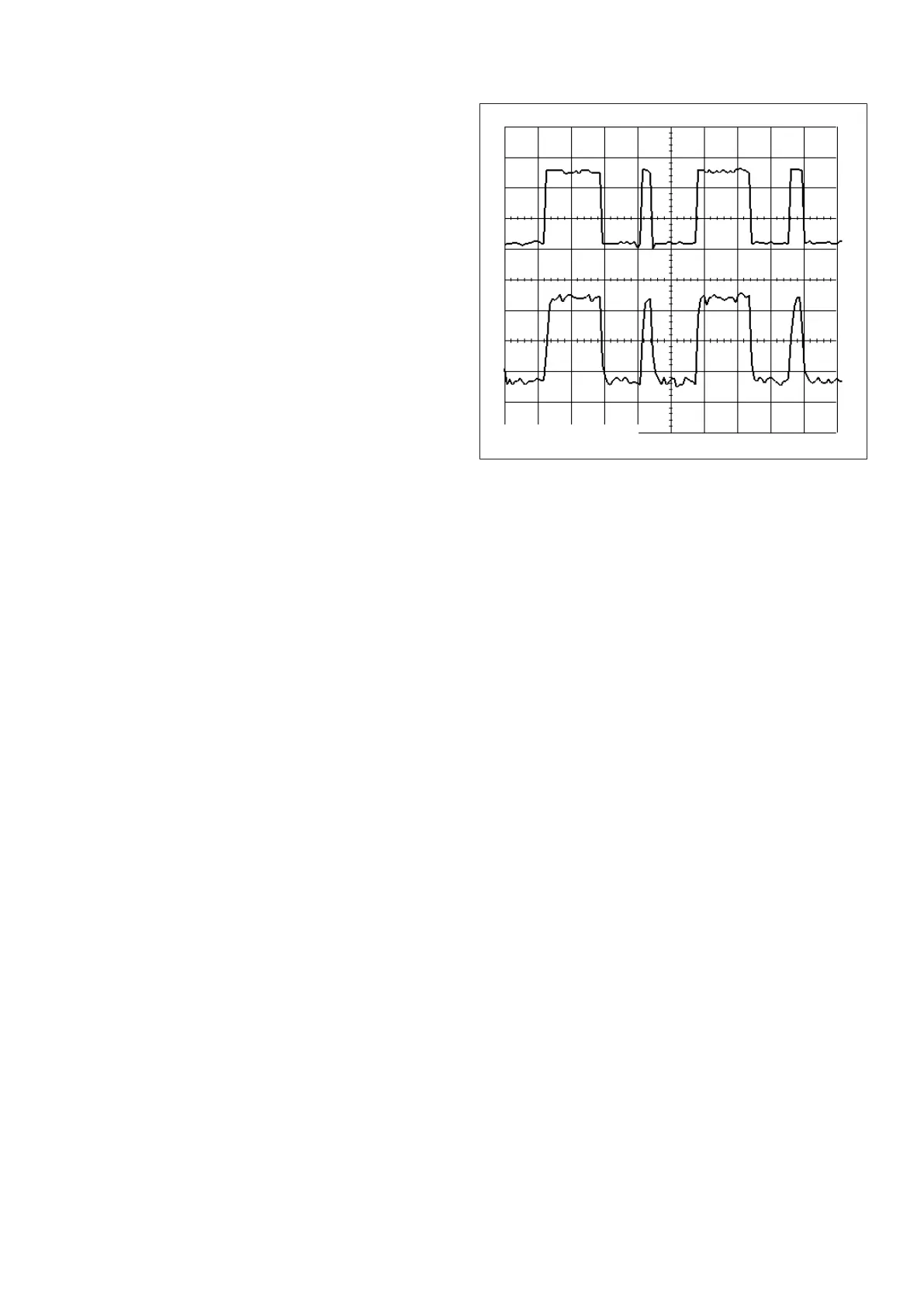

The wave form of the oscilloscope screen shot de‐
pends on the resolution of the oscilloscope.
A
B
Test 1 : input optical coupler X6 ... X9
Gate X100 ... X400
(Fig. 7)
Test 2: Activation sequence of the gates: Inputs only
Test 2: inputs only:
▪ Check if the signal pattern of all 4 control signals look the same as on the diagram. Of course, only 2 channels
can be seen at the same time, but the ”ONs” and ”OFFs” must be equal to the drawing.
