3.5.6.I.
Technical data
Attenuation
Input resistance
Input
capacitance
Max. allowable
voltage
DC or
AC
rnfis
Continuous
Under
pulsed
conditions
Sine
wave continuous
1
:
100
±2
%
20 MOhm
±3
%
2pF±0.3pF
2
kV
2kV
3kV
4kV
5,6
kVp.p
I
Duty cycle 50
-
100 %
dv/dt< 1000
V/ns
Pulse
rep.
frequency < 1
MHz
Duty cycle 25
-
50
%
dv/dt < 500 V/ns
Pulse rep.
frequency
< 1 MHz
Max. pulse
duration
100 ms
Duty cycle 0
-
25
%
dv/dt <200
V/ns
Pulse
rep.
frequency
< 1
MHz
Max. pulse duration
20 ms
For
frequencies up to
1 MHz
3.5.6.2.
Adjustment
The measuring
probe
has
been adjusted and
checked by the factory.
However, to
match the probe
to
your
oscilloscope,
the following manipulation
is necessary. Connect
the measuring
pin to socket CAL
of the
oscilloscope. A
trimmer can
be
adjusted
through
a
hole
in the
compensation
box
to
obtain optimum
square-
wave response.
See the
following examples.
over
under
compensated
correct
compensated

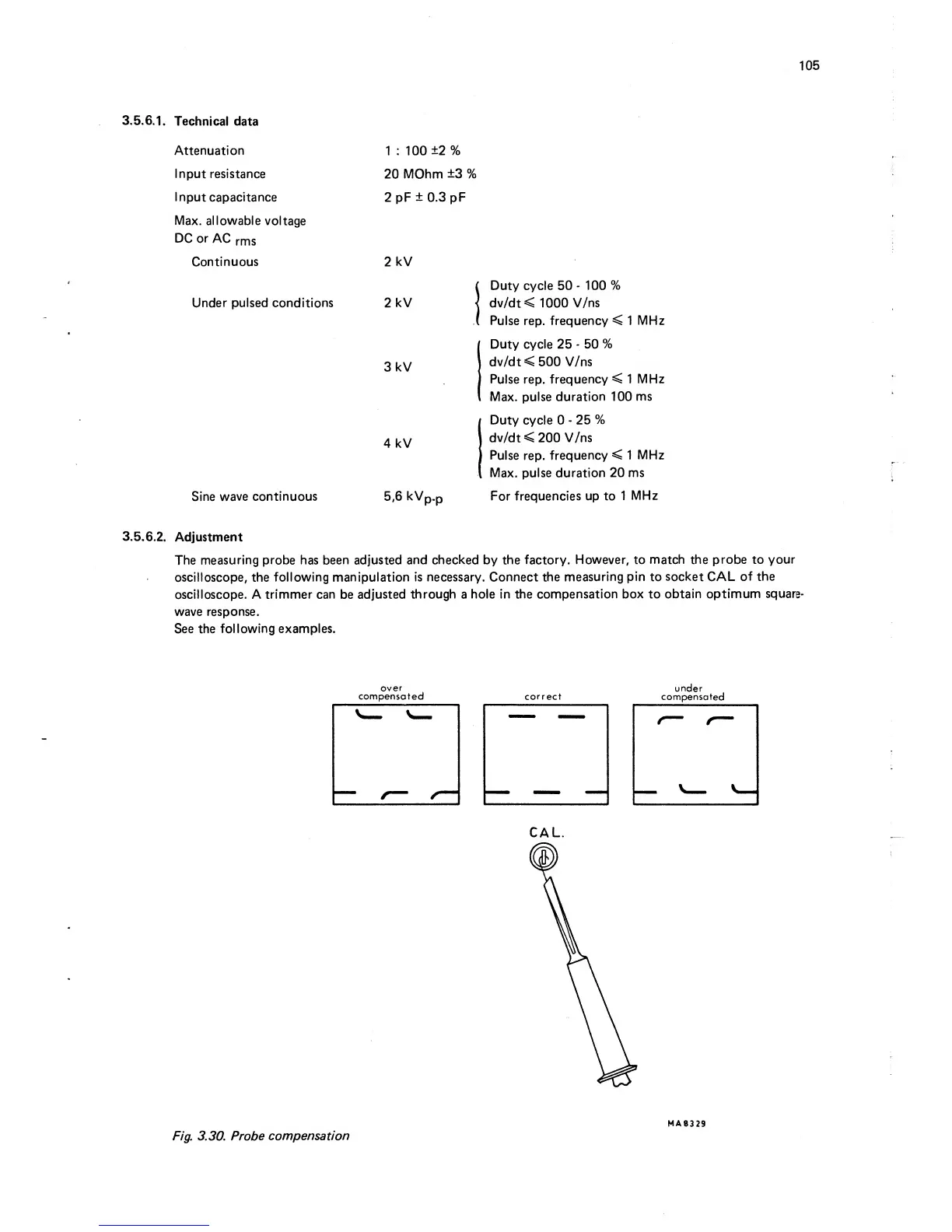

Fig.
3.30.
Probe
compensation
MAe329
